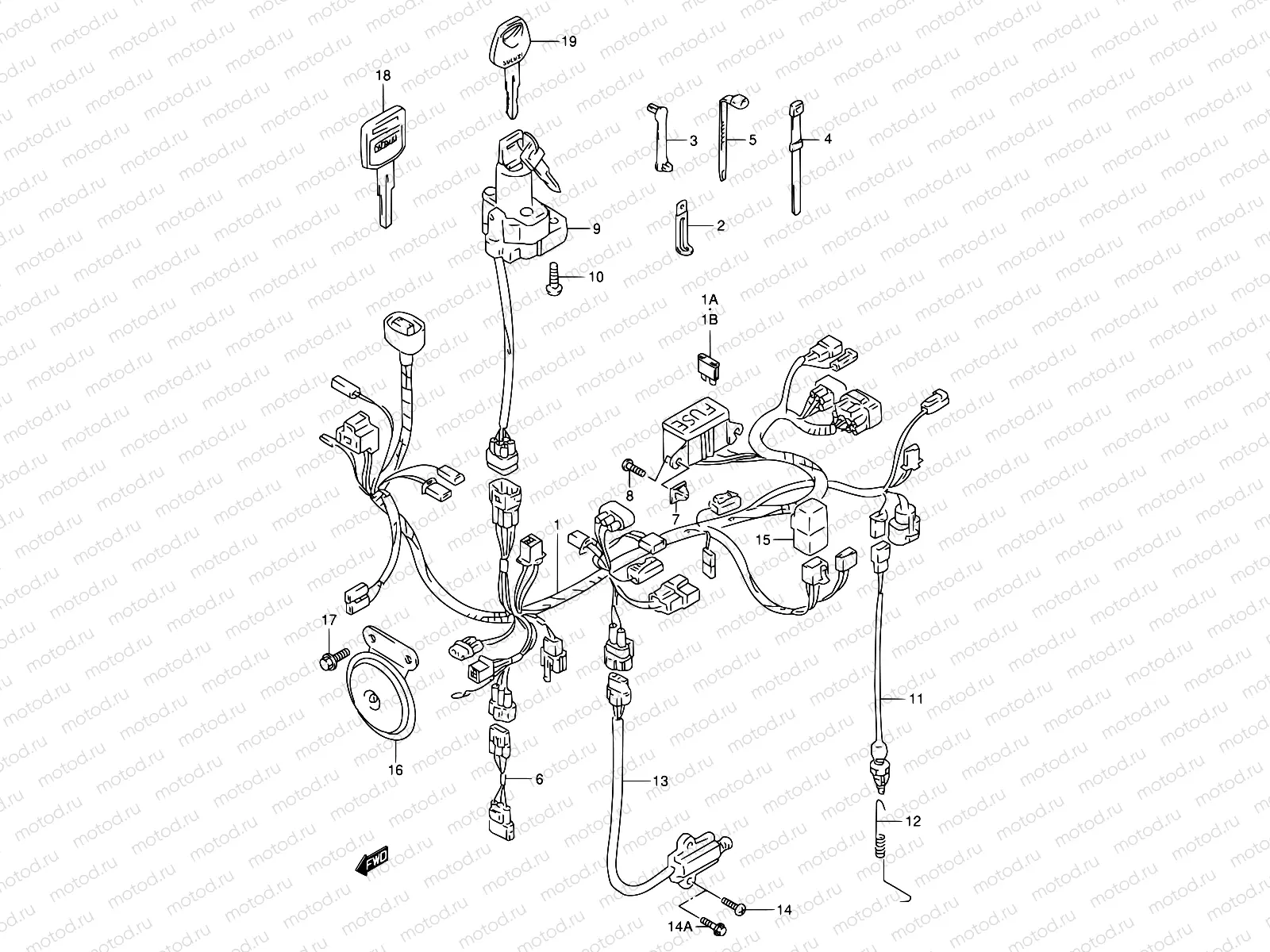

28 - WIRING HARNESS (MODEL V/W/X)

28 - WIRING HARNESS (MODEL V/W/X)
Например: 36610-04F00
1
36610-04F00
Harness,wiring
1
09481-10010-025
Fusible (10A)
1
09481-10015-025
Fusible (15A)
2
09404-06039
Clamp(L:65)
194 ₽/шт
3
09407-03401
CLAMP(L:33)
97 ₽/шт
4
09407-12402
Струбцина
211 ₽/шт
5
09407-14403
КЛЕММА
221 ₽/шт
5
09407-18402
Струбцина (L:165)
211 ₽/шт
5
09407-25401
Хомут
221 ₽/шт
6
36851-32E00
WIRE,THROTTLE SENSOR
438 ₽/шт
7
09148-06007
Nut
8
03541-0620A
SCREW
1 520 ₽/шт
9
37100-04F00
LOCK ASSY,STEERING
17 298 ₽/шт
9
37100-04F10
LOCK ASSY,STEERING
21 131 ₽/шт
10
09139-08016
БОЛТ ПЕТЛИ ДВЕРИ (8X20)
170 ₽/шт
11
37740-32E00
Переключатель
1 748 ₽/шт
12
09443-06088
Пружина
2 500 ₽/шт
13
37840-44X51
Switch Assy,side Stand
6 334 ₽/шт
14
01550-0616B
БОЛТ
81 ₽/шт
15
38740-24X50
RELAY ASSY, HEAD LAMP
2 665 ₽/шт
16
38500-12D01
Horn assy
17
01550-0616B
БОЛТ
81 ₽/шт
18
37146-33E00
KEY,BLANK
2 899 ₽/шт
19
37146-33E00
KEY,BLANK
2 899 ₽/шт
