Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1300 R Hayabusa SUZUKI GSX1300R L0 Hayabusa (E51) SUZUKI 28 - ELECTRICAL

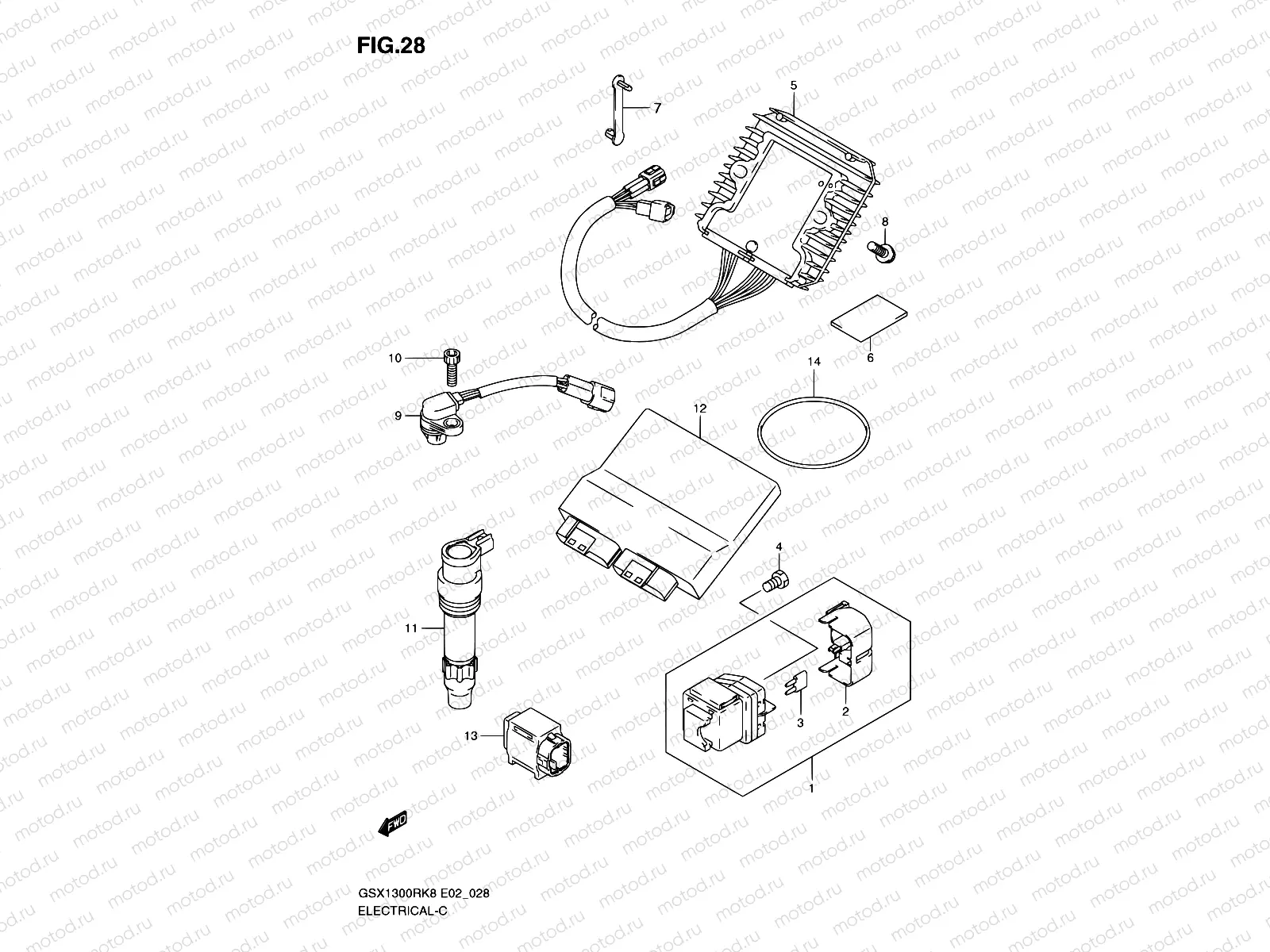

28 - ELECTRICAL

28 - ELECTRICAL

Например: 31800-44G00

1

31800-44G00

Реле стартера

6 630 ₽/шт

2

31861-38G00

КРЫШКА КОРПУСА ВЫКЛЮЧАТЕЛЯ

258 ₽/шт

3

09481-30504

Предохранитель 30A

1 450 ₽/шт

4

09128-06013

SCREW(6X8)

740 ₽/шт

5

32800-15H11

RECTIFIER ASSY

27 957 ₽/шт

6

33651-37000

PROTECTOR(170X95X3.0)

468 ₽/шт

7

36651-48E00

CLAMP(L:63)

204 ₽/шт

8

02162-0625A

Болт выпрямителя

81 ₽/шт

9

33220-01H01

Sensor Assy,cam Position

6 822 ₽/шт

10

07130-0616B

БОЛТ

97 ₽/шт

11

33410-24F11

Coil Assy,ignition

9 520 ₽/шт

12

32920-15H00

Control unit,fi

12

32920-15H40

Control unit,fi

12

32920-15H30

CONTROL UNIT,FI

184 212 ₽/шт

12

32920-15H50

Control unit,fi

13

33960-06G10

SENSOR ASSY,FUEL CUT

6 379 ₽/шт

14

09280-76005

O RING(D:3.5,ID:76)

2 390 ₽/шт
