Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI VS 750 GL Intruder SUZUKI VS750GLF L Intruder SUZUKI 28 - ELECTRICAL

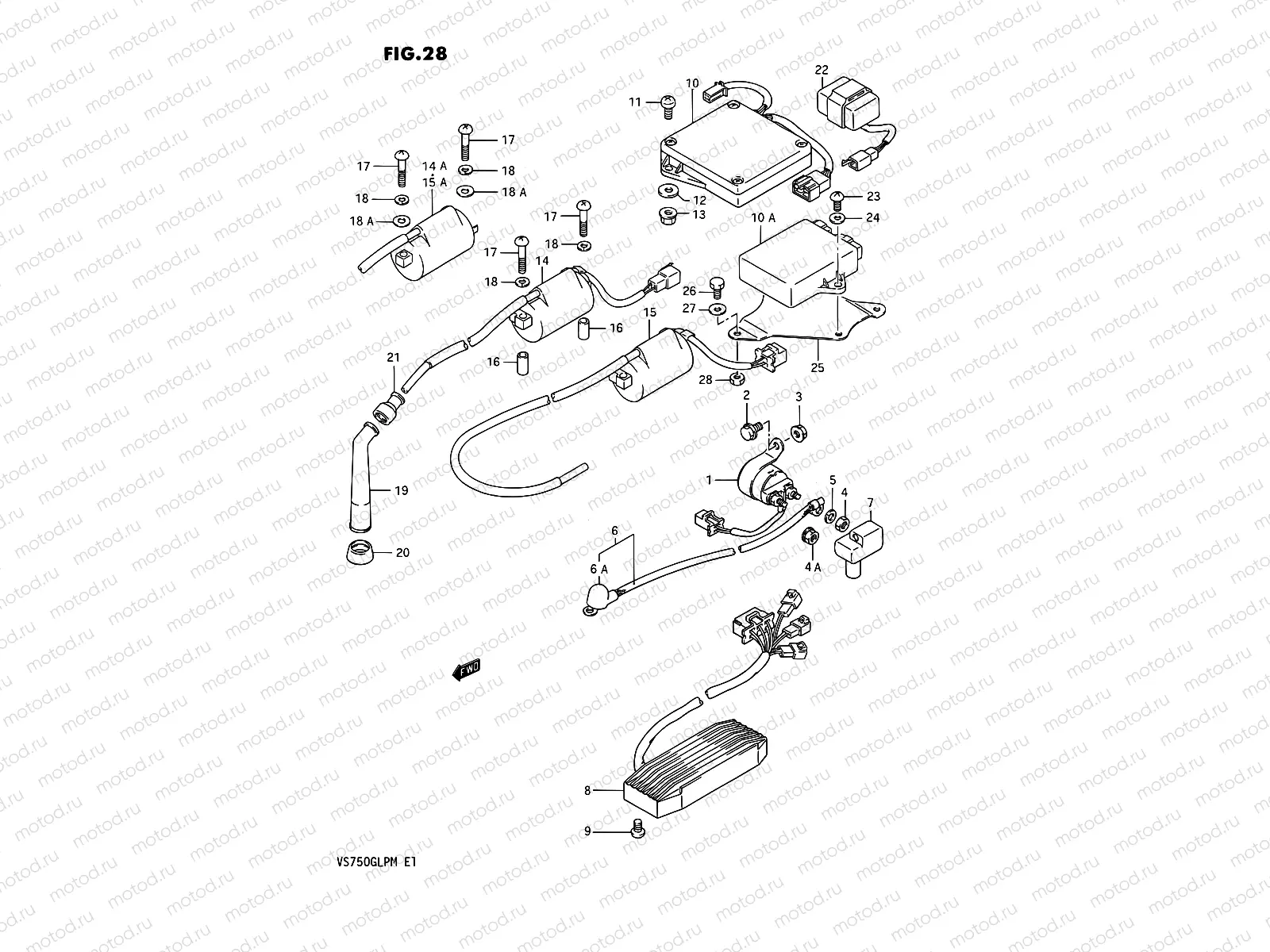

28 - ELECTRICAL

28 - ELECTRICAL

Например: 31800-15501

1

31800-15501

Реле стартера

5 573 ₽/шт

2

01550-0610B

Болт

85 ₽/шт

3

08319-31067

Гайка

153 ₽/шт

4

08310-0006B

Гайка

81 ₽/шт

4

08361-3506A

ГАЙКА

82 ₽/шт

5

08321-0106A

Шайба

81 ₽/шт

6

33850-38A00

WIRE,STARTER MOTOR LEAD

1 677 ₽/шт

6

31861-48B10

Крышка

344 ₽/шт

7

31861-38A00

CAP,STARTER RELAY

532 ₽/шт

8

32800-38A00

RECTIFIER ASSY

26 197 ₽/шт

9

01500-0610B

Болт

85 ₽/шт

10

32900-38A10

Igniter unit

14

33410-38A11

Катушка зажигания

11 183 ₽/шт

15

33420-38A11

Катушка зажигания

11 183 ₽/шт

16

09180-06144

Прокладка 6.4 X 10

2 660 ₽/шт

17

09125-05053

Screw

18

08321-0105A

Пластина замка

81 ₽/шт

18

08322-0105B

Шайба

81 ₽/шт

19

33510-11410

Свечной колпачок

2 720 ₽/шт

20

33541-47D00

Уплотнение

452 ₽/шт

21

33542-38B00

Уплотнение

162 ₽/шт

23

02112-3612A

Болт

1 250 ₽/шт

24

08322-0106A

Шайба

81 ₽/шт

25

32910-38A10

PLATE,IGNITOR FITING

841 ₽/шт

26

01500-0612B

Болт

1 210 ₽/шт

27

08321-0106A

Шайба

81 ₽/шт

28

08319-31067

Гайка

153 ₽/шт
