Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSR 600 SUZUKI GSR600 K7 SUZUKI (VIN: JS1B9111) 28 - ELECTRICAL

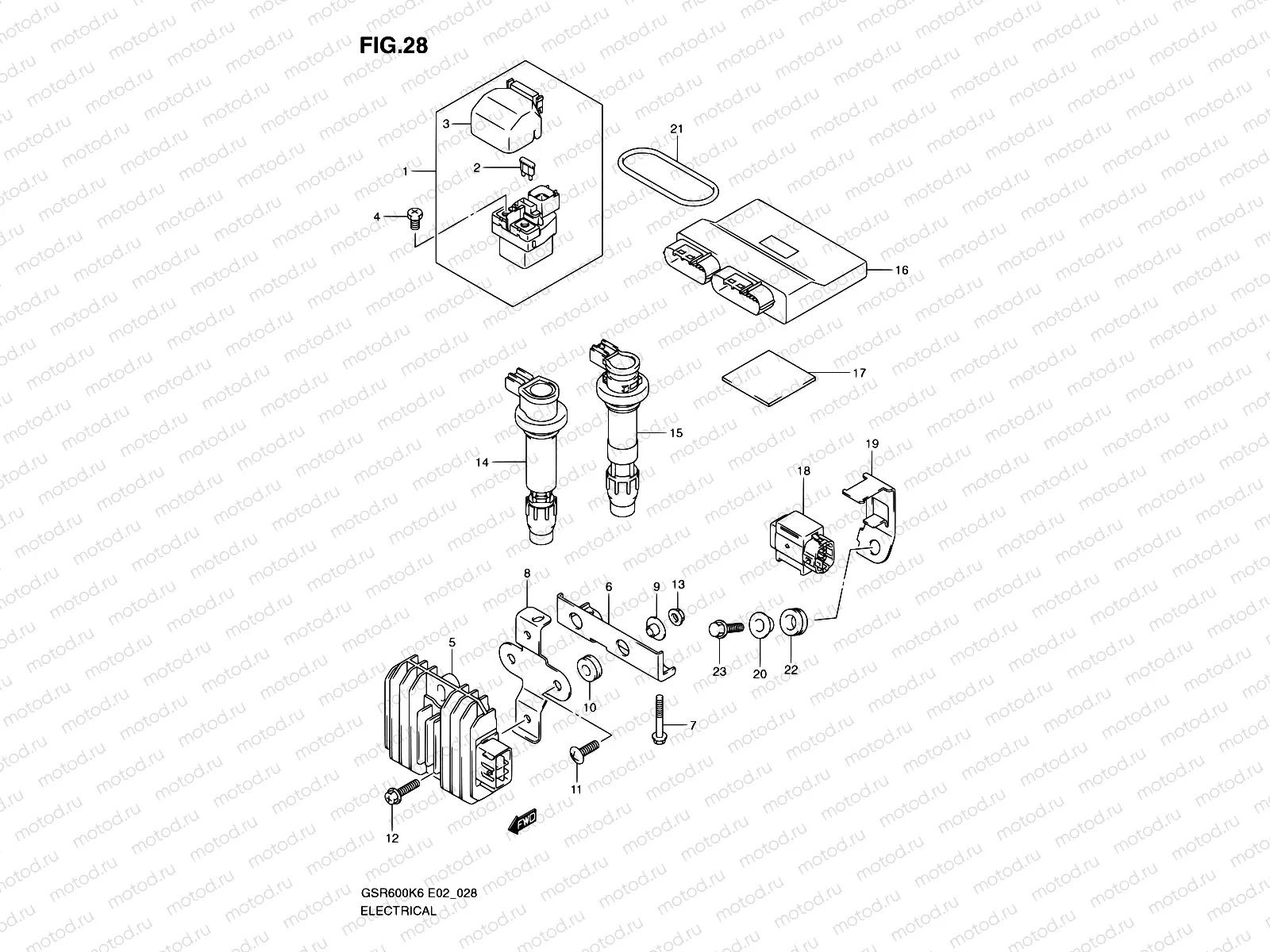

28 - ELECTRICAL

28 - ELECTRICAL
Например: 31800-44G00
1
31800-44G00
Реле стартера
6 630 ₽/шт
2
09481-30504
Предохранитель 30A
1 450 ₽/шт
3
31861-38G00
КРЫШКА КОРПУСА ВЫКЛЮЧАТЕЛЯ
258 ₽/шт
4
09128-06013
SCREW(6X8)
740 ₽/шт
5
32800-42F10
RECTIFIER ASSY
27 760 ₽/шт
6
32831-44G10
BRACKET,RECT FTG NO.1
543 ₽/шт
7
01547-0640A
БОЛТ
97 ₽/шт
8
32831-44G20
BRACKET,RECT FTG NO.2
704 ₽/шт
9
09180-06325
Прокладка
194 ₽/шт
10
09320-08066
САЙЛЕНТБЛОК
469 ₽/шт
11
02142-0616B
Болт
1 060 ₽/шт
12
02162-0620C
Болт
85 ₽/шт
13
08316-1006B
Гайка
81 ₽/шт
14
33410-29G00
Катушка зажигания
12 356 ₽/шт
16
32920-44G00
CONTROL UNIT,FI
158 627 ₽/шт
17
33652-07D00
КОЖУХ
299 ₽/шт
18
33960-06G10
SENSOR ASSY,FUEL CUT
6 379 ₽/шт
19
33961-41F00
BRACKET,FUEL CUT SENSOR
297 ₽/шт
20
09180-06325
Прокладка
194 ₽/шт
21
09280-85001
Кольцо уплотнительное
258 ₽/шт
22
09320-08516
Cushion(8X18X5.8)
1 640 ₽/шт
23
01550-0616A
БОЛТ
81 ₽/шт
