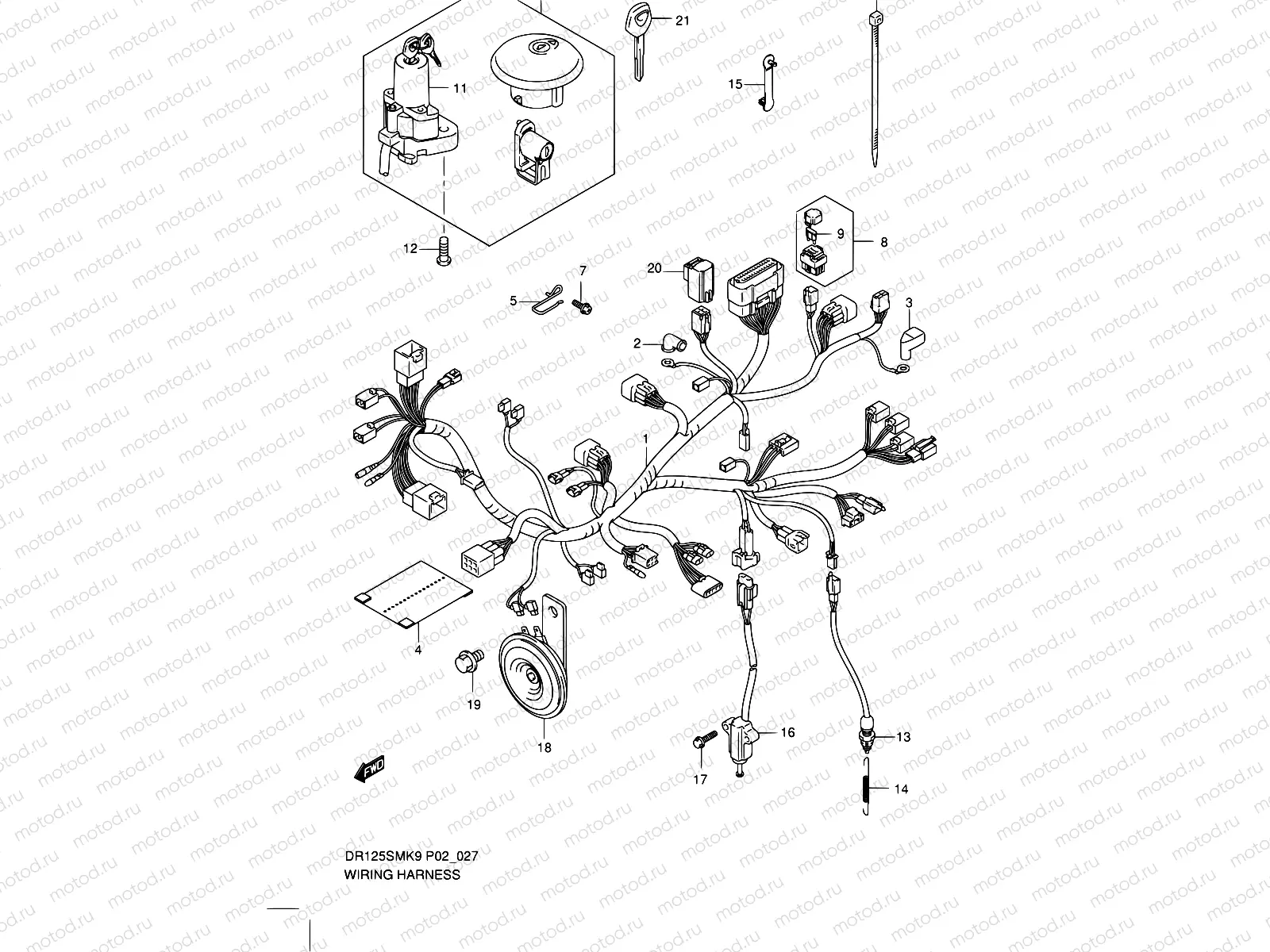

27 - WIRING HARNESS

27 - WIRING HARNESS
Например: 36610-C24H0-0J000
1
36610-C24H0-0J000
arness, wiring
2
31861-48B10
Крышка
344 ₽/шт
3
33624-13H00
CAP. BATTERY PLUS
4
36618-15D21
Cover,wiring Harness
969 ₽/шт
5
36619-24H00
GUIDE. WIRING HANRESS
6
D9425-00975
Clamp
6
09407-18402
Струбцина (L:165)
211 ₽/шт
6
D9448-02875
Collier
7
D1557-0616B
Болт
62 ₽/шт
8
36740-24B01
OX ASSY,FUSE
1 462 ₽/шт
9
09481-10020-025
Fusible (20A)
10
37000-24840
Lock set
11
37100-24H00
LOCK ASSY,STEERING
18 924 ₽/шт
12
37152-17K00
BOLT,STEERING LOCK
266 ₽/шт
13
37740-45D00
SWITCH ASSY,STOP LAMP
1 224 ₽/шт
14
43232-24H00
Spring, stop lamp
15
09407-03401
CLAMP(L:33)
97 ₽/шт
16
37840-44X51
Switch Assy,side Stand
6 334 ₽/шт
17
01550-0620B
БОЛТ
81 ₽/шт
18
38500-10D10
Звуковой сигнал
5 552 ₽/шт
19
D1557-0812B
Vis
20
38740-26E01
Relay Assy,fuel Pump
2 287 ₽/шт
21
37146-33E00
KEY,BLANK
2 899 ₽/шт
