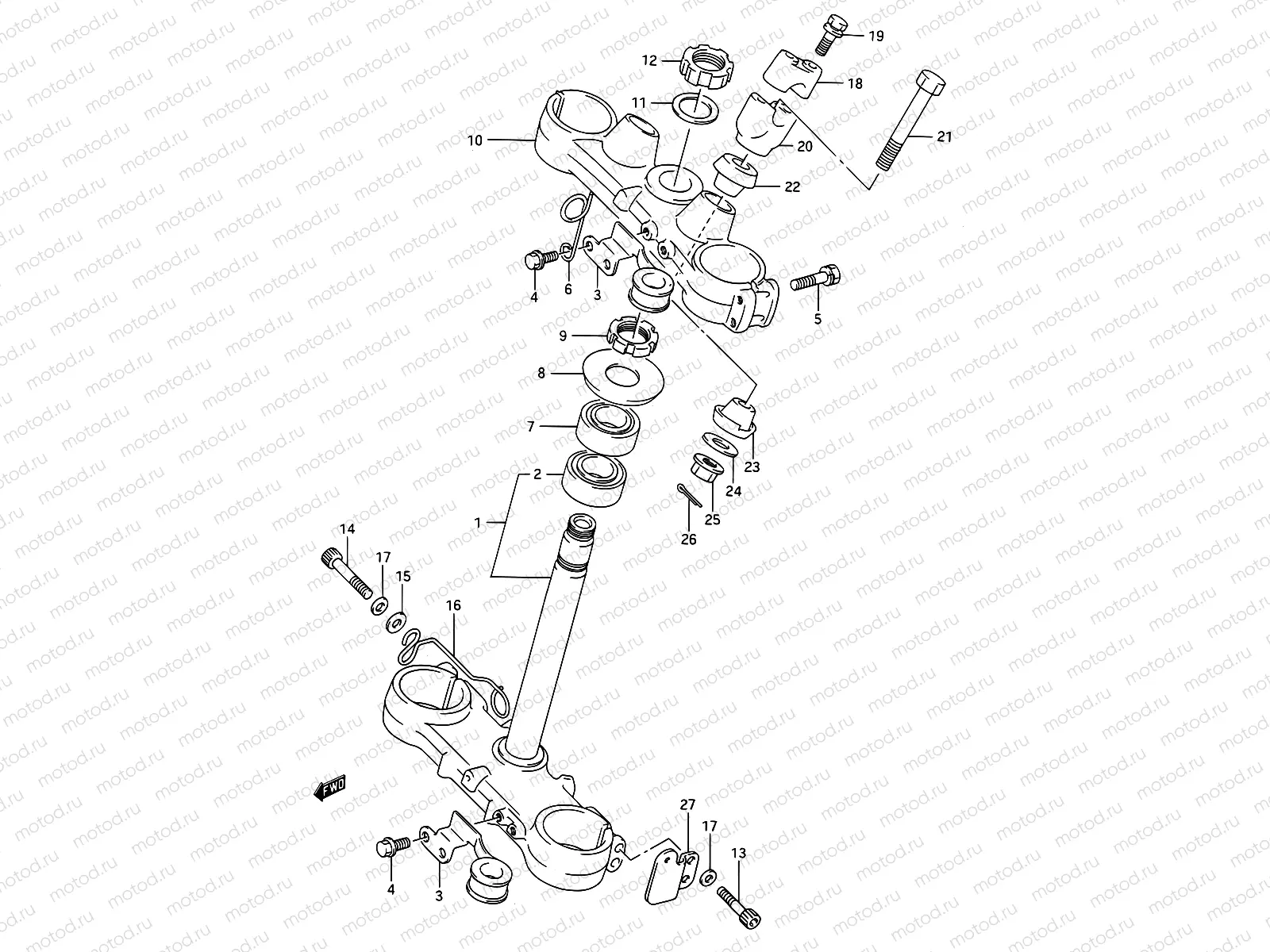

27 - STEERING STEM (MODEL K/L)

27 - STEERING STEM (MODEL K/L)
Например: 51410-05D00
1
51410-05D00
Stem, steering
2
09265-28003
Roulement
3
58621-05D00
Guide, hose lower lh
4
58629-05D00
Bolt, hose guide
5
51328-27C20
BOLT,STEM HEAD(8X40)
383 ₽/шт
6
51452-05D00
Clip, lower lh
7
09265-28003
Roulement
8
51643-28C00
Dust seal,steer
9
51631-28C10
Nut,steering st
10
51311-05D00
Stem head, steering
11
51356-27C00
Шайба
352 ₽/шт
12
51353-27C00
Nut, stem head
13
07130-08407
Болт крепёжный
153 ₽/шт
14
07130-08457
Болт
146 ₽/шт
15
08322-01087
Шайба
81 ₽/шт
16
51455-05D00
Clip, upper rh
18
56211-29320-291
HOLDER,HANDLE(BLACK)
782 ₽/шт
19
01550-08357
БОЛТ
113 ₽/шт
20
56221-14330-291
HOLDER,HANDLE LWR
2 635 ₽/шт
21
56321-28C00
Болт
765 ₽/шт
22
56241-14200
Демпфер верхний
3 030 ₽/шт
23
56242-14200
Демпфер нижний
2 229 ₽/шт
24
09160-10035
Шайба
136 ₽/шт
25
08319-31107
Гайка
210 ₽/шт
26
04111-2030A
PIN
740 ₽/шт
27
35956-05D00
Bracket, front reflector rh
27
35957-05D00
Bracket, front reflector lh refer to fig.27a(f-13) for mod refer to fig.27b(f-14) for mod
