Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI VS 800 Intruder SUZUKI VS800GL N Intruder (E03,E28,E33) SUZUKI 27 - SPEEDOMETER (MODEL N/P/R/S)

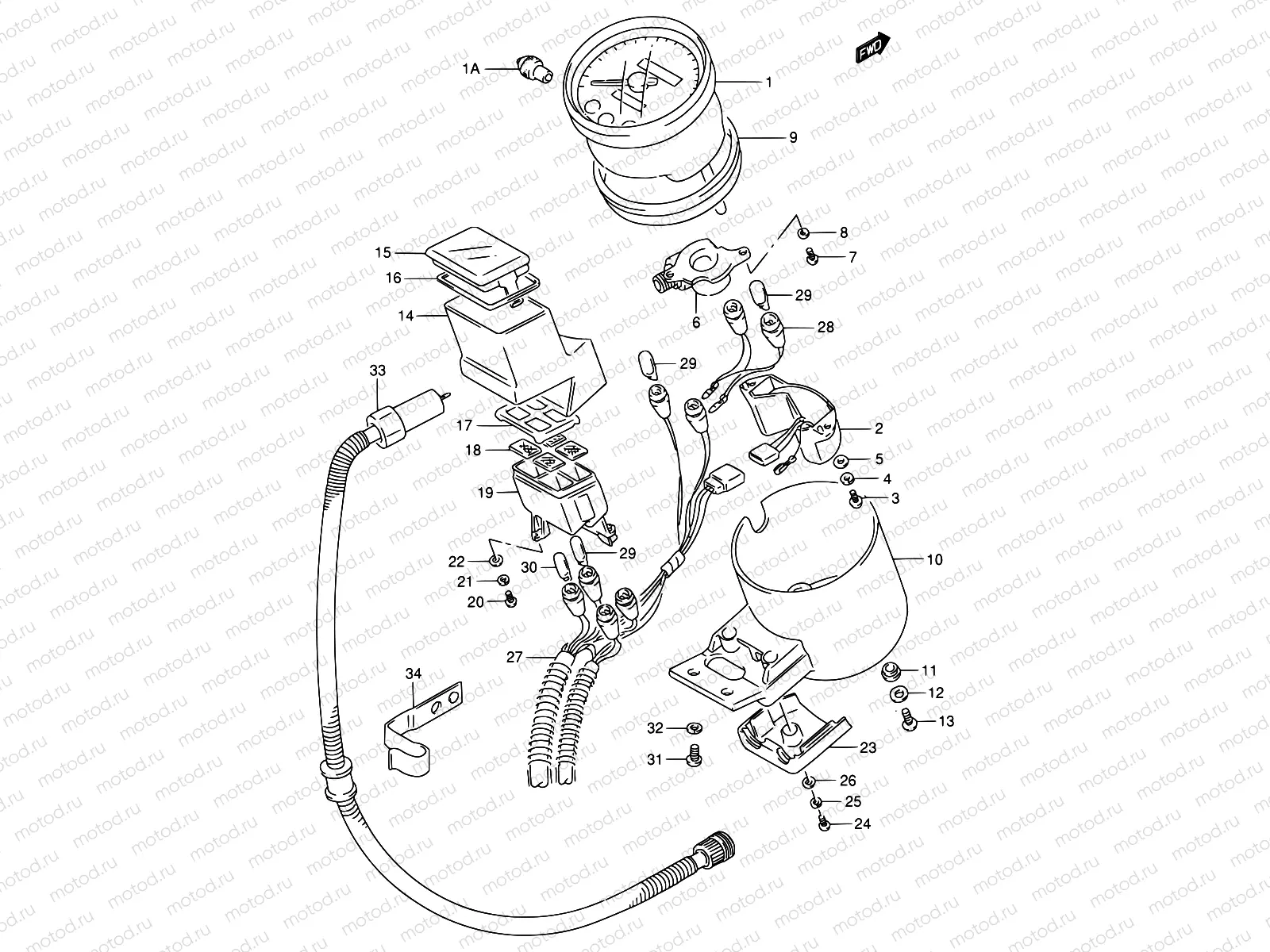

27 - SPEEDOMETER (MODEL N/P/R/S)

27 - SPEEDOMETER (MODEL N/P/R/S)

Например: 34110-39A20

1

34110-39A20

Speedometer

1

34124-39A10

KNOB,TRIP

1 343 ₽/шт

2

34490-39A10

UNIT,WATER TEMP

17 712 ₽/шт

3

02112-0308A

Болт

1 060 ₽/шт

4

09162-03001

Шайба блокирующая

900 ₽/шт

5

08322-0103B

Шайба

1 370 ₽/шт

6

34131-38A00

Box,gear

7

02112-04107

Болт

82 ₽/шт

8

08321-0104A

Пластина замка

82 ₽/шт

9

34288-39A00

CUSHION

1 357 ₽/шт

10

34193-39A20

COVER,METER

21 080 ₽/шт

11

34189-05A31

Cushion

364 ₽/шт

12

34181-38A00

Шайба

231 ₽/шт

13

02112-04087

Винт 4X8

85 ₽/шт

14

36381-39A20

BOX,PILOT

7 194 ₽/шт

15

36393-38A00

Lens

16

36395-38A00

CUSHION

489 ₽/шт

17

36386-38A00

PLATE,PILOT LENS

438 ₽/шт

18

36300-38810

Lens set, pilot lamp

19

36382-38B30

CASE,PILOT LAMP

1 443 ₽/шт

20

02112-0308A

Болт

1 060 ₽/шт

21

09162-03001

Шайба блокирующая

900 ₽/шт

22

08322-0103B

Шайба

1 370 ₽/шт

23

34152-39A21

COVER,PILOT BOX

5 005 ₽/шт

24

02112-04087

Винт 4X8

85 ₽/шт

25

08321-0104A

Пластина замка

82 ₽/шт

26

08322-01047

Шайба

85 ₽/шт

27

34173-39A21

Socket,meter

28

34174-39A10

Socket, meter no.2

29

09471-12085-LCP

Bulb (12v3w)

30

09471-12108

ЛАМПА НАКАЛИВАНИЯ

226 ₽/шт

31

02112-3616A

Болт

1 210 ₽/шт

32

08321-01067

Шайба, стопорная

81 ₽/шт

33

34910-39A00

CABLE ASSY,SPEEDOMETER

13 431 ₽/шт

34

34938-38A02

GUIDE,SPEEDOMETER CABLE

1 156 ₽/шт
