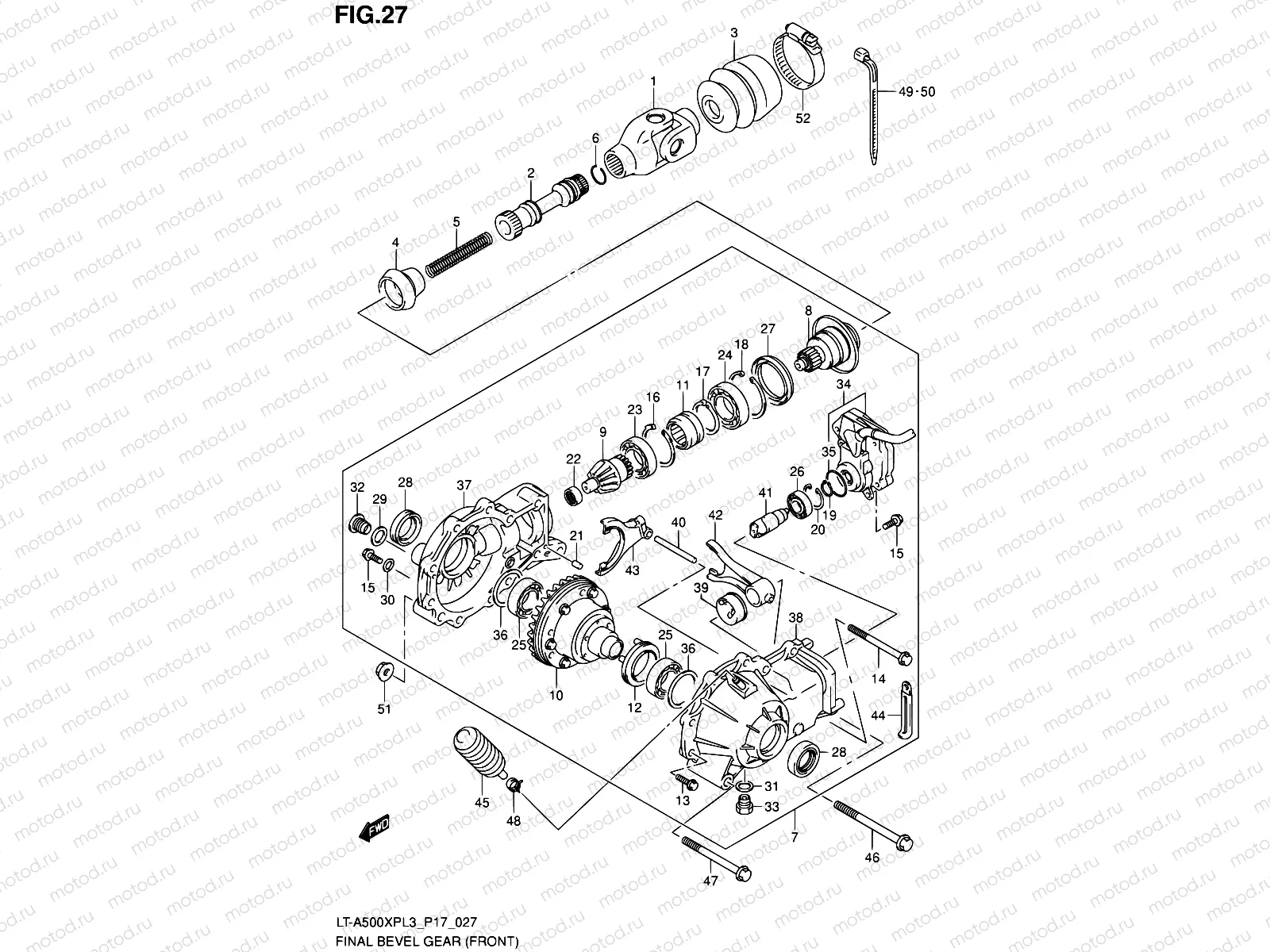

27 - FINAL BEVEL GEAR (FRONT)

27 - FINAL BEVEL GEAR (FRONT)

Например: 27100-31G00

1

27100-31G00

Yoke,fr propell

2

27151-31G30

Shaft,propeller

3

27153-31G22

Boot,front prop

4

27153-31G31

Boot,front prop

5

27191-31G00

Spring,fr prope

6

09381-20004

КОЛЬЦО СТОПОРНОЕ

162 ₽/шт

7

27400-31H00

CASE ASSY. FR DIFFERENT

8

27130-31HA0

Shaft assy,inpu

9

27311-31HA0

Pinion,drive

10

27320-31HA0

Gear ring assy

11

27371-31HA0

Sleeve

12

27381-31HA0

Sleeve diff loc

13

27401-31HA0

Vis

14

27401-31HB0

Vis

15

27401-31HC0

Vis

16

27403-31HA0

Snap ring

17

27403-31HB0

Snap ring

18

27403-31HC0

Snap ring

19

27403-31HD0

Snap ring

20

27403-31HE0

Snap ring

21

27404-31HA0

Pin

22

27405-31HA0

Bearing,pinion

23

27405-31HB0

Roulement

24

27405-31HC0

Roulement

25

27405-31HD0

Roulement

26

27405-31HE0

Roulement

27

27406-31HA0

Oil seal

28

27406-31HB0

Oil seal

29

27407-31HA0

Rondelle

30

27407-31HB0

Rondelle

31

27407-31HC0

Rondelle

32

27409-31HA0

Plug

33

27409-31HB0

Plug

34

.CASE MOTOR

35

27406-31HC0

O-Ring

36

27445-31HA0

Shim set

37

27451-31HA0

Case, fr differ

38

27460-31HA0

Cover bush, fr

39

27911-31HA0

Cam difflock

40

27913-31HA0

Shaft, difflock

41

27921-31HA0

Shaft, screw

42

27940-31HA0

Fork,front diff

43

27950-31HA0

Fork, difflock

44

09404-08206

CLAMP(L:65 T:0.8)

129 ₽/шт

45

27491-38F00

Case,breather

46

09103-10061

BOLT(10X90)

4 380 ₽/шт

47

09103-10148

BOLT(10X110)

888 ₽/шт

48

09401-08413

Collier

49

09407-14403

КЛЕММА

221 ₽/шт

50

09407-14403

КЛЕММА

221 ₽/шт

51

09159-10115

Гайка

289 ₽/шт

52

09402-80501

Collier
