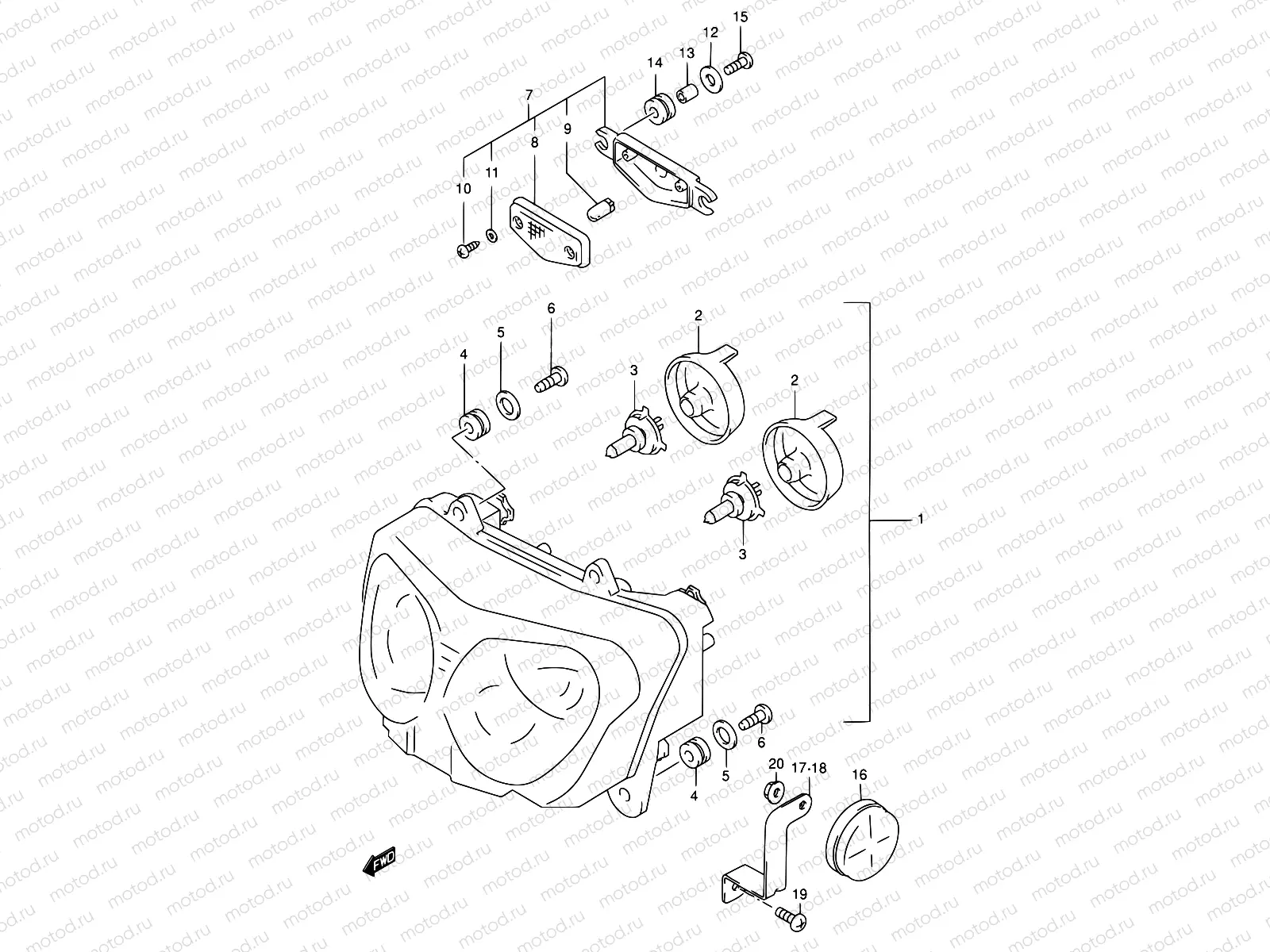

26C - HEADLAMP (MODEL K3 E24)

26C - HEADLAMP (MODEL K3 E24)
Например: 35100-08F30-999
1
35100-08F30-999
HEADLAMP ASSY
54 604 ₽/шт
2
35125-74F00
COVER,SOCKET
1 146 ₽/шт
3
K9206-91002
Bulb,12v 60/55w
4
35137-33E00
CUSHION,HEADLAMP
867 ₽/шт
5
09160-05045
Шайба
136 ₽/шт
6
03511-0516B
Болт
82 ₽/шт
7
36110-08F00
LAMP ASSY,FR POSITION
4 848 ₽/шт
8
36112-08F00
Линза
770 ₽/шт
9
09471-12216
ЛАМПА НАКАЛИВАНИЯ
459 ₽/шт
10
03211-0412A
Болт
1 060 ₽/шт
11
35128-37B00
Шайба
278 ₽/шт
12
09160-05045
Шайба
136 ₽/шт
13
09180-05048
SPACER(5.5X8X10.5)
162 ₽/шт
14
09320-08001
Damper
15
02142-0520B
ШАЙБА
81 ₽/шт
16
35950-14A00
REFLECTOR,REFLEX FR
2 295 ₽/шт
17
35956-08F01
BRACKET. FRONT SIDE RH
18
35957-08F01
BRACKET. FRONT SIDE LH
19
02142-0510A
Болт
82 ₽/шт
20
08316-1005B
Гайка
1 520 ₽/шт
