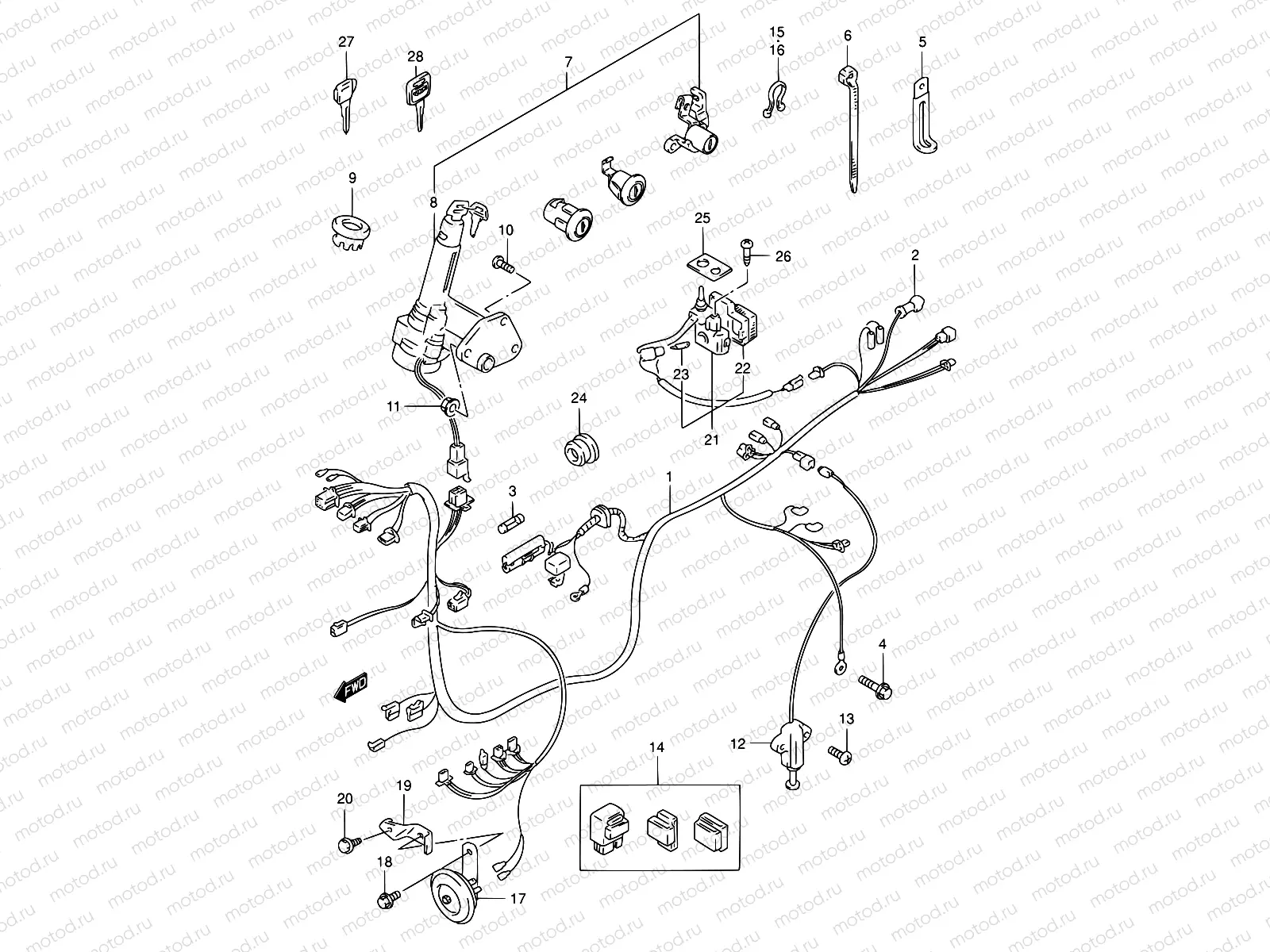

26A - WIRING HARNESS (MODEL Y)

26A - WIRING HARNESS (MODEL Y)
Например: 36610-20E61
1
36610-20E61
Harness wire
2
31861-31500
Крышка
262 ₽/шт
3
09481-15001
Предохранитель 15A
136 ₽/шт
4
01550-0612B
БОЛТ
81 ₽/шт
5
09404-06039
Clamp(L:65)
194 ₽/шт
6
09407-14403
КЛЕММА
221 ₽/шт
6
09407-22403
CLAMP(L:220)
1 370 ₽/шт
6
09407-25401
Хомут
221 ₽/шт
7
37100-20860
Zár szett
7
37100-20851
Zár szett
8
37100-20E20
Kormányzár
8
37100-20E11
Lock assy,steer
9
37155-20E00
Kormányzár takaró sapka
9
37155-03A60
CAP,IGNITION SWI
504 ₽/шт
10
09139-06048
SCREW(6X20)
1 060 ₽/шт
10
09139-06014
Болт
1 720 ₽/шт
11
08316-1006B
Гайка
81 ₽/шт
12
37840-20E01
Switch Assy,side Stand
9 444 ₽/шт
13
02142-0620B
Болт
1 060 ₽/шт
14
38740-24X50
RELAY ASSY, HEAD LAMP
2 665 ₽/шт
15
09408-00012
Проводка
1 210 ₽/шт
16
09408-00021
CLIP(ID:16)
980 ₽/шт
17
38500-08F10
Звуковой сигнал
5 943 ₽/шт
18
01550-0812B
Болт
97 ₽/шт
19
38590-20E00
BRACKET,HORN ASSY
712 ₽/шт
20
01550-0612B
БОЛТ
81 ₽/шт
21
36210-39C11
LAMP ASSY,TRUNK BOX
5 709 ₽/шт
22
36212-39C00
Линза
454 ₽/шт
23
09471-12108
ЛАМПА НАКАЛИВАНИЯ
226 ₽/шт
24
09308-08014
Втулка
1 960 ₽/шт
25
36920-29C02
PACKING,TRUNK LAMP
203 ₽/шт
26
03541-0412B
Болт
85 ₽/шт
27
37146-03A00
ЗАГОТОВКА КЛЮЧА (TYPE:C)
935 ₽/шт
27
37146-03A10
KEY,BLANK(TYPE:D)
888 ₽/шт
27
37146-03A20
KEY,BLANK(TYPE:E)
935 ₽/шт
27
37146-03A30
KEY,BLANK(TYPE:F)
626 ₽/шт
28
37146-26D10
KEY,BLANK
3 315 ₽/шт
