Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1300 R Hayabusa SUZUKI GSX1300R L0 Hayabusa (E02) SUZUKI 26A - STARTING MOTOR (MODEL K9 E14,MODEL L0)

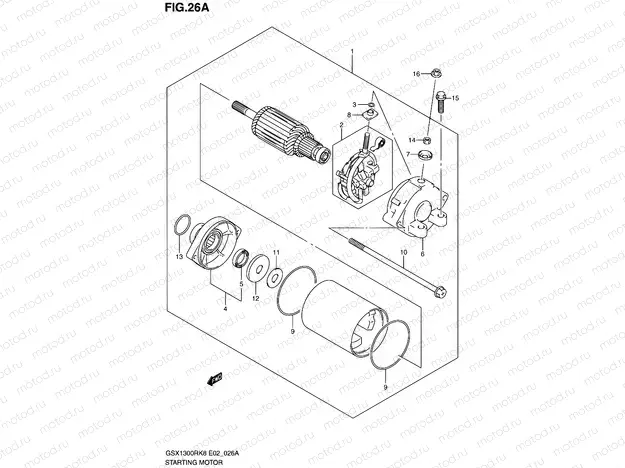

26A - STARTING MOTOR (MODEL K9 E14,MODEL L0)

26A - STARTING MOTOR (MODEL K9 E14,MODEL L0)

Например: 31100-15H21

1

31100-15H21

Motor Assy,starting

45 560 ₽/шт

2

31132-45C00

HOLDER SET,BRUSH

1 955 ₽/шт

3

31143-38300

O RING

258 ₽/шт

4

31150-15H20

OUSING ASSY,STARTER

7 077 ₽/шт

5

31153-49210

Сальник

884 ₽/шт

6

31171-24F00

RAME,STARTER END

6 764 ₽/шт

7

31172-38300

Втулка

328 ₽/шт

8

31173-88C00

Втулка

543 ₽/шт

9

31264-44110

O RING

614 ₽/шт

10

31281-24F00

Болт

567 ₽/шт

11

31361-38300

SHIM

170 ₽/шт

12

31361-43400

Шайба

282 ₽/шт

13

09280-24003

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

179 ₽/шт

14

08310-00067

Гайка

81 ₽/шт

15

09103-06212

БОЛТ

97 ₽/шт

16

08361-3506A

ГАЙКА

82 ₽/шт
