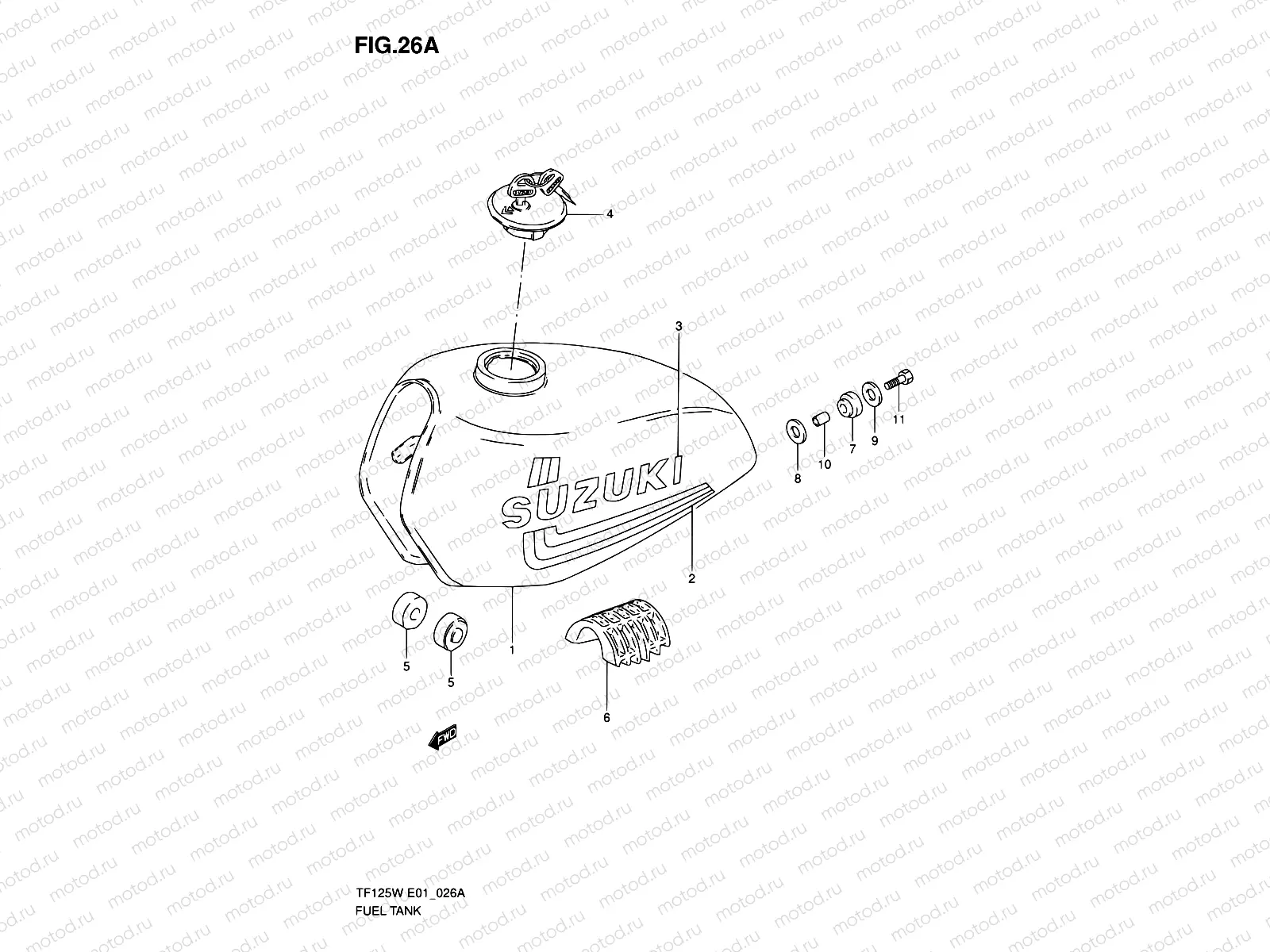

26A - FUEL TANK (E06 F.NO.126490~/MODEL W)

26A - FUEL TANK (E06 F.NO.126490~/MODEL W)

Например: 44100-29520-30H

1

44100-29520-30H

Tank assy, fuel (white)

1

44100-29520-YC2

Tank assy, fuel (blue)

2

68110-29500-G8D

.tape set, fuel tank

2

68110-29500-MD4

.tape set, fuel tank

3

68111-12C00-1LF

.emblem (blue)

3

68111-12C30-30H

.emblem (white)

4

44200-36703

Cap assy,fuel t

5

09329-10026

ОПОРА КРЕПЛЕНИЯ ТОПЛИВНОГО БАКА

226 ₽/шт

6

44541-28000

CUSHION

833 ₽/шт

7

09320-12013

САЙЛЕНТБЛОК

211 ₽/шт

8

09320-12017

САЙЛЕНТБЛОК

179 ₽/шт

9

09160-08135

Шайба

113 ₽/шт

10

09180-08143

Кольцо/шайба

194 ₽/шт

11

01500-08307

Болт

97 ₽/шт
