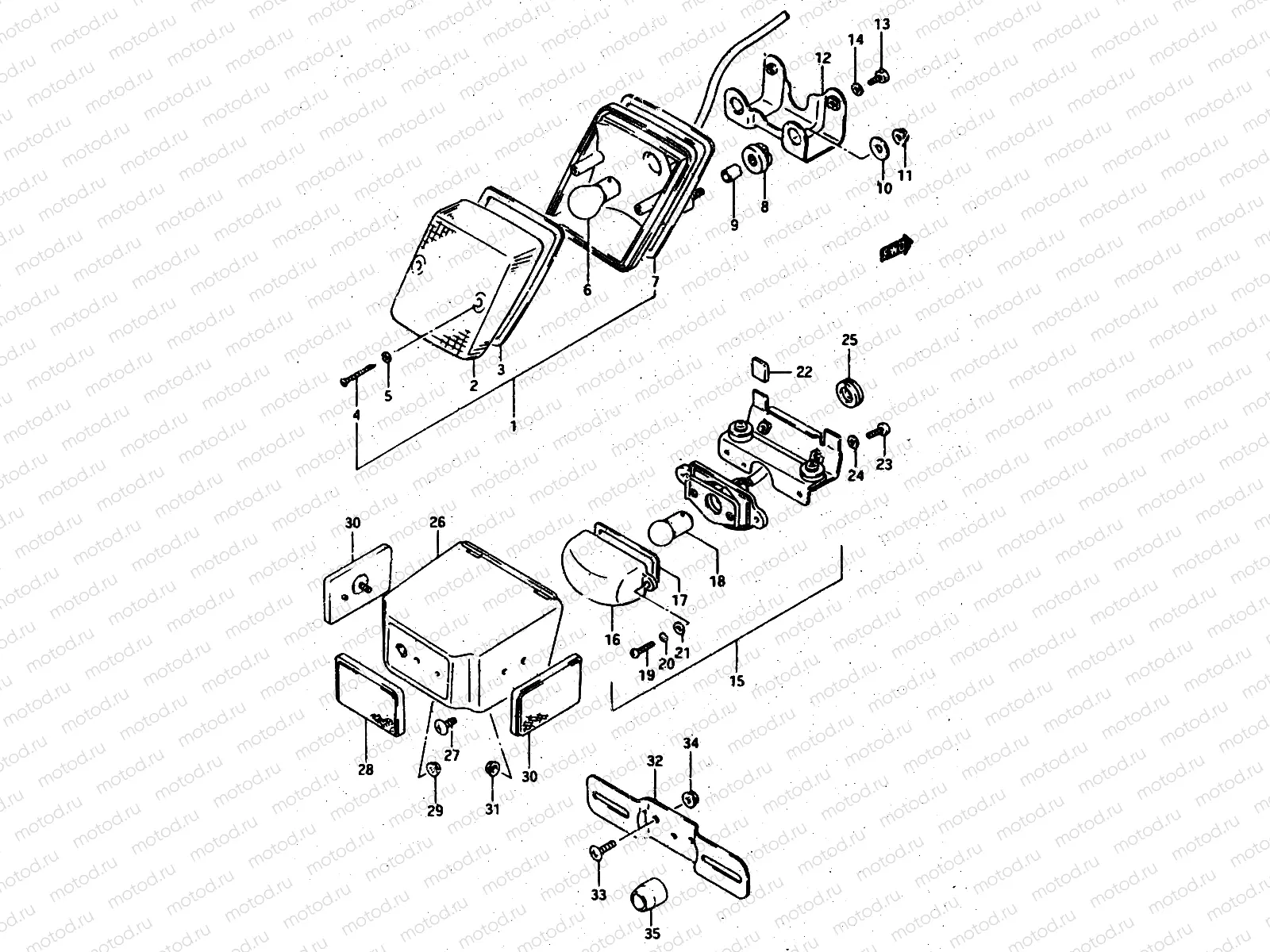

26 - REAR COMBINATION LAMP

26 - REAR COMBINATION LAMP
Например: 35710-28A20-999
1
35710-28A20-999
Lamp assy
2
35712-14A00
LENS
3 265 ₽/шт
3
35713-31D00
Прокладка
469 ₽/шт
4
03211-0425B
Болт
82 ₽/шт
5
35627-43010
GASKET
179 ₽/шт
6
40503-00838-069
P21/5w,5w, bay1 (12V 21/5W BAY15d)
7
35733-14A00
Gasket
8
09320-09018
САЙЛЕНТБЛОК
1 250 ₽/шт
9
09180-06310
SPACER
178 ₽/шт
10
69160-06027
Rondelle (6.5x20x1.2)
11
08310-0006B
Гайка
81 ₽/шт
12
35726-14A00
Bracket, tail lamp
13
01500-0612B
Болт
1 210 ₽/шт
14
08321-0106A
Шайба
81 ₽/шт
15
35910-14A50
Lamp assy, license
16
35912-00A21
Lens,rr license
17
35913-04A00
Gasket
18
09471-12140-LCP
Bulb
19
02112-0416A
Болт
82 ₽/шт
20
08321-0104A
Пластина замка
82 ₽/шт
21
08322-01047
Шайба
85 ₽/шт
22
35936-14A00
.cap
23
02112-0620A
Болт
85 ₽/шт
24
08321-0106A
Шайба
81 ₽/шт
25
09308-07013
Damper
26
35917-14A30
Cover, license lamp
27
02142-0516B
Болт
85 ₽/шт
28
35970-14A00
REFLEX REFLECTOR,RR
1 130 ₽/шт
29
08316-2005A
Гайка
85 ₽/шт
30
35950-14A50
Reflex reflector, rear side
31
08316-2005A
Гайка
85 ₽/шт
32
35927-14A00
Bracket, license plate
33
02142-0616A
Болт
81 ₽/шт
34
08319-31067
Гайка
153 ₽/шт
35
09320-08035
Cushion
