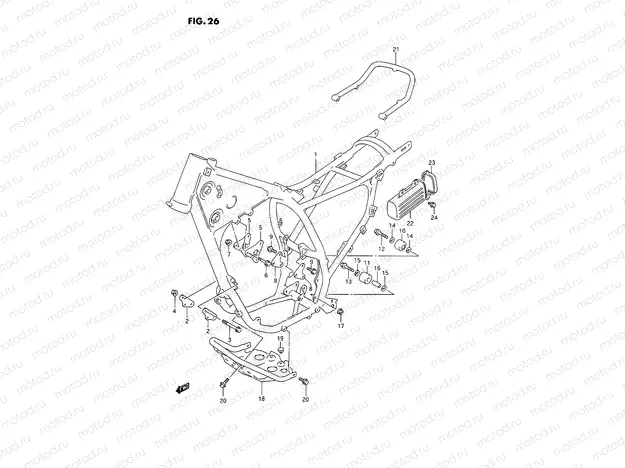

26 - FRAME (MODEL L)

26 - FRAME (MODEL L)
Например: 41100-14D72-0NF
1
41100-14D72-0NF
rame (blue)
1
41100-14D72-019
1
41100-14D40-0NF
rame (blue)
1
41100-14D40-0RP
Frame (yellow)
2
41911-14D01
BEVEST.PLAAT
3
09103-08294
Vis
4
08319-31087
Гайка
178 ₽/шт
5
41991-14D01
Plate, upper
6
09103-08569
Vis
7
08319-31087
Гайка
178 ₽/шт
8
41971-14D01
Plate, lower
9
09103-08570
Bolt,front Grip
1 840 ₽/шт
10
43910-27C11
ROLLER,CHAIN
4 262 ₽/шт
11
43911-01B10
ROLLER,CHAIN CONTROL
1 547 ₽/шт
12
09103-08178
Болт
2 740 ₽/шт
13
01550-08457
Болт
113 ₽/шт
14
09160-08074
Шайба
215 ₽/шт
15
09160-08130
Шайба
102 ₽/шт
16
09180-08206
Кольцо/шайба
2 740 ₽/шт
17
08313-20087
Гайка
1 330 ₽/шт
18
42510-14D10-13L
Protector comp,
19
09321-10026
RUBBER
20
01550-08127
БОЛТ
1 640 ₽/шт
21
43980-14D80-0NF
21
01580-08167
Болт
1 920 ₽/шт
21
43980-14D11-0RP
Grip, rear (yellow)
21
43980-14D41-0NF
Grip, rear (blue)
21
43980-14D41-0RP
Grip, rear (yellow)
22
47431-14D00
HOLDER,TOOL
2 620 ₽/шт
23
47432-14D01
Cap,tool Holder
2 975 ₽/шт
24
09116-06165
BOLT(6X16)
1 520 ₽/шт
