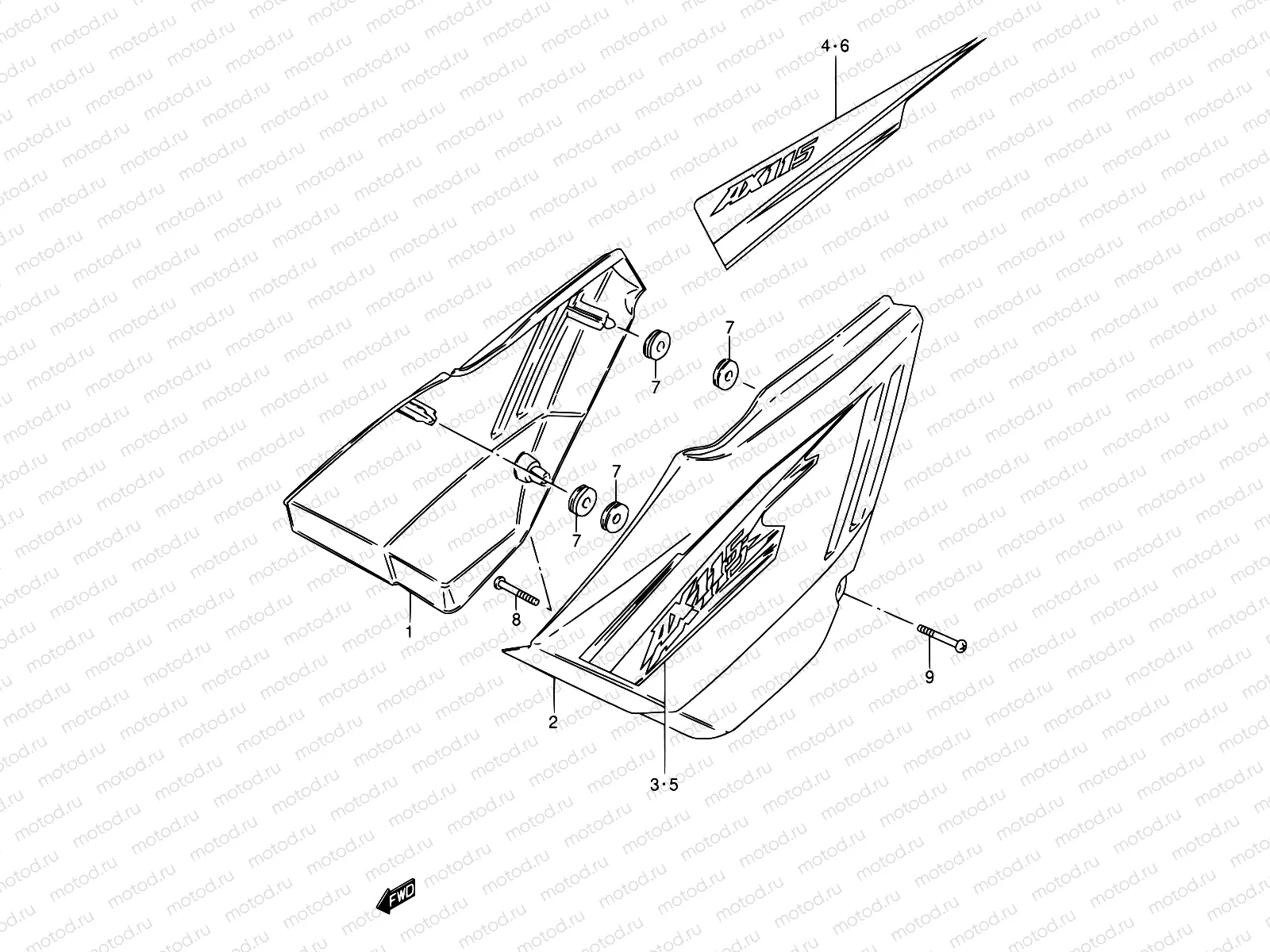

26 - FRAME COVER (MODEL W)

26 - FRAME COVER (MODEL W)

Например: 47111-23400-019

1

47111-23400-019

Cover, frame rh (black)

1

47111-23400-20F

Cover, frame rh (maroon)

1

47111-23400-1ZV

Cover, frame rh (green)

1

47111-23400-1ZZ

Cover, frame rh (gray)

1

47111-23400-17U

Cover, frame rh (gray)

1

47111-23400-Y0P

Cover, frame rh (blue)

2

47211-23400-019

Cover, frame rh (black)

2

47211-23400-20F

Cover, frame rh (maroon)

2

47211-23400-1ZV

Cover, frame rh (green)

2

47211-23400-1ZZ

Cover, frame rh (gray)

2

47211-23400-17U

Cover, frame rh (gray)

2

47211-23400-Y0P

Cover, frame rh (blue)

3

68135-23570-Z3K

Tape, rh

3

68135-23570-Z3L

Tape, rh

3

68135-23570-Z3M

Tape, rh

3

68135-23570-Y8T

ape, rh

4

68135-23560-Z3P

Tape, rh

4

68135-23560-Z3R

Tape, rh

4

68135-23560-Z3N

Tape, rh

5

68145-23570-Z3K

Tape, lh

5

68145-23570-Z3L

Tape, lh

5

68145-23570-Z3M

Tape, lh

5

68145-23570-Y8T

ape, lh

6

68145-23560-Z3P

Tape, lh

6

68145-23560-Z3R

Tape, lh

6

68145-23560-Z3N

Tape, lh

7

09320-08527

Cushion

1 640 ₽/шт

8

02142-06453

Screw, rh

9

09125-06042

SCREW(6X45)

1 330 ₽/шт
