Главная Каталог товаров SUZUKI EPC < 124 cm³ SUZUKI RG 80 Gamma SUZUKI RG80C H Gamma SUZUKI 26 - FOOTREST

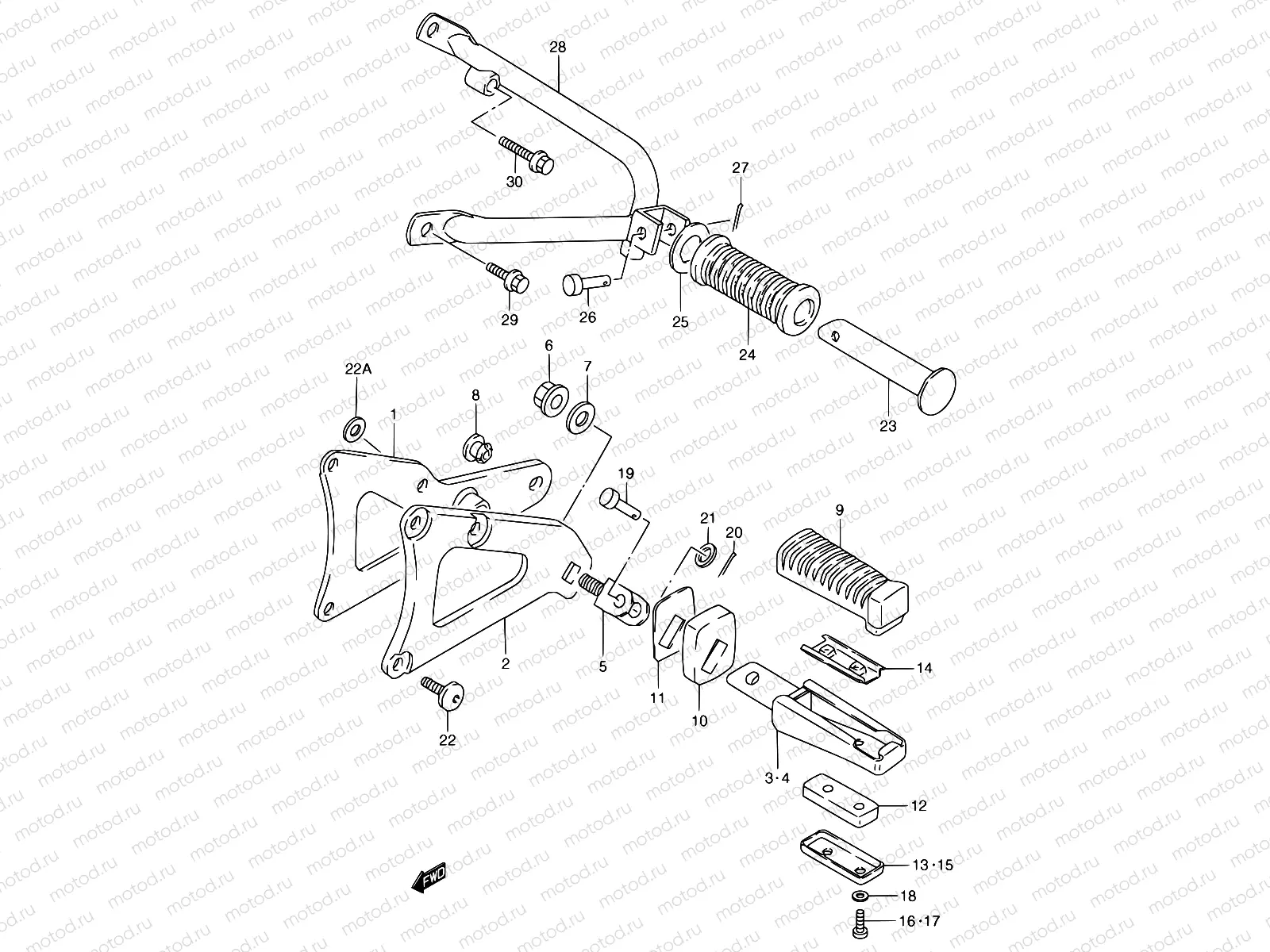

26 - FOOTREST

26 - FOOTREST

Например: 43510-36A00

1

43510-36A00

Bracket, front footrest rh

2

43521-36A00

Bracket, front footrest lh

3

43530-36A00

Holder,front fo

4

43540-36A00

Holder, front footrest lh

5

43517-04700

BOSS,FR FOOTREST

6

08319-31107

Гайка

210 ₽/шт

7

09160-10005

WASHER(10.5X20X3.2)

980 ₽/шт

8

09250-09006

Cap

9

43551-36A00

Footrest rubber (Front)

10

43552-36A00

Rubber, inner

11

43553-04701

Rondelle

12

43533-36A00

BALANCER,FR FOOTREST

575 ₽/шт

13

43534-36A00

Cover,footrest

14

43580-36A00

PLATE,FR FOOTREST

238 ₽/шт

15

43537-36A00

PLATE,FR FOOTREST NO.2

180 ₽/шт

16

02112-05167

Болт

81 ₽/шт

17

02112-0510B

Болт

85 ₽/шт

18

08321-0105A

Пластина замка

81 ₽/шт

19

43529-04700

Pin, front footrest holder

20

04111-2015A

Штифт

81 ₽/шт

21

08322-01087

Шайба

81 ₽/шт

22

09106-06057

BOLT(6X18)

5 000 ₽/шт

22

09160-06109

Шайба

85 ₽/шт

23

43610-03001

BAR,FOOTREST RUBBER

1 479 ₽/шт

24

43612-03001

RUBBER,PILLION FOOTREST

323 ₽/шт

25

09160-19024

Шайба

129 ₽/шт

26

09200-06010

PIN

1 250 ₽/шт

27

04111-2015A

Штифт

81 ₽/шт

28

43750-36A01

Holder, pillion footrest lh

29

01550-06207

БОЛТ

85 ₽/шт

30

01550-06357

БОЛТ

102 ₽/шт
