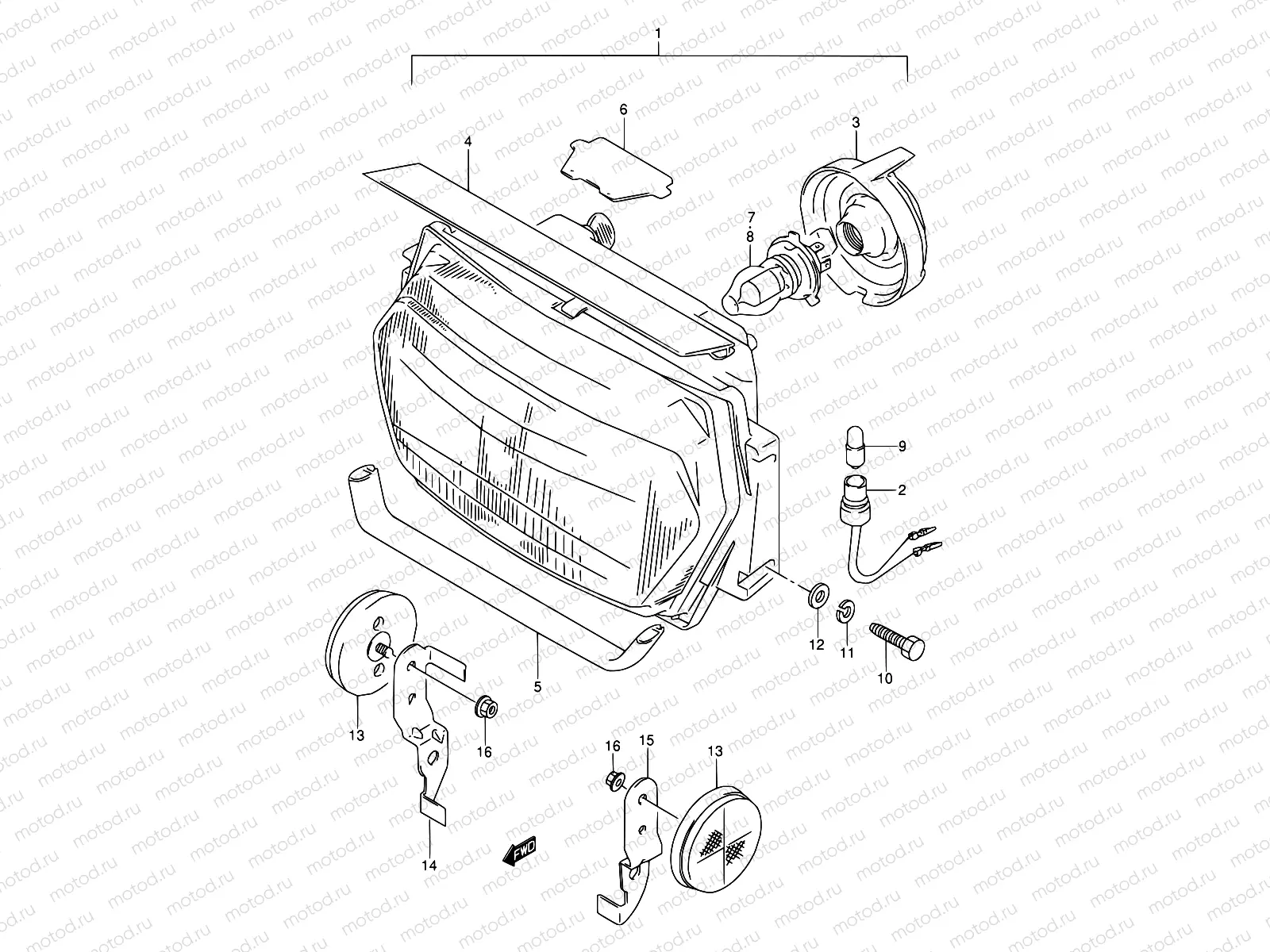

25 - HEADLAMP (MODEL J/K/L/M/N)

25 - HEADLAMP (MODEL J/K/L/M/N)
Например: 35100-20C51-999
1
35100-20C51-999
HEADLAMP ASSY
22 287 ₽/шт
1
35100-19C00
Headlamp assy
1
35100-19C01
Headlamp assy
2
36118-32B10
Support d’ampoule
3
35173-48B00
Cover,socket
4
35242-19C00
Gasket
5
35243-19C00
Gasket
6
35244-19C00
Gasket
7
K9206-91002
Bulb,12v 60/55w
8
K9206-91002
Bulb,12v 60/55w
9
09471-12063-LCP
Bulb 6v/1,7w
10
01500-0616B
Болт
1 330 ₽/шт
10
01580-0616A
БОЛТ
102 ₽/шт
11
08321-0106A
Шайба
81 ₽/шт
12
08322-0106A
Шайба
81 ₽/шт
13
35950-14A00
REFLECTOR,REFLEX FR
2 295 ₽/шт
14
35956-19C00
Bracket, rh
15
35957-19C00
Bracket, lh
16
08316-2005A
Гайка
85 ₽/шт
