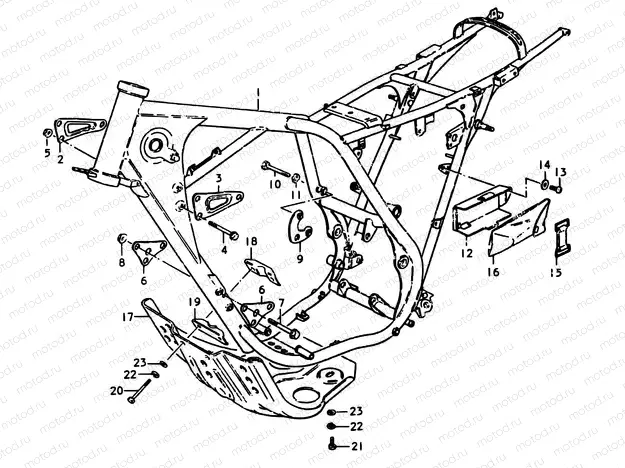

25 - FRAME

25 - FRAME

Например: 41100-32400-019

1

41100-32400-019

Frame

1

41100-32401-019

Frame

2

41991-32400

Plate, engine mounting upper rh

3

41992-32400

Plate, engine mounting upper lh

4

01550-0670B

Болт

2 030 ₽/шт

5

08319-31067

Гайка

153 ₽/шт

6

41993-32400

Plate, engine mounting lower

7

01550-08707

Болт

2 310 ₽/шт

8

08319-31087

Гайка

178 ₽/шт

9

41990-32400

Plate, engine mounting rear

10

01500-0860B

Болт

2 030 ₽/шт

11

08321-01087

Пластина замка

81 ₽/шт

12

41550-32400

Holder, tool

13

02112-0610B

Винт

81 ₽/шт

14

08322-0106A

Шайба

81 ₽/шт

15

09462-00017

Ключи

850 ₽/шт

17

11911-32501

18

11920-32400

Bracket, no.1

19

11921-32400

Bracket, no.2

20

01500-06507

Болт

1 520 ₽/шт

21

01107-06168

Vis

22

08321-01067

Шайба, стопорная

81 ₽/шт

23

08322-0106A

Шайба

81 ₽/шт
