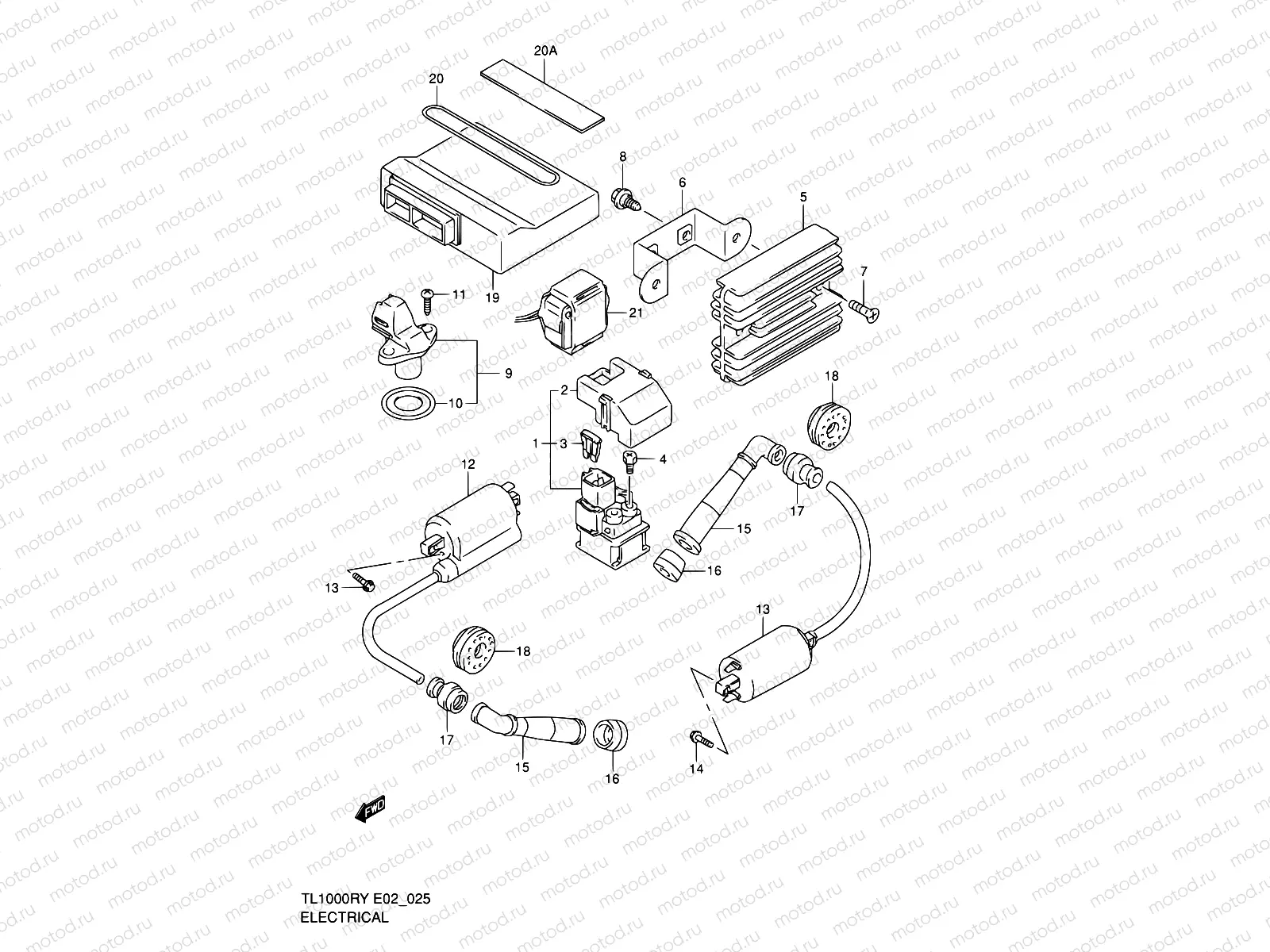

25 - ELECTRICAL

25 - ELECTRICAL

Например: 31800-21E20

1

31800-21E20

Relais - démarreur

2

31861-47E00

Крышка

841 ₽/шт

3

09481-30101

Предохранитель

129 ₽/шт

4

09128-06013

SCREW(6X8)

740 ₽/шт

5

32800-02F00

RECTIFIER ASSY

27 957 ₽/шт

6

32831-02F10

Bracket,rect ft

7

01560-0620A

Болт

82 ₽/шт

8

09113-06001

БОЛТ

129 ₽/шт

9

32160-02F00

SENSOR ASSY,CAM POSITION

15 555 ₽/шт

10

32161-02F00

PACKING

555 ₽/шт

11

02112-0616A

Болт

81 ₽/шт

12

33410-02F00

Катушка зажигания

8 211 ₽/шт

13

33420-38A11

Катушка зажигания

11 183 ₽/шт

14

02162-0520B

Болт

1 250 ₽/шт

15

33510-48B10

Свечной колпачок

1 938 ₽/шт

16

33541-23E01

SEAL,SPARK PLUG CAP

318 ₽/шт

17

33542-38B00

Уплотнение

162 ₽/шт

18

33543-02F00

COVER,SPARK PLUG CAP

1 724 ₽/шт

19

32920-02FA0

Control unit,fi

19

32920-02FB0

Control unit

19

32920-02FC0

ontrol unit, fi

19

32920-02FE0

Control unit, fi

20

33651-12910

Лента аккумулятора

1 479 ₽/шт

20

33652-07D00

КОЖУХ

299 ₽/шт

21

33960-02F01

Sensor Assy,fuel Cut

7 625 ₽/шт
