Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX-R 750 SUZUKI GSX-R750UF L4 (E21) SUZUKI 25 - CLUTCH

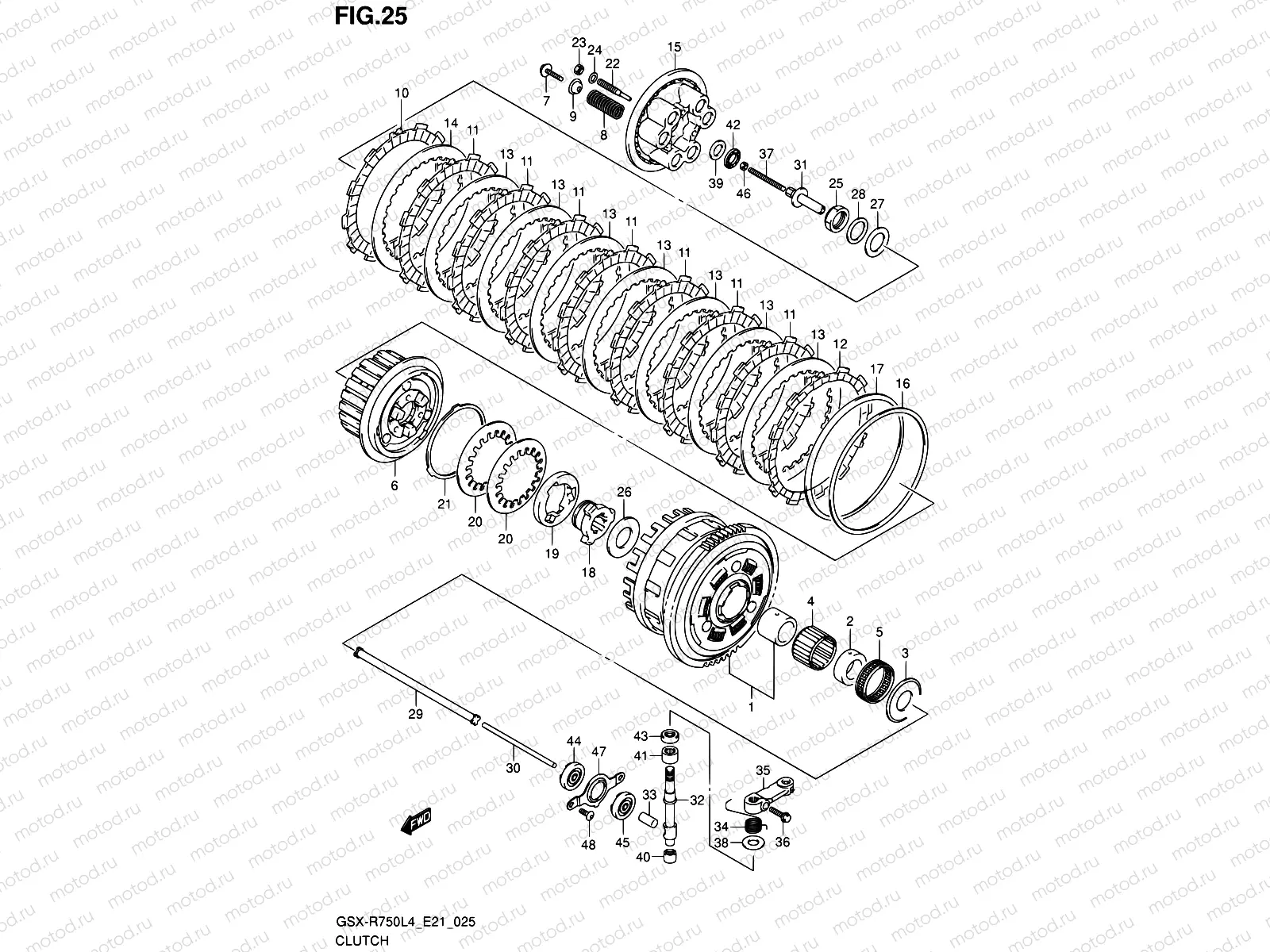

25 - CLUTCH

25 - CLUTCH

Например: 21200-01840

1

21200-01840

GEAR ASSY,PRI DRIVEN

30 889 ₽/шт

2

21253-01H10

SPACER,OIL PUMP DRIVE SPROCKET

2 092 ₽/шт

3

09160-25073

Шайба

7 230 ₽/шт

4

09263-35015

ПОДШИПНИК КАЧЕНИЯ

1 147 ₽/шт

5

09263-35045

ПОДШИПНИК

1 185 ₽/шт

6

21410-41G30

HUB,CLUTCH SLEEVE

12 668 ₽/шт

7

21412-06G00

BOLT,CLUTCH SPRING

227 ₽/шт

8

21413-01H10

SPRING,CLUTCH

473 ₽/шт

9

21414-29F00

Шайба

379 ₽/шт

10

21441-36F10

ДИСК СЦЕПЛЕНИЯ

1 530 ₽/шт

11

21441-36F30

ДИСК СЦЕПЛЕНИЯ

2 174 ₽/шт

12

21442-41G00

ДИСК СЦЕПЛЕНИЯ

2 890 ₽/шт

13

21451-41G10

Диск сцепления

1 326 ₽/шт

14

21451-41G30

Диск сцепления

1 326 ₽/шт

15

21462-41G00

DISC,CLUTCH PRESSURE

5 185 ₽/шт

16

21471-41G00

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

678 ₽/шт

17

21472-41G20

WASHER,CLUTCH PLATE WAVE

1 294 ₽/шт

18

21611-41G30

CAM,CLUTCH DRIVE

7 273 ₽/шт

19

21612-41G10

CAM,CLUTCH DRIVEN

6 021 ₽/шт

20

21621-41G00

WASHER,CAM REACTION WAVE

903 ₽/шт

21

21624-41G00

WASHER,CAM REACTION SEAT

805 ₽/шт

22

21622-41G00

LIFTER,CLUTCH PRESSURE DISC

637 ₽/шт

23

21623-41G00

NUT,CL PRESS DISC LIFTER LOCK

152 ₽/шт

24

09181-08139

SHIM ( 8.8X14X1.0 )

162 ₽/шт

25

09159-24010

ШАЙБА

824 ₽/шт

26

09160-25056

WASHER

727 ₽/шт

27

09164-24008

ШАЙБА ФОРСУНКИ

2 310 ₽/шт

28

09160-25077

WASHER(25X41X2.5)

5 200 ₽/шт

29

23110-38B00

Штанга муфты

2 100 ₽/шт

30

23111-35F00

ROD,CLUTCH PUSH,L

840 ₽/шт

31

23121-41G00

PIECE,CLUTCH PUSH

2 635 ₽/шт

32

23122-41G10

CAMSHAFT,CLUTCH RELEASE

2 972 ₽/шт

33

23123-41G00

CAP,CLUTCH PUSH ROD

697 ₽/шт

34

23125-41G00

<>

203 ₽/шт

35

23271-41G21

ARM,CLUTCH RELEASE

6 137 ₽/шт

36

09103-06223

БОЛТ

1 450 ₽/шт

37

09134-06015

SCREW,6X73

388 ₽/шт

38

09160-10020

Шайба

1 060 ₽/шт

39

09160-15045

Шайба

211 ₽/шт

40

09263-10014

ПОДШИПНИК ВЫЖИМНОЙ

921 ₽/шт

41

09263-12027

BEARING(12X18X12)

291 ₽/шт

42

09263-15003

Подшипник 15X28X2

532 ₽/шт

43

09282-10012

САЛЬНИК (10X20X6)

459 ₽/шт

44

09283-06010

САЛЬНИК

1 098 ₽/шт

45

09285-10004

САЛЬНИК

210 ₽/шт

46

08310-0006B

Гайка

81 ₽/шт

47

24741-01H00

RETAINER,CL PUSH ROD OIL SEAL

446 ₽/шт

48

09139-06153

БОЛТ

1 520 ₽/шт
