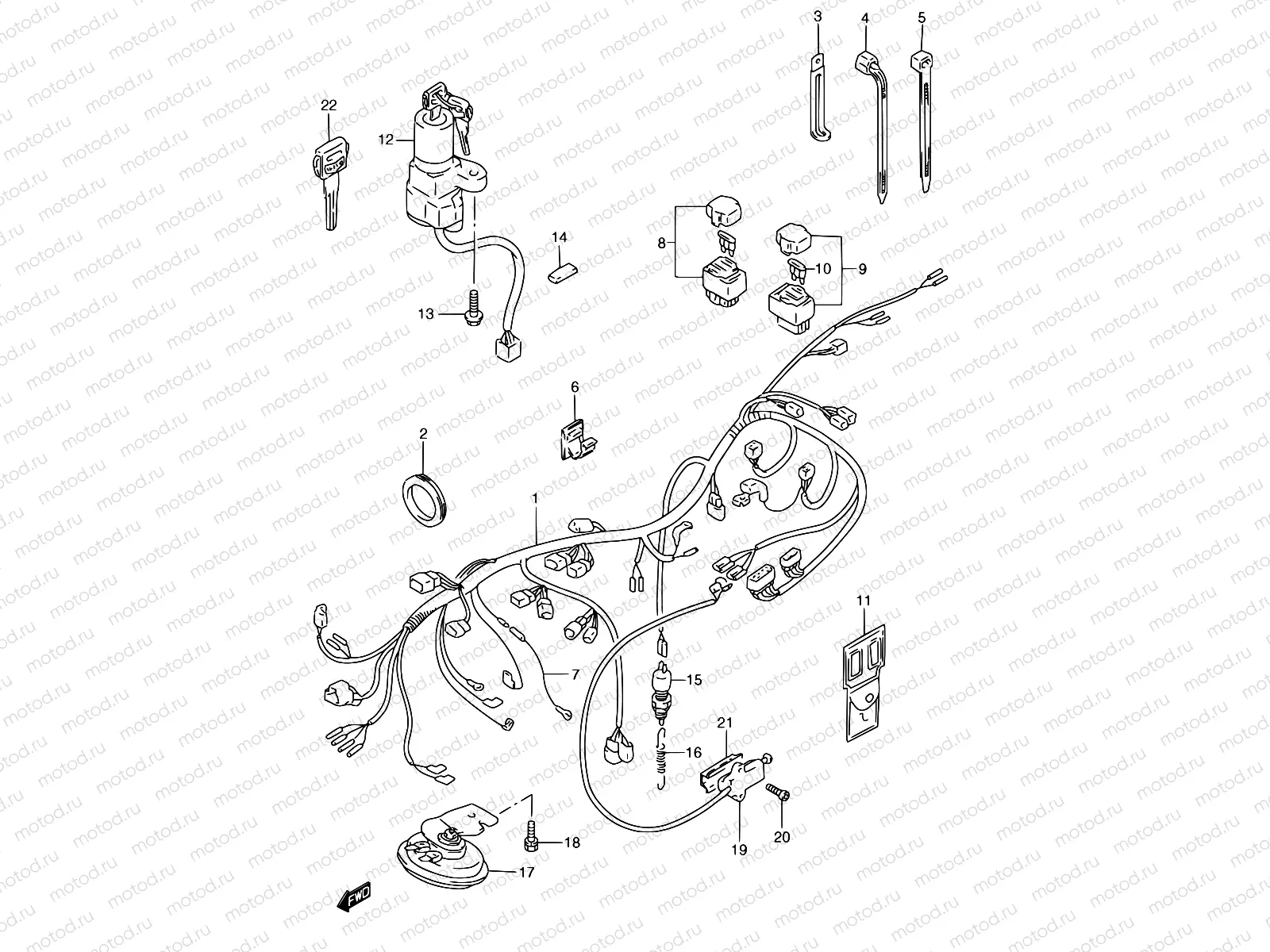

24 - WIRING HARNESS

24 - WIRING HARNESS
Например: 36610-22DK0
1
36610-22DK0
Harness,wiring
1
36610-22D60
Harness, wiring
1
36610-23D21
Harness wiring
1
36610-23DV0
Harness,wiring
2
09320-37002
Damper
3
09404-06039
Clamp(L:65)
194 ₽/шт
3
09404-06036
Clamp(L:80)
194 ₽/шт
3
09404-06435
CLAMP(L:135)
226 ₽/шт
3
09404-08420
Струбцина L:137
221 ₽/шт
3
09404-08206
CLAMP(L:65 T:0.8)
129 ₽/шт
4
09407-14403
КЛЕММА
221 ₽/шт
4
09407-18402
Струбцина (L:165)
211 ₽/шт
5
09407-14403
КЛЕММА
221 ₽/шт
6
09408-00098
Clamp
7
36851-02900
WIRE,LEAD
422 ₽/шт
8
36740-22D00
Case assy, fuse no.2
9
36740-23D00
Box assy, fuse
10
09481-10020-025
Fusible (20A)
10
09481-10005-025
Fusible (5A)
11
36738-22D01
Bag,spare fuse
12
37100-22D11
Lock assy, steering
13
09139-06026
Болт
1 410 ₽/шт
14
33651-37000
PROTECTOR(170X95X3.0)
468 ₽/шт
15
37740-45D00
SWITCH ASSY,STOP LAMP
1 224 ₽/шт
16
09443-06012
ПРУЖНА
1 840 ₽/шт
17
38500-22D00
Horn assy
17
38500-22D20
Horn assy
19
37840-32C02
Switch, side stand
20
09106-06075
БОЛТ
1 450 ₽/шт
21
37841-22D00
Heat shield, switch
22
37146-26D10
KEY,BLANK
3 315 ₽/шт
