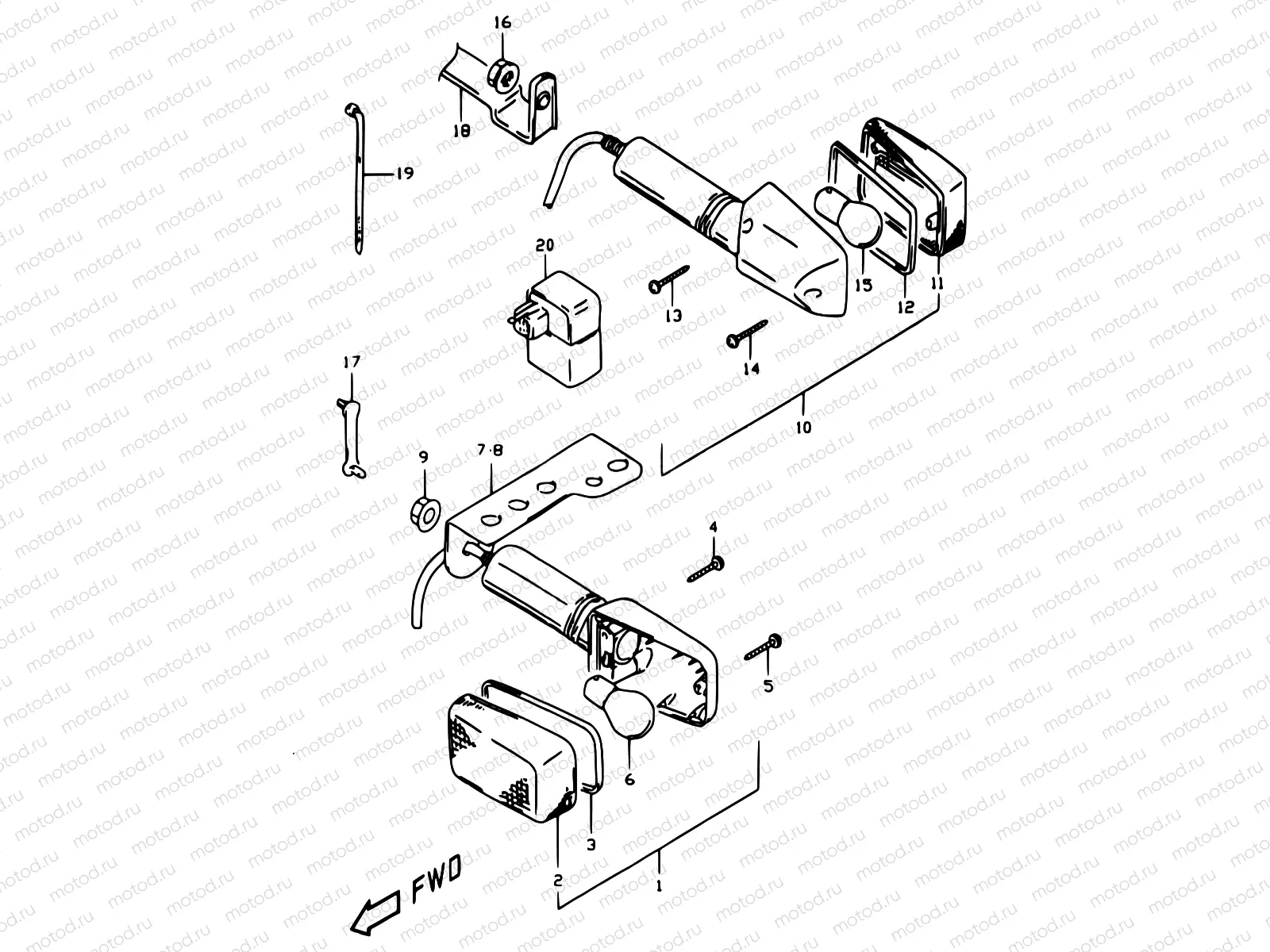

24 - TURN SIGNAL LAMP (MODEL W/X, E24)

24 - TURN SIGNAL LAMP (MODEL W/X, E24)
Например: 35601-29E30
1
35601-29E30
LAMP ASSY,FR TURN SIGNAL
5 610 ₽/шт
2
35612-17C20
Линза
816 ₽/шт
3
35613-27A00
Прокладка
274 ₽/шт
4
35623-27A00
Болт
90 ₽/шт
5
35725-40511
Болт
98 ₽/шт
6
40503-00838-120
Bulb (12V 21W BA15s)
7
35671-14D10
Bracket, front rh
8
35681-14D10
Bracket, front lh
9
08316-1010B
Гайка
85 ₽/шт
10
35603-29EK0
LAMP ASSY,RR TURNSIGNAL
7 625 ₽/шт
11
35652-17C20
Линза
653 ₽/шт
12
35613-27A00
Прокладка
274 ₽/шт
13
35623-27A00
Болт
90 ₽/шт
14
35725-40511
Болт
98 ₽/шт
15
40503-00838-120
Bulb (12V 21W BA15s)
16
08316-1010B
Гайка
85 ₽/шт
17
09407-03401
CLAMP(L:33)
97 ₽/шт
18
35620-14D02
Bracket, rr turnsignal
19
09407-14403
КЛЕММА
221 ₽/шт
20
38610-15D00
Relay assy, turnsignal
