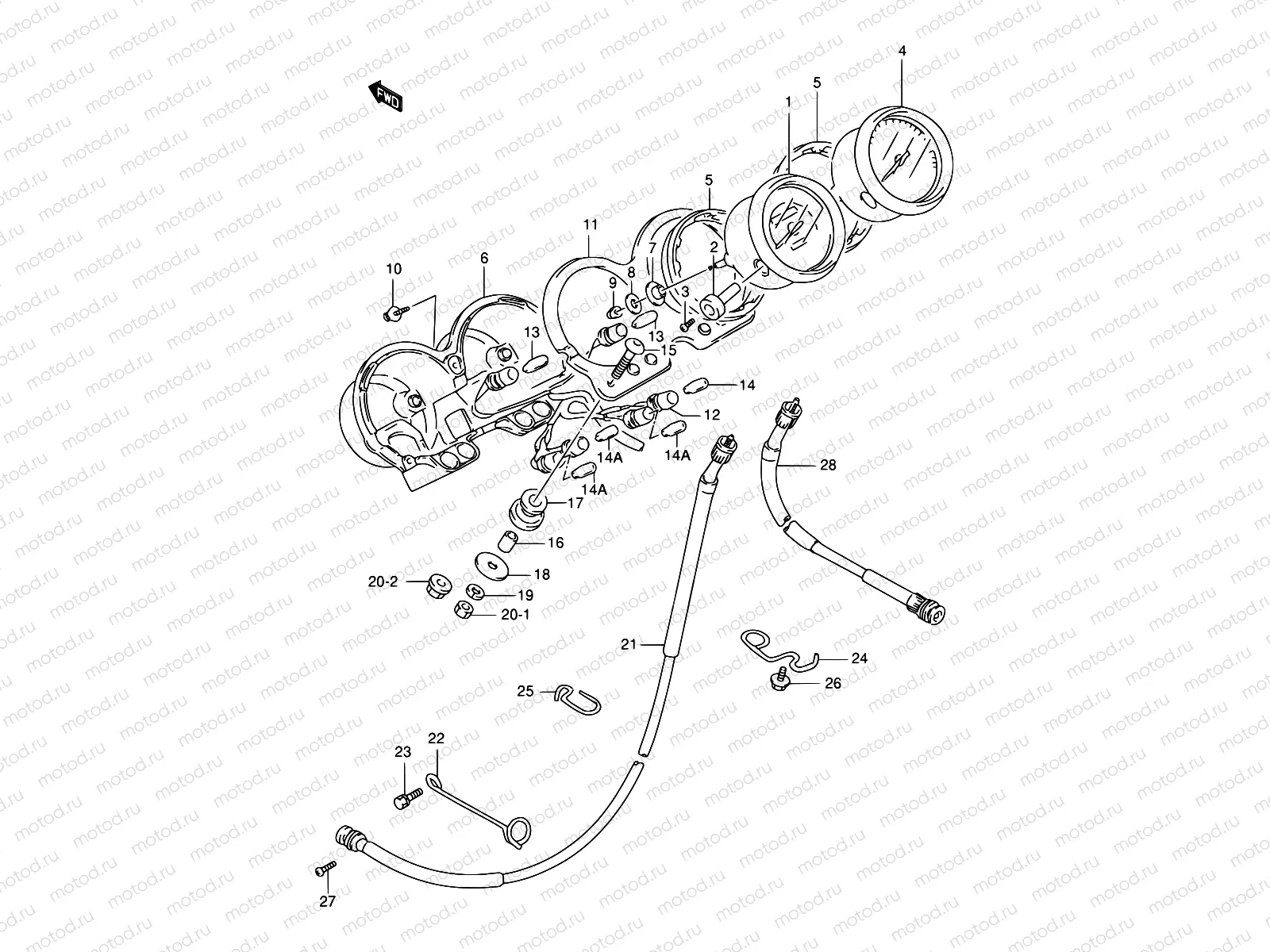

24 - SPEEDOMETER - TACHOMETER

24 - SPEEDOMETER - TACHOMETER
Например: 34110-01D20
1
34110-01D20
Speedometer
1
34110-01D30
Speedometer
2
34124-30B00
KNOB,TRIP
653 ₽/шт
3
09139-02003
Болт
940 ₽/шт
4
34210-01D20
Tachometer
5
34288-01D20
Амортизатор
606 ₽/шт
6
34193-01D20
COVER
8 428 ₽/шт
7
34189-01D20
CUSHION
422 ₽/шт
8
09160-05037
Шайба
97 ₽/шт
9
08313-1005A
Гайка
1 090 ₽/шт
10
02112-3408A
Болт
85 ₽/шт
11
34950-01D21
Кронштейн измерительных приборов
12 903 ₽/шт
11
34950-01D30
Кронштейн измерительных приборов
12 903 ₽/шт
12
34170-01D20
Socket,speedome
13
09471-12028
Лампочка
210 ₽/шт
14
09471-12077
BULB(12V1.7W,T10,WB121)
1 990 ₽/шт
14
09471-12028
Лампочка
210 ₽/шт
15
09107-06003
BOLT(6X30)
1 680 ₽/шт
16
09180-06294
Прокладка впрыска топлива
1 880 ₽/шт
17
34956-31001
CUSHION,METER BRACKET
501 ₽/шт
18
09160-06136
Шайба
102 ₽/шт
19
08321-0106A
Шайба
81 ₽/шт
20
08310-0006B
Гайка
81 ₽/шт
21
34910-01D03
Cable Assy,speedometer
5 670 ₽/шт
22
34938-45100
CLAMP,SPEEDOMETER CABLE
254 ₽/шт
23
01550-0616B
БОЛТ
81 ₽/шт
24
34938-01D01
GUIDE,SPEEDOMETER CABLE NO.2
465 ₽/шт
25
34938-01D10
GUIDE,SPEEDOMETER CABLE NO.3
379 ₽/шт
26
01550-0612B
БОЛТ
81 ₽/шт
27
02112-0516B
Болт
1 090 ₽/шт
28
34940-01D03
Cable Assy,tachometer
12 835 ₽/шт
