Главная Каталог товаров SUZUKI EPC < 124 cm³ SUZUKI TS 50 SUZUKI TS50XK G SUZUKI 24 - FUEL TANK (MODEL E/G/H)

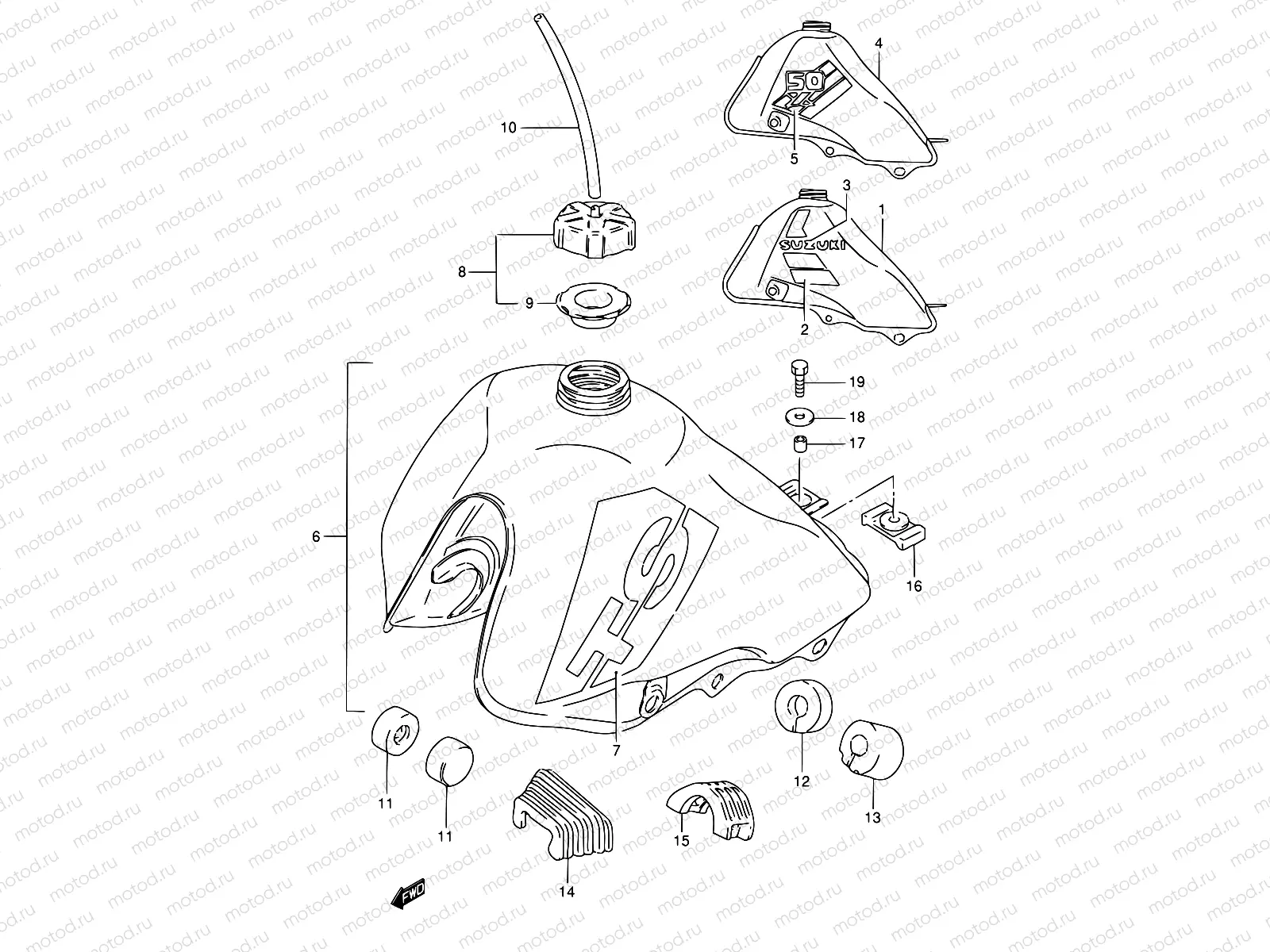

24 - FUEL TANK (MODEL E/G/H)

24 - FUEL TANK (MODEL E/G/H)

Например: 44110-13700-YD8

4

44110-13700-YD8

Tank assy,fuel

4

44110-13710-YD8

Tank assy,fuel

5

68110-13670-8DZ

.tape set, fuel tank

5

68110-13670-74H

.tape set, fuel tank

5

68110-13670-8DY

.tape set, fuel tank

5

68110-13670-8EA

.tape set, fuel tank

8

44200-05812

Fuel cap

9

44248-05211

Gasket

537 ₽/шт

10

09352-50005-600

ШЛАНГ

436 ₽/шт

11

09329-10019

Damper

12

44545-13610

Cushion, lower lh

13

44545-13610

Cushion, lower lh

14

44555-13700

Cushion,fuel ta

15

44541-13600

CUSHION,FUEL TANK CTR

2 295 ₽/шт

16

44542-13600

Cushion

17

09180-06283

Кольцо/шайба

162 ₽/шт

18

09160-06054

Шайба

129 ₽/шт

19

01500-06207

Болт

81 ₽/шт
