Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSX 600 F SUZUKI GSX600FU W SUZUKI 24 - ELECTRICAL

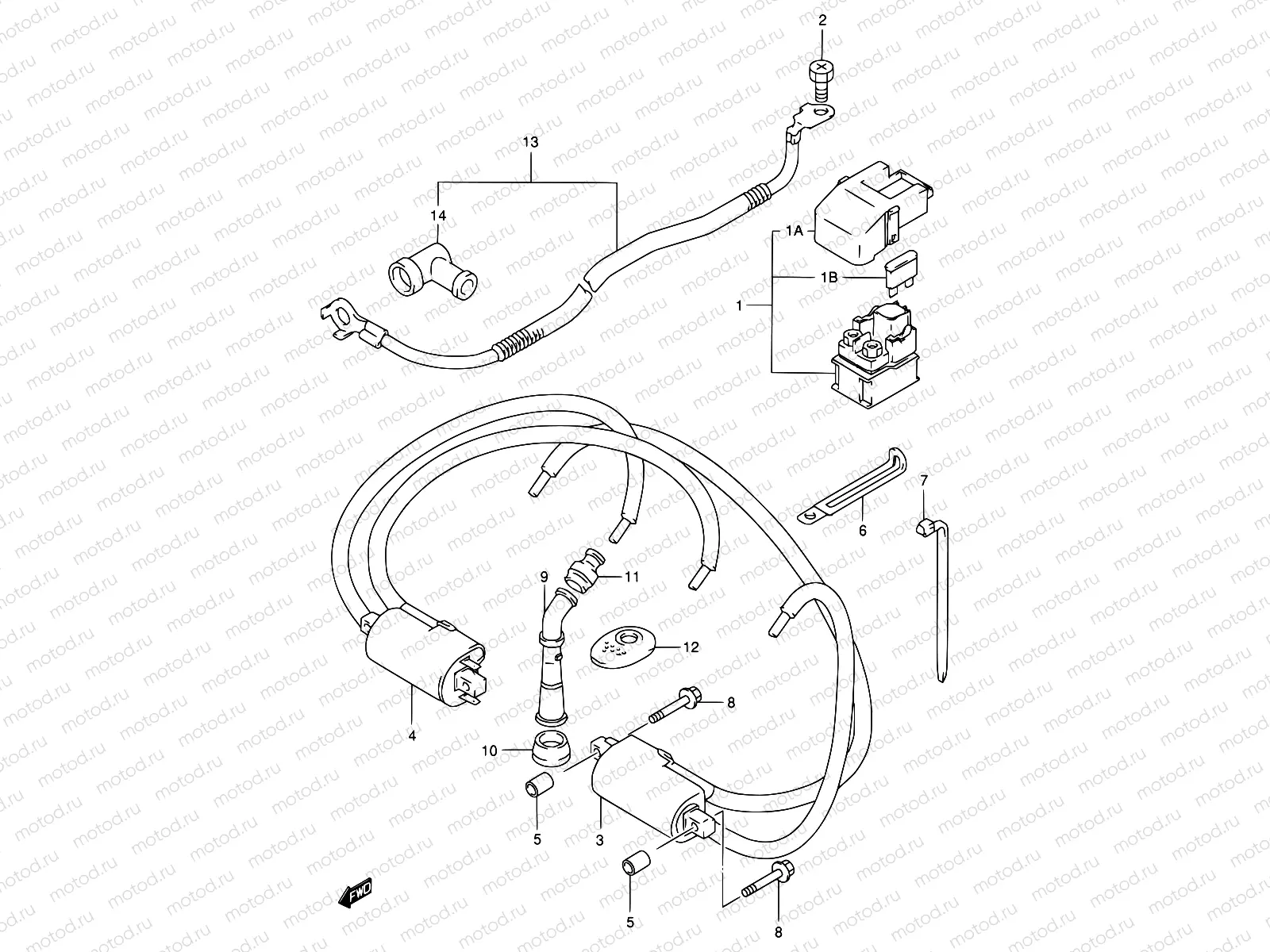

24 - ELECTRICAL

24 - ELECTRICAL

Например: 31800-21E20

1

31800-21E20

Relais - démarreur

1

31861-47E00

Крышка

841 ₽/шт

1

09481-30101

Предохранитель

129 ₽/шт

2

09128-06013

SCREW(6X8)

740 ₽/шт

3

33410-19C01

Катушка зажигания 1

8 640 ₽/шт

4

33420-19C01

Катушка зажигания 2

13 243 ₽/шт

5

09180-06174

SPACER(6.2X12X14)

3 640 ₽/шт

6

09404-06039

Clamp(L:65)

194 ₽/шт

7

09407-18402

Струбцина (L:165)

211 ₽/шт

8

01550-0645A

Болт

102 ₽/шт

9

33510-48B10

Свечной колпачок

1 938 ₽/шт

10

33541-23E01

SEAL,SPARK PLUG CAP

318 ₽/шт

11

33542-38B00

Уплотнение

162 ₽/шт

12

33543-48B00

COVER,SPARK PLUG CAP

2 665 ₽/шт

13

33810-08F00

WIRE,BATTERY MINUS

2 053 ₽/шт

14

31861-48B10

Крышка

344 ₽/шт
