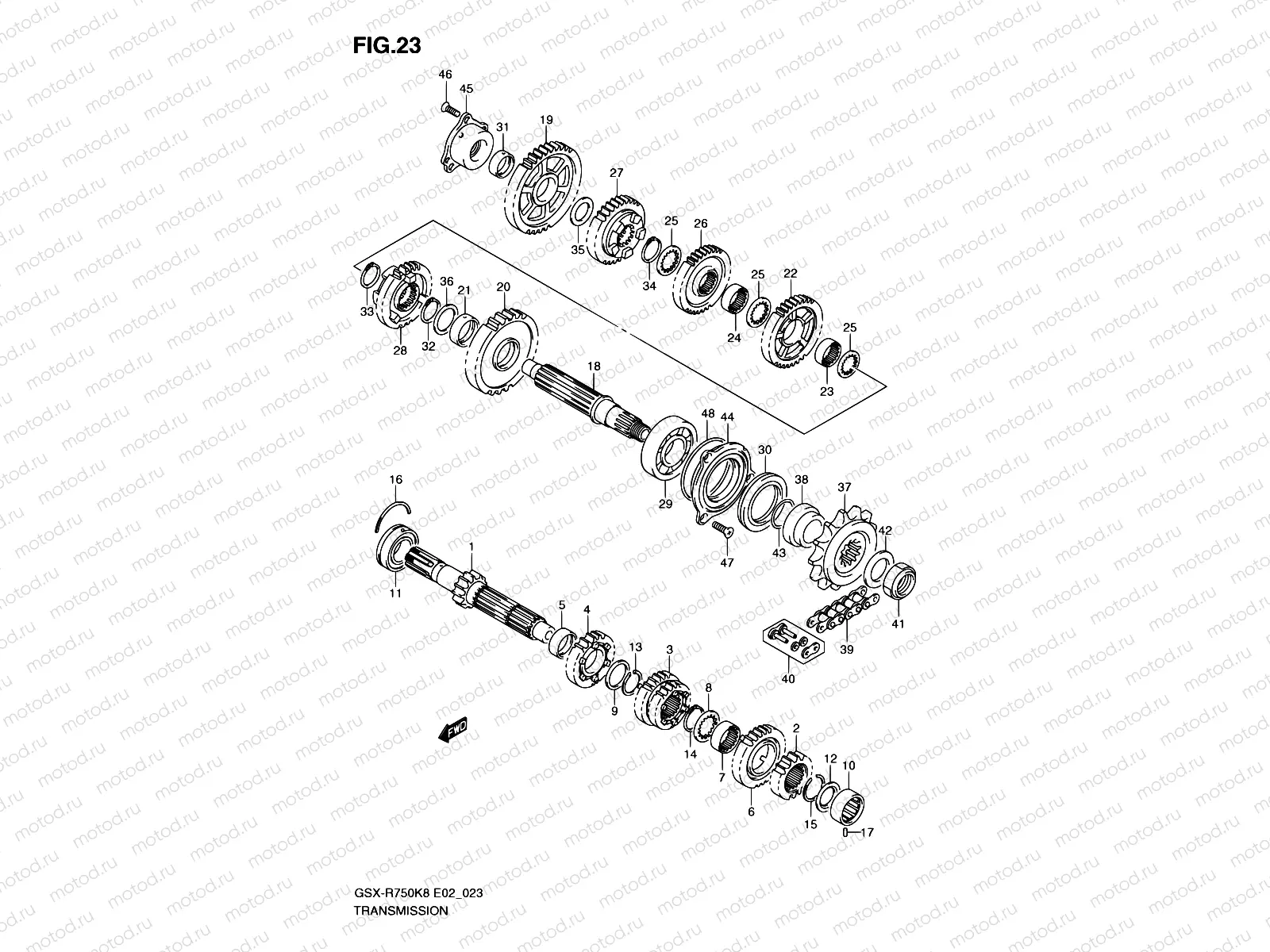

23 - TRANSMISSION

23 - TRANSMISSION

Например: 24120-01H00

1

24120-01H00

SHAFT,COUNTER

32 130 ₽/шт

2

24221-35F00

GEAR,2ND DRIVE

5 943 ₽/шт

3

24231-01H00

GEAR,3RD & 4TH DRIVE

10 948 ₽/шт

4

24251-01H00

GEAR,5TH DRIVE

8 719 ₽/шт

5

24252-35F00

BUSH,5TH DRIVE GEAR

1 259 ₽/шт

6

24261-01H01

GEAR,6TH DRIVEN(NT:24)

8 719 ₽/шт

7

24262-35F00

BUSH,6TH DRIVE GEAR

1 576 ₽/шт

8

09167-27001

ШАЙБА

204 ₽/шт

9

09160-27008

Шайба

238 ₽/шт

10

09263-20087

BEARING(20X34X13.5)

2 210 ₽/шт

11

09262-25150

ПОДШИПНИК

2 746 ₽/шт

12

09285-20006

Сальник

598 ₽/шт

13

09380-27006

КЛИПС

187 ₽/шт

14

09380-27006

КЛИПС

187 ₽/шт

15

09380-27004

КЛИПС

187 ₽/шт

16

09390-62012

C RING

4 460 ₽/шт

17

09261-06003

ШТИФТ

119 ₽/шт

18

24131-01H01

Вал ведущий

22 287 ₽/шт

19

24311-35F20

GEAR,1ST DRIVEN

8 755 ₽/шт

20

24321-35F11

GEAR,2ND DRIVEN(NT:39)

7 273 ₽/шт

21

24322-35F00

BUSH,2ND DRIVEN GEAR

1 105 ₽/шт

22

24331-40F30

GEAR,3RD DRIVEN

8 837 ₽/шт

23

24262-17E01

BUSH

2 561 ₽/шт

24

24262-17E01

BUSH

2 561 ₽/шт

25

24333-02F00

ШАЙБА КПП

272 ₽/шт

26

24341-40F20

GEAR,4TH DRIVEN

9 032 ₽/шт

27

24351-01H20

GEAR,5TH DRIVEN(NT:31)

8 837 ₽/шт

28

24361-01H00

GEAR,6TH DRIVEN

9 032 ₽/шт

29

09262-28045

ПОДШИПНИК

3 473 ₽/шт

30

09283-42018

Уплотнение вала

2 100 ₽/шт

31

09300-22008

Втулка

791 ₽/шт

32

09380-27006

КЛИПС

187 ₽/шт

33

09380-27006

КЛИПС

187 ₽/шт

34

09380-27006

КЛИПС

187 ₽/шт

35

09181-22223

SHIM(22X34X1)

194 ₽/шт

36

09160-27008

Шайба

238 ₽/шт

37

27510-20A22

Sprocket,engine

7 480 ₽/шт

38

27531-01H00

SPACER,ENGINE SPROCKET

3 553 ₽/шт

39

27600-33E40-116

Цепь

27 200 ₽/шт

40

27620-33E40

Замок цепи

1 099 ₽/шт

41

09159-20004

Гайка

759 ₽/шт

42

09160-25009

WASHER(25X41X3)

488 ₽/шт

43

09280-24010

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ, РЕЗИНА

323 ₽/шт

44

24751-01H10

RETAINER,DRIVE SHAFT BEARING,L

8 876 ₽/шт

45

24771-01810

HOUSING,DRIVE SHAFT SET

8 641 ₽/шт

46

09139-06159

SCREW(6X20)

129 ₽/шт

47

09139-06159

SCREW(6X20)

129 ₽/шт

48

09280-68009

O RING(D:1.9,ID:67.5)

16 190 ₽/шт
