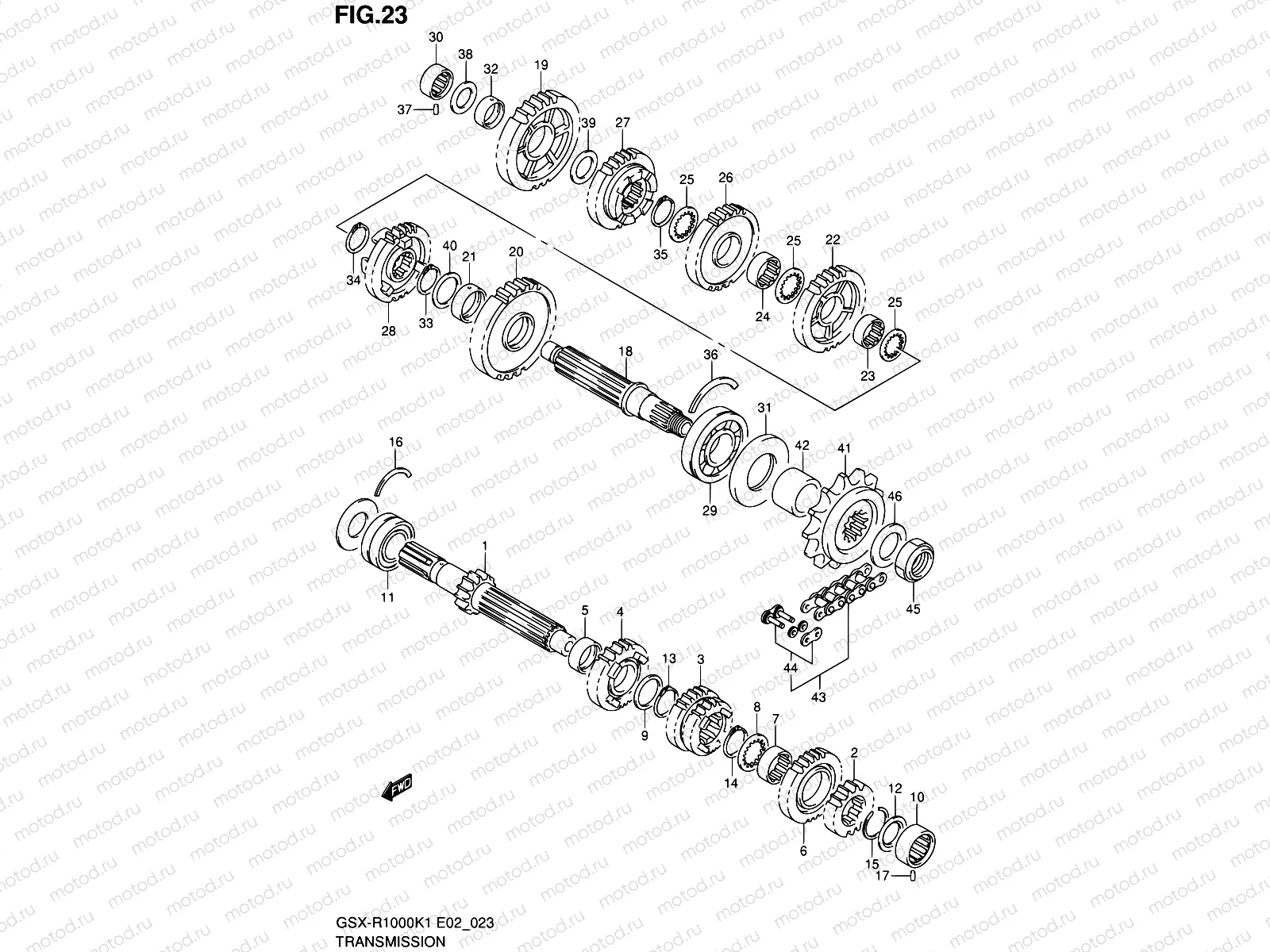

23 - TRANSMISSION

23 - TRANSMISSION

Например: 24120-40F00

1

24120-40F00

SHAFT,COUNTER

17 360 ₽/шт

2

24221-40F00

GEAR,2ND DRIVE

6 256 ₽/шт

3

24231-40F00

GEAR,3RD & 4TH DRIVE

20 137 ₽/шт

4

24251-40F00

Gear,5th drive

5

24252-35F00

BUSH,5TH DRIVE GEAR

1 259 ₽/шт

6

24261-40F00

GEAR,6TH DRIVE

11 104 ₽/шт

7

24262-35F00

BUSH,6TH DRIVE GEAR

1 576 ₽/шт

8

09167-27003

ШАЙБА

255 ₽/шт

9

09181-27014

SHIM(27X36X2.5)

306 ₽/шт

10

09263-20087

BEARING(20X34X13.5)

2 210 ₽/шт

11

09267-25013

BEARING(25X52X20.6)

4 361 ₽/шт

12

09285-20006

Сальник

598 ₽/шт

13

09380-27006

КЛИПС

187 ₽/шт

14

09380-27006

КЛИПС

187 ₽/шт

15

09380-27004

КЛИПС

187 ₽/шт

16

09390-58001

ПОЛУКОЛЬЦО GV 2.0

1 720 ₽/шт

17

09261-06003

ШТИФТ

119 ₽/шт

18

24131-40F00

Вал ведущий

22 287 ₽/шт

19

24311-40F00

Gear,1st driven

20

24321-40F00

GEAR,2ND DRIVEN

9 501 ₽/шт

21

24322-02F01

BUSH,2ND DRIVEN GEAR

1 079 ₽/шт

22

24331-40F00

GEAR,3RD DRIVEN

12 825 ₽/шт

23

24262-17E01

BUSH

2 561 ₽/шт

24

24262-17E01

BUSH

2 561 ₽/шт

25

24333-02F00

ШАЙБА КПП

272 ₽/шт

26

24341-40F00

Gear,4th driven

27

24351-40F00

Gear,5th driven

28

24361-40F00

Gear,6th driven

29

09262-28025

ПОДШИПНИК

6 622 ₽/шт

30

09263-20087

BEARING(20X34X13.5)

2 210 ₽/шт

31

09283-36008

Сальник (36X70X6)

1 276 ₽/шт

32

24312-02F00

ВТУЛКА

1 580 ₽/шт

33

09380-27006

КЛИПС

187 ₽/шт

34

09380-27006

КЛИПС

187 ₽/шт

35

09380-27006

КЛИПС

187 ₽/шт

36

09390-70001

C RING

4 690 ₽/шт

37

09261-06003

ШТИФТ

119 ₽/шт

38

09181-20251

Шайба (T:1.0)

172 ₽/шт

39

09181-22223

SHIM(22X34X1)

194 ₽/шт

40

09160-27008

Шайба

238 ₽/шт

41

27510-21A31

ЗВЕЗДОЧКА

10 166 ₽/шт

42

27531-40F00

SPACER,ENG SPROCKET

1 892 ₽/шт

43

27600-40F20-110

Цепь

30 107 ₽/шт

44

27620-40F00

Привод передний внутрений левый

2 232 ₽/шт

45

09159-20004

Гайка

759 ₽/шт

46

09160-25035

Шайба

226 ₽/шт
