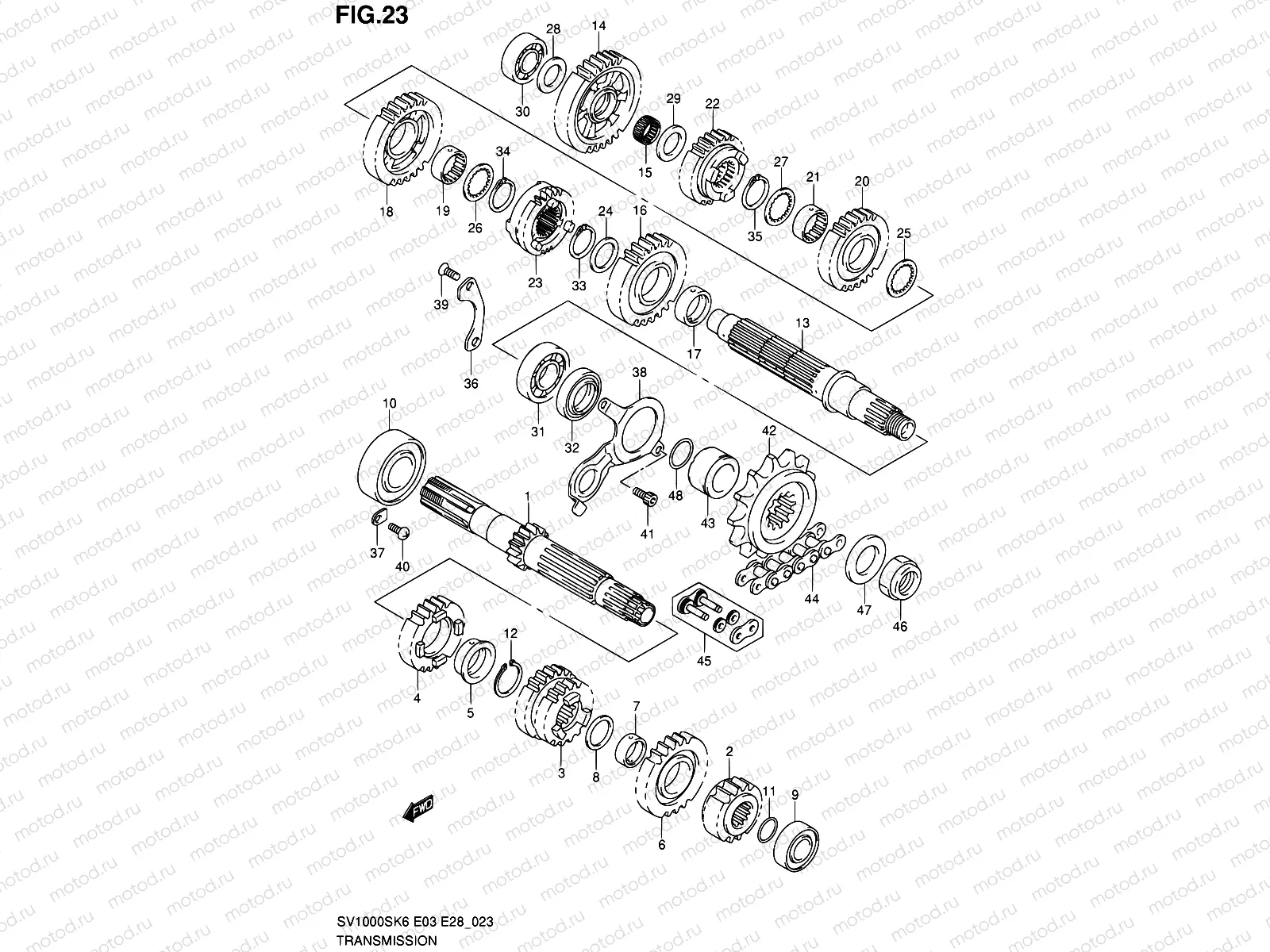

23 - TRANSMISSION

23 - TRANSMISSION

Например: 24120-16G00

1

24120-16G00

SHAFT,COUNTER(NT:12)

18 182 ₽/шт

2

24221-02F01

GEAR,2ND DRIVE(NT:15)

5 943 ₽/шт

3

24231-02F30

GEAR,3RD & 4TH DRIVE

10 518 ₽/шт

4

24251-02F11

GEAR,5TH DRIVE(NT:23)

8 485 ₽/шт

5

24252-02F10

BUSH,5TH DRIVE GEAR

1 947 ₽/шт

6

24261-02F20

GEAR,6TH DRIVE(NT:24)

8 485 ₽/шт

7

24262-02F00

BUSH,6TH DRIVE GEAR

1 415 ₽/шт

8

09181-22167

SHIM,22X30X1

194 ₽/шт

9

09262-20139

Подшипник

1 938 ₽/шт

10

09262-25073

ПОДШИПНИК КАЧЕНИЯ

1 550 ₽/шт

11

09280-17004

O RING(D:1.9,ID:16.6)

1 840 ₽/шт

12

09380-27001

CIRCLIP

1 170 ₽/шт

13

24130-02F10

Вал ведущий

21 701 ₽/шт

14

24311-02F10

Gear,1st driven

15

09263-22068

BEARING(22X26X11)

590 ₽/шт

16

24321-02F11

GEAR,2ND DRIVEN(NT:29)

7 820 ₽/шт

17

24322-02F01

BUSH,2ND DRIVEN GEAR

1 079 ₽/шт

18

24331-02F12

Gear, 3rd driven (nt:27)

19

24332-17E20

BUSH,3RD DRIVEN GEAR

2 295 ₽/шт

20

24341-02F30

Gear,4Th Driven

8 837 ₽/шт

21

24332-17E20

BUSH,3RD DRIVEN GEAR

2 295 ₽/шт

22

24351-02F20

GEAR,5TH DRIVEN

8 641 ₽/шт

23

24361-02F30

GEAR,6TH DRIVEN(NT:24)

8 837 ₽/шт

24

09160-27008

Шайба

238 ₽/шт

25

09167-27002

WASHER,LOCK

4 140 ₽/шт

26

24333-02F00

ШАЙБА КПП

272 ₽/шт

27

24333-02F00

ШАЙБА КПП

272 ₽/шт

28

09181-20251

Шайба (T:1.0)

172 ₽/шт

29

09181-22223

SHIM(22X34X1)

194 ₽/шт

30

09262-20082

ПОДШИПНИК

1 535 ₽/шт

31

09262-28040

BEARING(28X68X20)

9 032 ₽/шт

32

09283-38020

SEAL,OIL(38X52X8)

3 230 ₽/шт

33

09380-27001

CIRCLIP

1 170 ₽/шт

34

09380-27001

CIRCLIP

1 170 ₽/шт

35

09380-27001

CIRCLIP

1 170 ₽/шт

36

24741-06G00

RETAINER,DRIVE SHAFT BEARING

399 ₽/шт

37

24741-21A00

RETAINER

170 ₽/шт

38

24751-06G00

RETAINER,DRIVE SHAFT OIL SEAL

751 ₽/шт

39

09126-06011

SCREW,6X12

81 ₽/шт

40

02112-0612B

Болт

85 ₽/шт

41

07130-0612B

Болт

1 840 ₽/шт

42

27510-21A31

ЗВЕЗДОЧКА

10 166 ₽/шт

43

27531-16G00

SPACER,ENGINE SPROCKET

2 737 ₽/шт

44

27600-16G00-110

Цепь

27 761 ₽/шт

45

27620-16G00

JOINT SET,CHAIN

1 455 ₽/шт

46

09159-20004

Гайка

759 ₽/шт

47

09181-25268

Шайба

194 ₽/шт

48

09280-24010

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ, РЕЗИНА

323 ₽/шт
