Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI RM 125 SUZUKI RM125 L (E03,E28,E33) SUZUKI 22A - FRONT DAMPER (MODEL L)

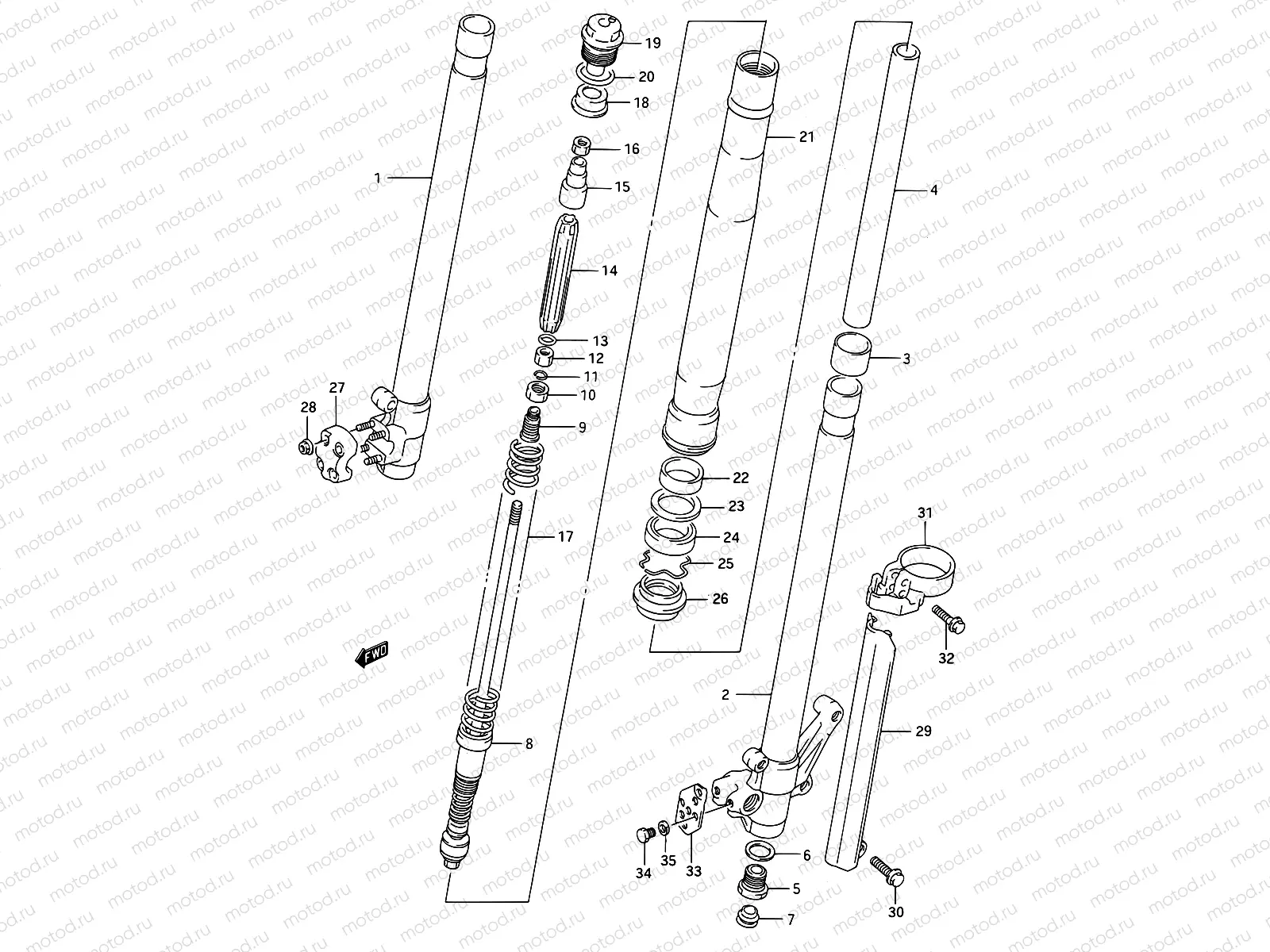

22A - FRONT DAMPER (MODEL L)

22A - FRONT DAMPER (MODEL L)
Например: 51103-27C30
0
51103-27C30
Damper assy, rh
0
51104-27C30
Damper assy, lh
1
51110-27C20
.tube, inner rh
2
51120-27C20
.tube, inner lh
3
51121-26E10
PISTON
1 846 ₽/шт
4
51146-27C20
.cylinder
5
51170-28C50
Valve assy,base
6
51148-01B40
Gasket
7
51189-28C00
ap,fr fork
8
51128-27C30
Rod assy,piston
9
51812-27C20
.piece, holder
10
51811-27C20
.piece, oil lock
11
51813-27C20
.ring, snap
12
51814-27C20
.nut, piece
13
09280-12008
O RING(D:2.4,ID:12.3)
238 ₽/шт
14
51172-27C20
.guide, spring
15
51127-27C20
.spacer, guide spring
16
08310-00127
Гайка
85 ₽/шт
17
51171-27C20
.spring
18
51175-27C20
.guide, spring washer
19
51351-27C20
ap,fork inner
20
51117-28C01
O Ring
297 ₽/шт
21
51130-27C20
.tube, outer
22
51167-26E10
Металическая вставка
765 ₽/шт
23
51158-05A00
Шайба
299 ₽/шт
24
51153-27C20
Сальник
2 720 ₽/шт
25
51156-49440
RING,OIL SEAL STOPPER
204 ₽/шт
26
51173-27C20
Dust seal,fr fo
27
51132-28C00
.holder, axle rh
28
08319-31067
Гайка
153 ₽/шт
29
51201-28C00
Protector,fr fo
29
51211-28C00
Protector
30
01547-06357
Болт
1 250 ₽/шт
31
51201-27C20
Guide,protector
31
51211-27C20
Guide,protector
32
01550-05353
33
59248-28C00
DEKSEL
34
01500-0510B
Болт
85 ₽/шт
35
08321-0105A
Пластина замка
81 ₽/шт
