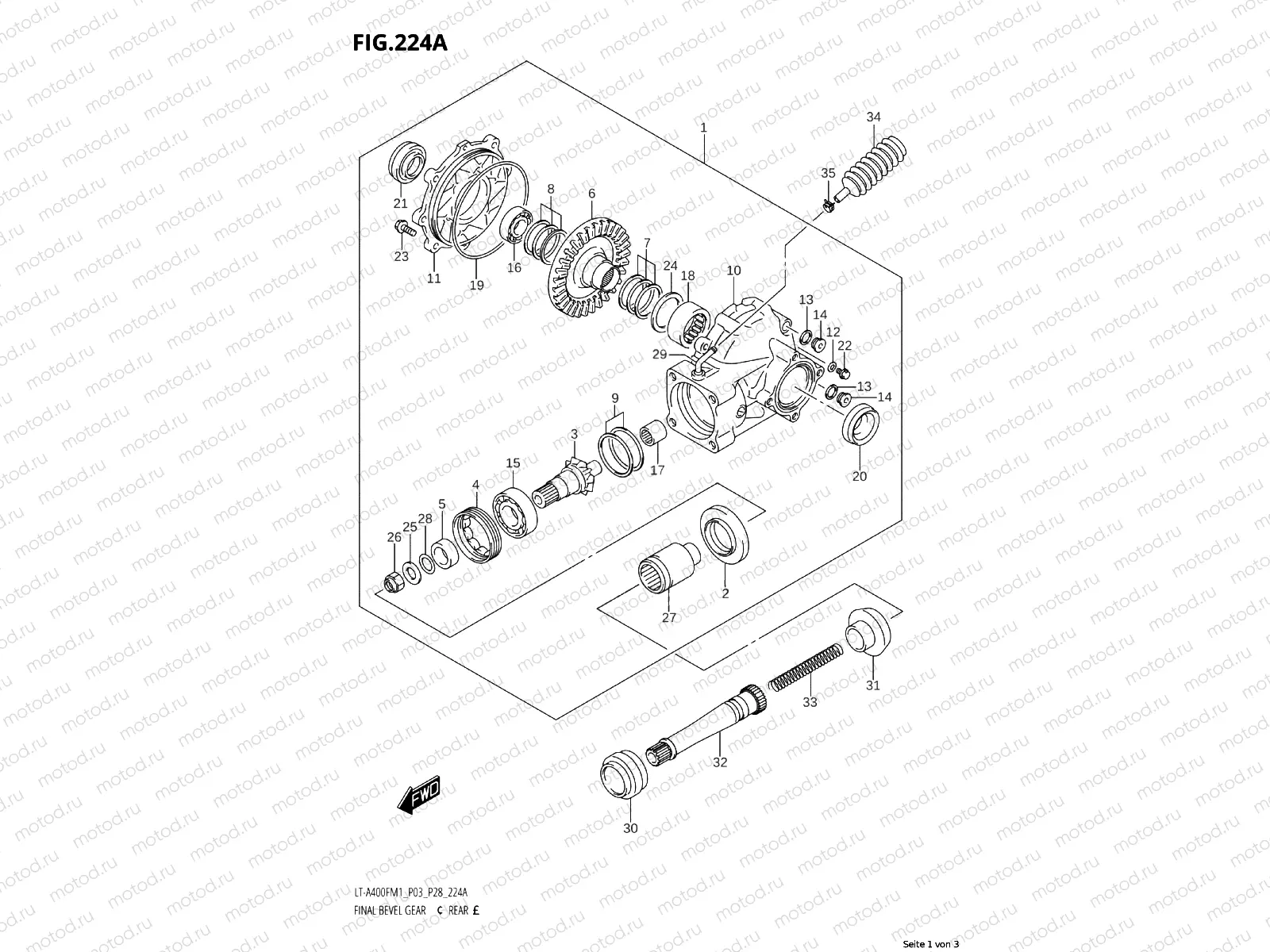

224A - FINAL BEVEL GEAR (REAR)

224A - FINAL BEVEL GEAR (REAR)
Например: 27410-38F50
1
27410-38F50
Case assy,rear
2
27156-27H00
Seal,final driv
3
27311-27HM0
Gear,final driv
4
27312-38F00
Stopper,final d
5
27316-38FM0
Spacer,rear fin
6
27321-27HM0
Gear,final driv
10
27450-27HM0
Case,rear final
11
27461-38FM0
Case,rear final
15
27405-38FN0
Bearing,final d
16
27405-38FP0
Bearing,final d
17
27405-38FR0
Bearing,final d
18
27405-38FS0
Bearing,final d
19
27405-38FT0
O ring,bearing
22
27401-38FM0
Bolt,oil check
23
27401-38FN0
Bolt,rear final
24
27407-38FN0
Washer,final dr
26
09159-16003
ГАЙКА
178 ₽/шт
27
27171-27HM0
Coupling,rr fin
28
27405-27HM0
O ring,coupling
29
09364-08009
Union
30
27153-27H01
Boot,rr prop sh
30
27153-27H01
Boot,rr prop sh
31
27153-27H21
Boot,joint shaf
31
27153-27H21
Boot,joint shaf
32
27155-27H10
Shaft,rear prop
33
27192-31G10
Spring,rear pro
34
27491-38F00
Case,breather
