Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI DR 350 SUZUKI DR350SU P SUZUKI (VIN: SK42B) 22 - HEADLAMP (MODEL L/M/N/P)

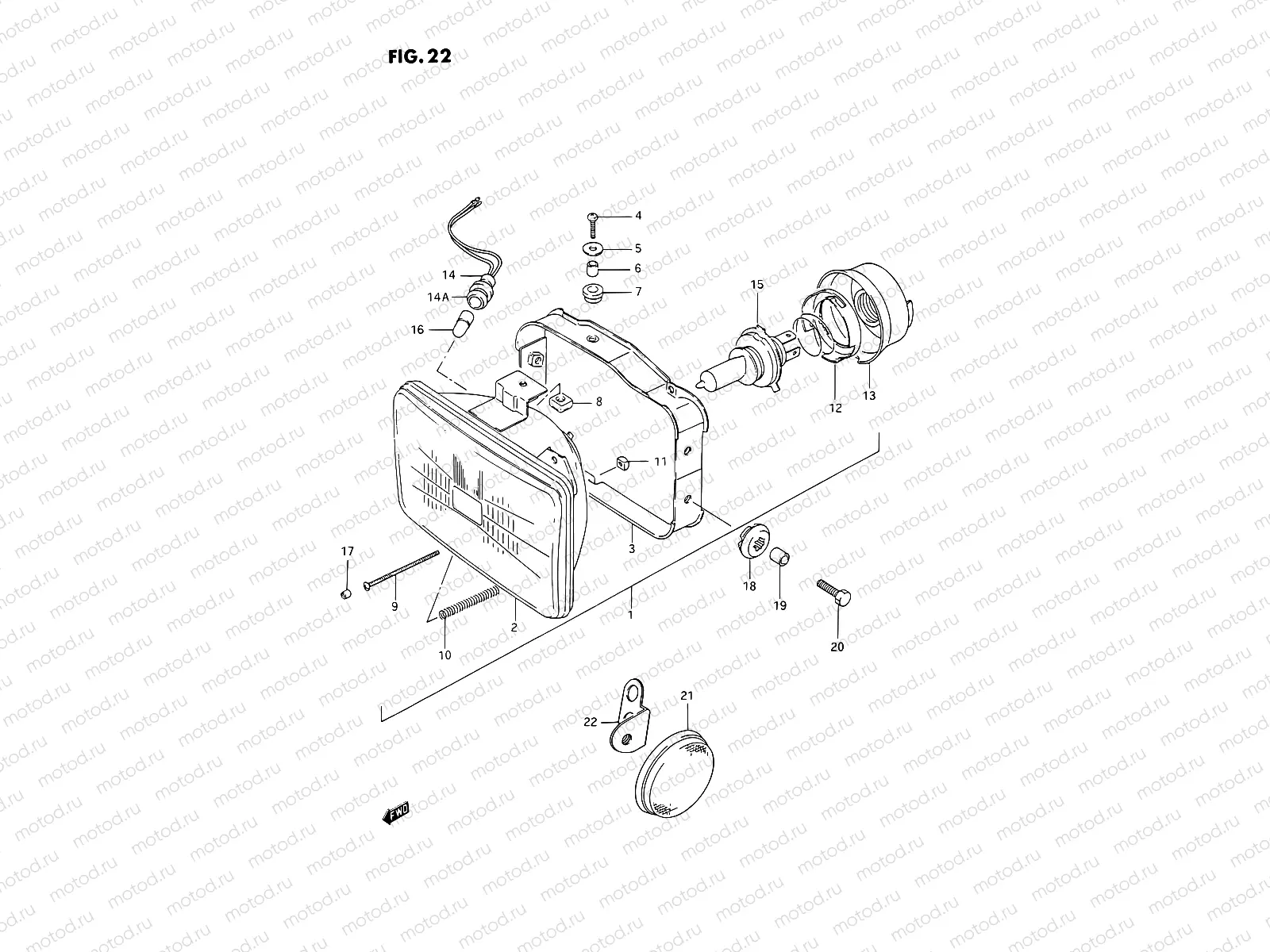

22 - HEADLAMP (MODEL L/M/N/P)

22 - HEADLAMP (MODEL L/M/N/P)
Например: 35100-14A51-999
1
35100-14A51-999
Optique de phare
1
35100-14D00
Headlamp assy
2
35121-14A51
LAMP UNIT
11 613 ₽/шт
2
35121-14D00
.lamp unit
3
35141-14A00
HOUSING
3 995 ₽/шт
4
02112-75207
Болт
1 640 ₽/шт
5
09160-05045
Шайба
136 ₽/шт
6
35133-14A00
Кольцо/шайба
250 ₽/шт
7
35139-45230
CUSHION
102 ₽/шт
8
35135-45900
Гайка
170 ₽/шт
9
35151-45900
Винт
301 ₽/шт
10
35154-49200
Пружина
289 ₽/шт
11
35135-45600
Гайка
207 ₽/шт
13
35173-01440
COVER,SOCKET
899 ₽/шт
14
36118-49320
SOCKET
864 ₽/шт
14
36116-22630
JOINT,RUBBER
422 ₽/шт
15
K9206-91002
Bulb,12v 60/55w
16
09471-12001-LCP
Bulb 6v/1,7w
16
09471-12063-LCP
Bulb 6v/1,7w
17
35158-43400
CAP,SCREW
133 ₽/шт
18
09320-09018
САЙЛЕНТБЛОК
1 250 ₽/шт
19
09180-06138
SPACER(6.3X9.1X11.5)
1 560 ₽/шт
20
01500-06207
Болт
81 ₽/шт
21
35950-14A00
REFLECTOR,REFLEX FR
2 295 ₽/шт
22
35956-14D00
Bracket, r
22
35957-14D00
Bracket, l
