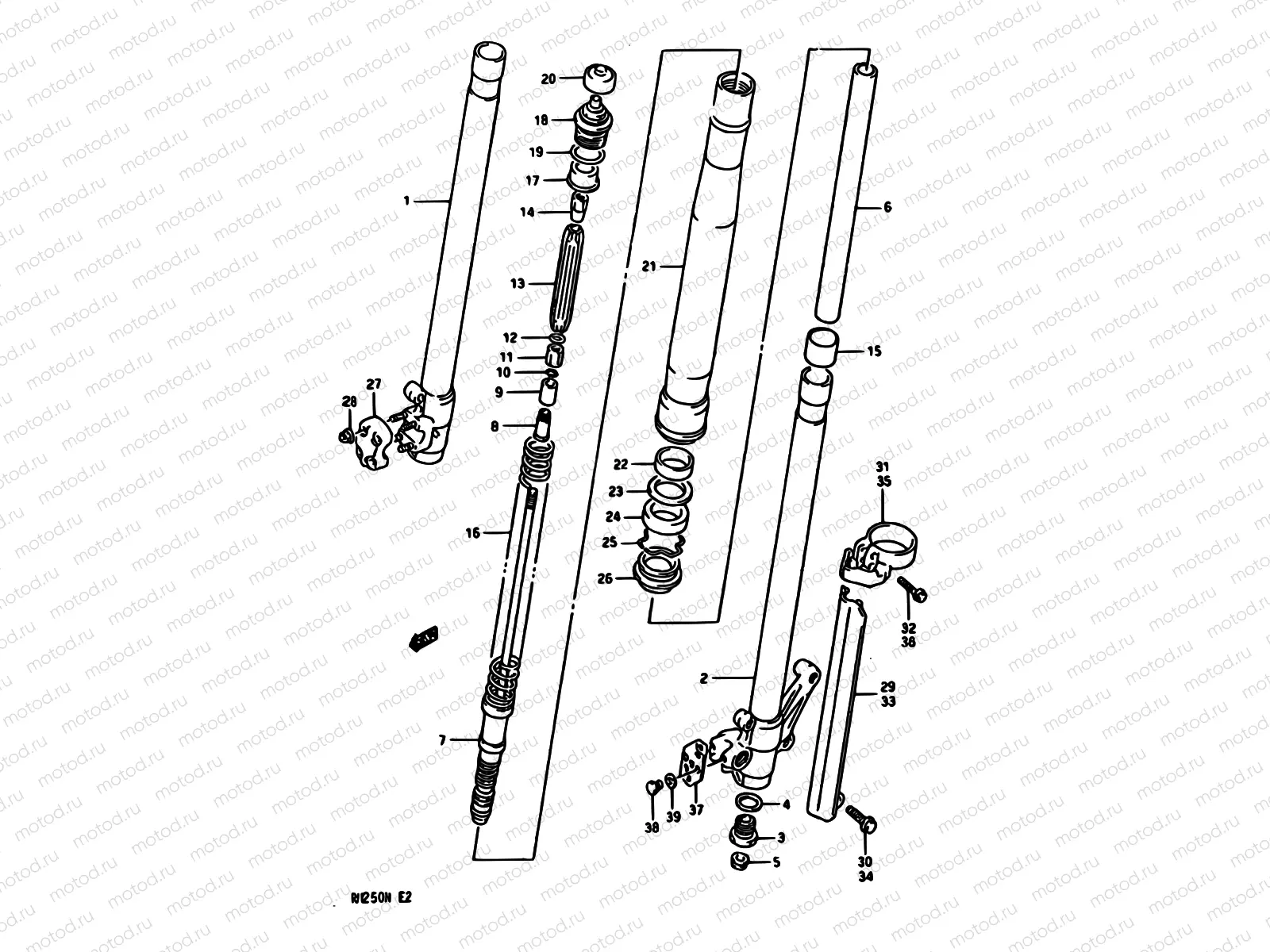

22 - FRONT DAMPER (MODEL K)

22 - FRONT DAMPER (MODEL K)

Например: 51110-28C20

1

51110-28C20

.tube,inner rh

2

51120-28C20

.tube,inner lh

3

51170-28C00

.valve assy,base

4

51148-01B40

Gasket

5

51189-28C00

ap,fr fork

6

51146-28C00

.cylinder

7

51128-28C00

.rod assy,piston

8

51812-28C00

.piece,holder

9

51811-28C00

.piece,oil lock

10

51813-28C00

.ring,snap

11

51814-28C00

.nut,piece

12

09280-12008

O RING(D:2.4,ID:12.3)

238 ₽/шт

12

51103-28C20

Damper assy,rh

12

51104-28C30

Damper assy,lh

13

51172-28C00

.guide,spring lower

14

51129-27C00

Nut

15

51121-26E10

PISTON

1 846 ₽/шт

16

51171-28C00

.spring

17

51175-28C00

.guide,spring upper

18

51351-28C00

Крышка

10 479 ₽/шт

19

51117-28C01

O Ring

297 ₽/шт

20

51188-01B20

Cap

21

51130-28C20

.tube,outer

22

51167-26E10

Металическая вставка

765 ₽/шт

23

51158-05A00

Шайба

299 ₽/шт

24

51153-27C20

Сальник

2 720 ₽/шт

25

51156-49440

RING,OIL SEAL STOPPER

204 ₽/шт

26

51173-28C00

SEAL,DUST

1 196 ₽/шт

27

51132-28C00

.holder,axle

28

08319-31067

Гайка

153 ₽/шт

29

51201-28C00

Protector,fr fo

30

01547-06357

Болт

1 250 ₽/шт

31

51201-27C20

Guide,protector

32

01550-05353

33

51211-28C00

Protector

34

01547-06357

Болт

1 250 ₽/шт

35

51211-27C20

Guide,protector

36

01550-05353

37

59248-28C00

DEKSEL

38

01500-0510B

Болт

85 ₽/шт

39

08321-0105A

Пластина замка

81 ₽/шт
