Главная Каталог товаров SUZUKI EPC < 124 cm³ SUZUKI DS 80 SUZUKI DS80 L (E24) SUZUKI 22 - FRAME COVER (MODEL H/J/K/L/M)

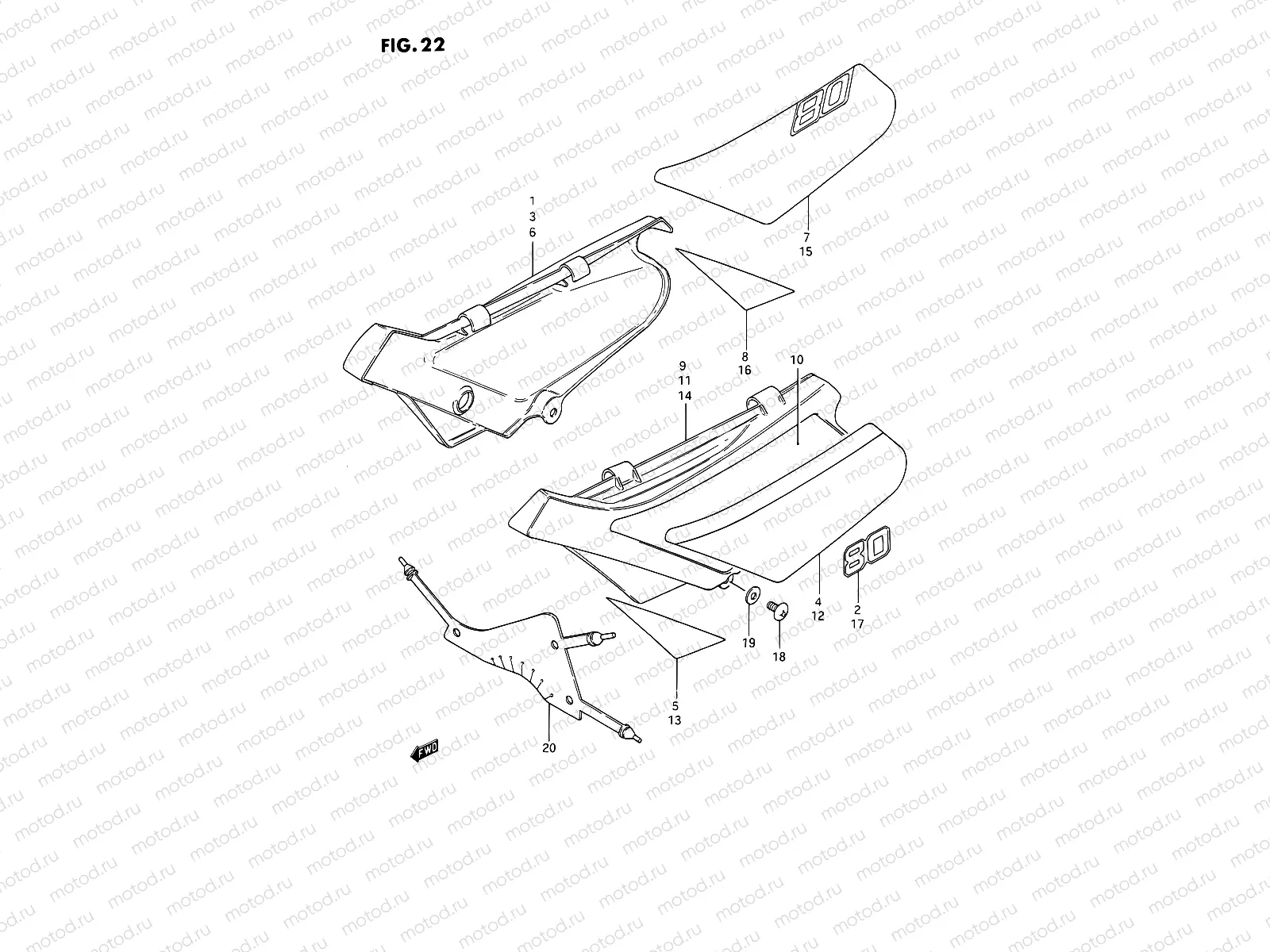

22 - FRAME COVER (MODEL H/J/K/L/M)

22 - FRAME COVER (MODEL H/J/K/L/M)

Например: 47111-03400-81W

1

47111-03400-81W

Cover, frame rh (black/yellow)

1

47111-03400-9CB

OVER,FRAME,R

1

47111-03400-9CC

over, frame rh (blue/yellow)

2

68131-03400-163

EMBLEM,FRAME COVER RH

579 ₽/шт

3

47110-03400-25Y

Cover, frame rh (yellow)

4

68135-03410-2DN

.tape, rh

5

68136-03400-33N

.tape, rh no.2 (blue)

6

68136-03400-291

TAPE,FRAME COVER NO.2,R

1 208 ₽/шт

6

68135-03420-0YG

Tape, rh

6

47111-03410-25Y

7

68135-03420-0YG

.tape, rh

8

68136-03400-291

TAPE,FRAME COVER NO.2,R

1 208 ₽/шт

9

47210-03400-163

Cover, frame lh (yellow)

9

47210-03400-25Y

Cover, frame lh (yellow)

9

47210-03400-22X

Cover, frame lh (yellow)

10

68140-03400-291

.emblem (black)

10

68140-03400-19F

.emblem (blue)

11

47210-03410-25Y

Cover, frame lh (yellow)

12

68145-03400-2DN

.tape, lh

13

68146-03400-33N

.tape, lh no.2

14

47210-03420-25Y

Cover, frame lh (yellow)

15

68145-03420-0YG

.tape, lh

16

68146-03400-291

.tape, lh no.2 (black)

17

68141-03400-163

Emblem, "80" lh (yellow)

18

02142-06167

Винт крестовый 6x16

81 ₽/шт

18

09136-06056

Винт (6X16)

85 ₽/шт

19

09160-06019

Шайба

81 ₽/шт

20

47219-03400

Mud guard, frame cover
