Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX-R 1000 SUZUKI GSX-R1000 K9 (E02,E14,E19,E24) SUZUKI (VIN: JS1CY111) 22 - CLUTCH

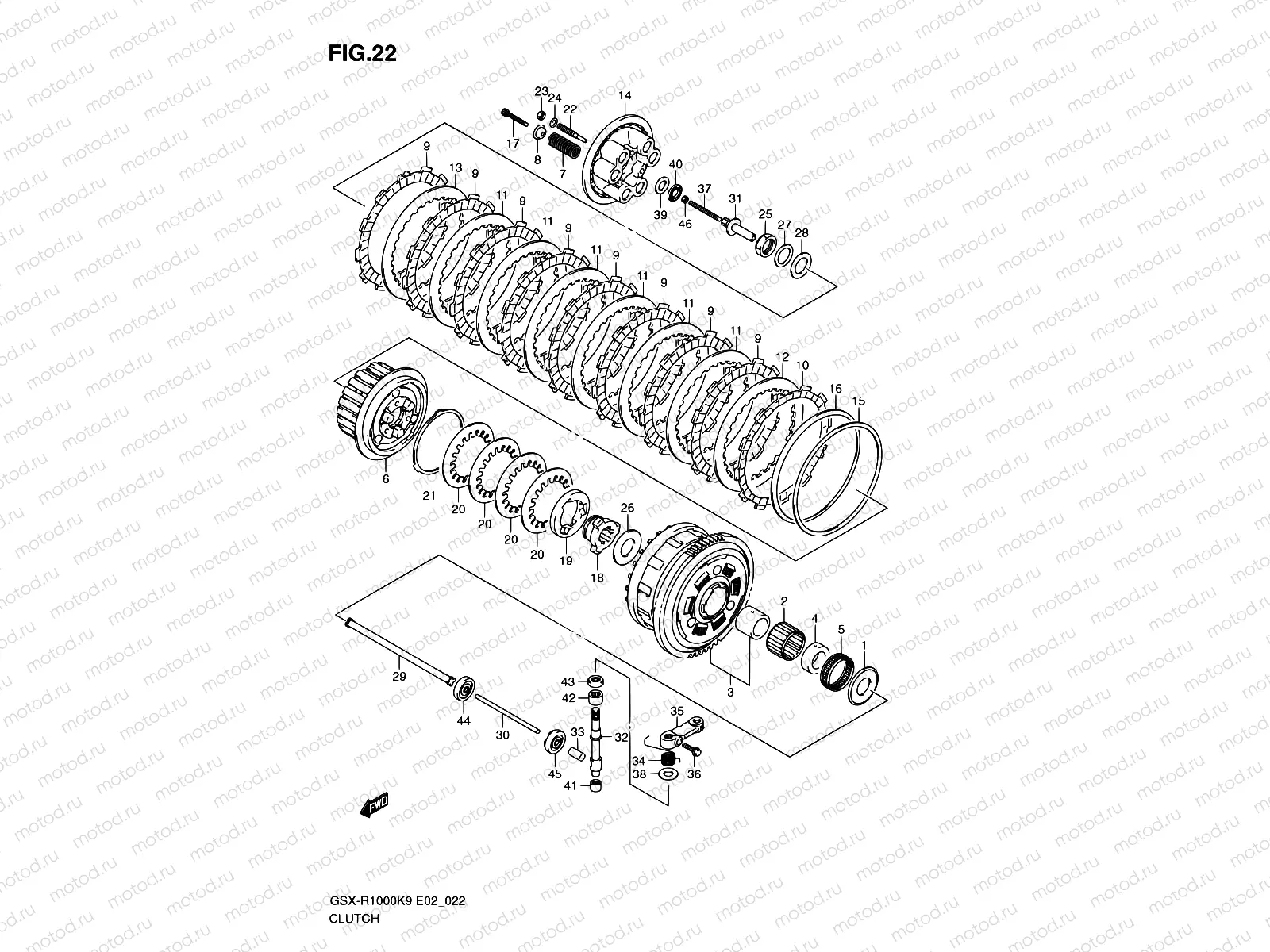

22 - CLUTCH

22 - CLUTCH

Например: 09160-25073

1

09160-25073

Шайба

7 230 ₽/шт

2

09263-35015

ПОДШИПНИК КАЧЕНИЯ

1 147 ₽/шт

3

21200-47810

GEAR ASSY,PRI DRIVEN

42 228 ₽/шт

4

21253-01H10

SPACER,OIL PUMP DRIVE SPROCKET

2 092 ₽/шт

5

09263-35045

ПОДШИПНИК

1 185 ₽/шт

6

21410-41G40

HUB,CLUTCH SLEEVE

16 774 ₽/шт

7

21413-47H00

Пружина муфты

653 ₽/шт

8

21414-29F00

Шайба

379 ₽/шт

9

21441-42F20

PLATE,CLUTCH DRIVE NO.1

1 709 ₽/шт

10

21442-42F10

PLATE,CLUTCH DRIVE NO.2

1 709 ₽/шт

11

21451-47H00

ДИСК ФРИКЦИОННЫЙ

1 099 ₽/шт

12

21451-47H10

PLATE,CLUTCH DRIVEN NO.2

829 ₽/шт

13

21451-47H20

PLATE,CLUTCH DRIVEN NO.3

1 099 ₽/шт

14

21462-41G10

DISC,CLUTCH PRESSURE

5 630 ₽/шт

15

21471-02F20

SEAT,WAVE WASHER

899 ₽/шт

16

21472-02F20

WASHER,CLUTCH PLATE WAVE

1 294 ₽/шт

17

21482-41G10

BOLT,CLUTCH SPRING

203 ₽/шт

18

21611-41G20

CAM,CLUTCH DRIVE

7 273 ₽/шт

19

21612-41G20

CAM,CLUTCH DRIVEN

6 021 ₽/шт

20

21621-41G00

WASHER,CAM REACTION WAVE

903 ₽/шт

21

21624-41G20

WASHER,CAM REACTION SEAT

1 067 ₽/шт

22

21622-41G10

LIFTER,CLUTCH PRESSURE DISC

845 ₽/шт

23

21623-41G00

NUT,CL PRESS DISC LIFTER LOCK

152 ₽/шт

24

09181-08139

SHIM ( 8.8X14X1.0 )

162 ₽/шт

25

09159-24010

ШАЙБА

824 ₽/шт

26

09160-25056

WASHER

727 ₽/шт

27

09160-25077

WASHER(25X41X2.5)

5 200 ₽/шт

28

09164-24008

ШАЙБА ФОРСУНКИ

2 310 ₽/шт

29

23110-27A00

ROD,CLUTCH

2 210 ₽/шт

30

23111-47H00

ROD,CLUTCH PUSH,L

1 333 ₽/шт

31

23121-41G20

Pice,clutch pus

32

23122-41G00

CAMSHAFT,CLUTCH RELEASE

2 972 ₽/шт

33

23123-41G00

CAP,CLUTCH PUSH ROD

697 ₽/шт

34

23125-41G00

<>

203 ₽/шт

35

23271-41G31

ARM,CLUTCH RELEASE

6 460 ₽/шт

36

09103-06223

БОЛТ

1 450 ₽/шт

37

09134-06015

SCREW,6X73

388 ₽/шт

38

09160-10020

Шайба

1 060 ₽/шт

39

09160-15045

Шайба

211 ₽/шт

40

09263-15003

Подшипник 15X28X2

532 ₽/шт

41

09263-10014

ПОДШИПНИК ВЫЖИМНОЙ

921 ₽/шт

42

09263-12027

BEARING(12X18X12)

291 ₽/шт

43

09282-10012

САЛЬНИК (10X20X6)

459 ₽/шт

44

09283-06010

САЛЬНИК

1 098 ₽/шт

45

09285-10004

САЛЬНИК

210 ₽/шт

46

08310-0006B

Гайка

81 ₽/шт
