Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX-R 1000 SUZUKI GSX-R1000U2 K2 SUZUKI 22 - CLUTCH

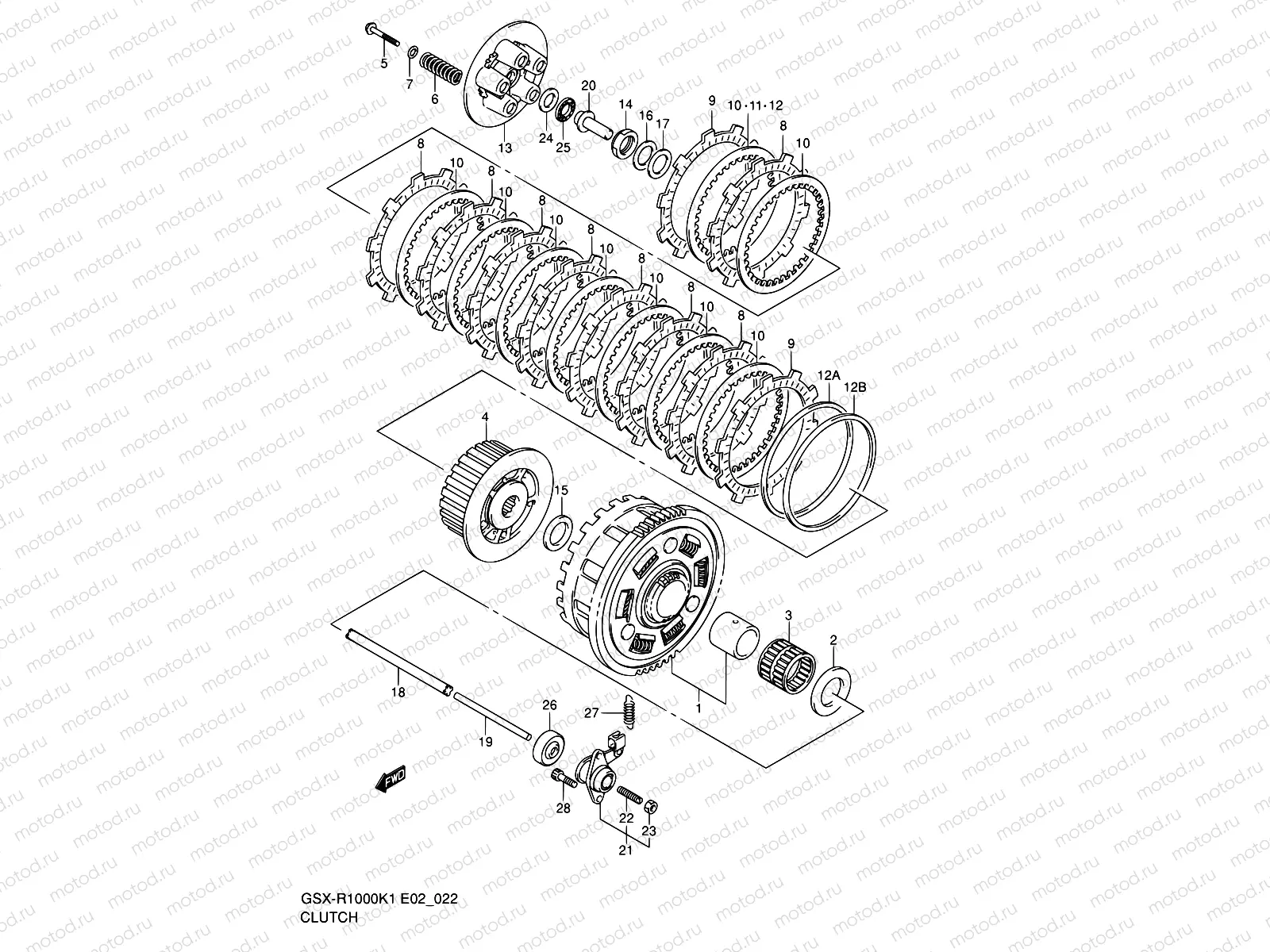

22 - CLUTCH

22 - CLUTCH

Например: 21200-40860

1

21200-40860

GEAR ASSY,PRI DRIVEN

80 240 ₽/шт

2

09160-25073

Шайба

7 230 ₽/шт

3

09263-35017

BEARING(35X40X35.8)

10 030 ₽/шт

4

21410-40F01

HUB,CLUTCH SLEEVE

10 479 ₽/шт

5

21482-40F00

BOLT,CLUTCH SPRING

184 ₽/шт

6

21413-40F00

Пружина

1 071 ₽/шт

7

21414-29F00

Шайба

379 ₽/шт

8

21441-40F00

PLATE,CLUTCH DRIVE NO.1

2 268 ₽/шт

9

21441-40F10

PLATE,CLUTCH DRIVE NO.2

1 709 ₽/шт

10

21451-40F00

Диск сцепления

1 114 ₽/шт

11

21451-40F10

PLATE,CLUTCH DRIVEN NO.2(T:2.0

1 114 ₽/шт

12

21451-40F20

PLATE,CLUTCH DRIVEN NO.3(T:2.6

1 114 ₽/шт

12

21471-40F00

SEAT,CLUTCH PLATE WAVE WASHER

911 ₽/шт

12

21472-40F00

WASHER,CLUTCH PLATE WAVE

1 228 ₽/шт

13

21462-40F00

DISC,CLUTCH PRESSURE

5 357 ₽/шт

14

09159-24010

ШАЙБА

824 ₽/шт

15

09160-25056

WASHER

727 ₽/шт

16

09164-24006

ШАЙБА ФОРСУНКИ

226 ₽/шт

17

09181-25223

SHIM(25X38X1)

194 ₽/шт

18

23110-38B00

Штанга муфты

2 100 ₽/шт

19

23111-35F00

ROD,CLUTCH PUSH,L

840 ₽/шт

20

23121-31E00

PIECE,CLUTCH PUSH

1 377 ₽/шт

21

23200-35F01

SCREW ASSY,CLUTCH RELEASE

6 056 ₽/шт

22

09134-06010

Болт

1 880 ₽/шт

23

08310-00067

Гайка

81 ₽/шт

24

09160-15045

Шайба

211 ₽/шт

25

09263-15003

Подшипник 15X28X2

532 ₽/шт

26

09285-06011

САЛЬНИК

1 502 ₽/шт

27

09443-09044

Пружина

291 ₽/шт

28

01550-0616B

БОЛТ

81 ₽/шт
