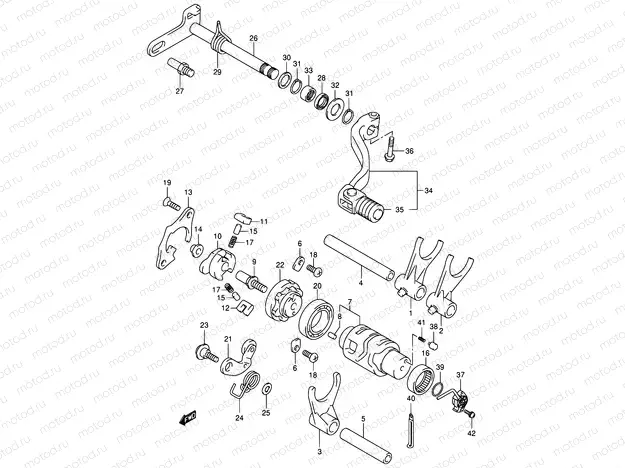

21A - GEAR SHIFTING (DR-Z400EY/EK1/EK2/EK3/EK4 E24)

21A - GEAR SHIFTING (DR-Z400EY/EK1/EK2/EK3/EK4 E24)

Например: 25211-28C01

1

25211-28C01

FORK,GEAR SHIFT NO.1

5 610 ₽/шт

2

25221-28C02

FORK,GEAR SHIFT NO.2

4 536 ₽/шт

3

25231-28C02

FORK,GEAR SHIFT NO.3

5 330 ₽/шт

4

25411-37F20

SHAFT,GEAR SHIFT FORK(L:95)

1 150 ₽/шт

5

25421-27C01

SHAFT,GEAR SHIFT FORK(L:60)

1 258 ₽/шт

6

24741-21A00

RETAINER

170 ₽/шт

7

25310-29F10

Кулак

10 244 ₽/шт

8

04221-04089

шпонка ведомой звездочки балансира

81 ₽/шт

9

25313-27C02

PIN,SHIFT CAM DRIVEN GEAR

680 ₽/шт

10

25322-36E00

SHIFTER,GEAR SHIFT CAM

3 230 ₽/шт

11

25323-34201

PAWL,GEAR SHIFT NO.1

662 ₽/шт

12

25324-34201

PAWL,GEAR SHIFT NO.2

662 ₽/шт

13

25331-37E10

LIFTER,GEAR SHIFT PAWL

748 ₽/шт

14

09180-07014

SPACER(7X10X5)

2 540 ₽/шт

15

09261-05003

ПАЛЕЦ КПП

129 ₽/шт

16

09263-25018

BEARING(25X32X12)

1 343 ₽/шт

17

09440-04003

ПРУЖИНА

113 ₽/шт

18

09125-06110

БОЛТ

162 ₽/шт

19

09126-06011

SCREW,6X12

81 ₽/шт

20

08113-69050

ПОДШИПНИК ВЫЖИМНОЙ

2 717 ₽/шт

21

25350-29F00

STOPPER,GEAR SHIFT CAM

1 095 ₽/шт

22

25381-36E11

PLATE,GEAR SHIFT STOPPER

2 465 ₽/шт

23

25357-29F00

BOLT,CAM STOPPER ARM

379 ₽/шт

24

25355-29F00

SPRING,SHIFT CAM STOPPER

270 ₽/шт

25

08211-06121

Шайба упорная

1 170 ₽/шт

26

25510-29F00

РЫЧАГ КПП

4 575 ₽/шт

27

25671-38B00

STOPPER,SHIFT ARM

274 ₽/шт

28

09283-14006

САЛЬНИК МЕХАНИЗМА ВЫБОРА КПП

678 ₽/шт

29

09444-20004

ПРУЖНА

4 380 ₽/шт

30

09181-14139

Шайба

1 520 ₽/шт

31

08331-3114A

КЛИПС

97 ₽/шт

32

09160-14046-XC0

ШАЙБА (14X29X1.5)

194 ₽/шт

33

09263-14027

ПОДШИПНИК

728 ₽/шт

34

25600-05D03

РЫЧАГ ПЕРЕКЛЮЧЕНИЯ КПП

5 591 ₽/шт

35

25652-03D00

RUBBER,GEAR SHIFT PEDAL

355 ₽/шт

36

01547-0625B

БОЛТ

97 ₽/шт

37

37720-48E30

BASE ASSY,NEUTRAL SW TERMINAL

4 653 ₽/шт

38

09209-05011

ШТИФТ

178 ₽/шт

39

09280-26005

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

194 ₽/шт

40

09404-06039

Clamp(L:65)

194 ₽/шт

41

09440-04010

ПРУЖИНА

113 ₽/шт

42

02112-0516B

Болт

1 090 ₽/шт
