Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1300 R Hayabusa SUZUKI GSX1300R K2 Hayabusa (E03,E28,E33) SUZUKI 21A - CLUTCH (MODEL K2/K3)

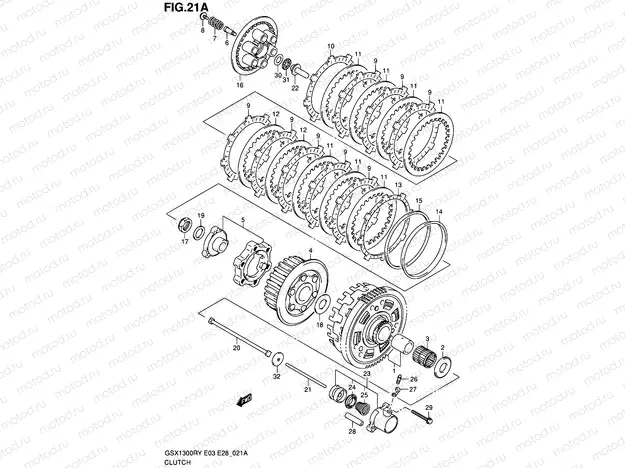

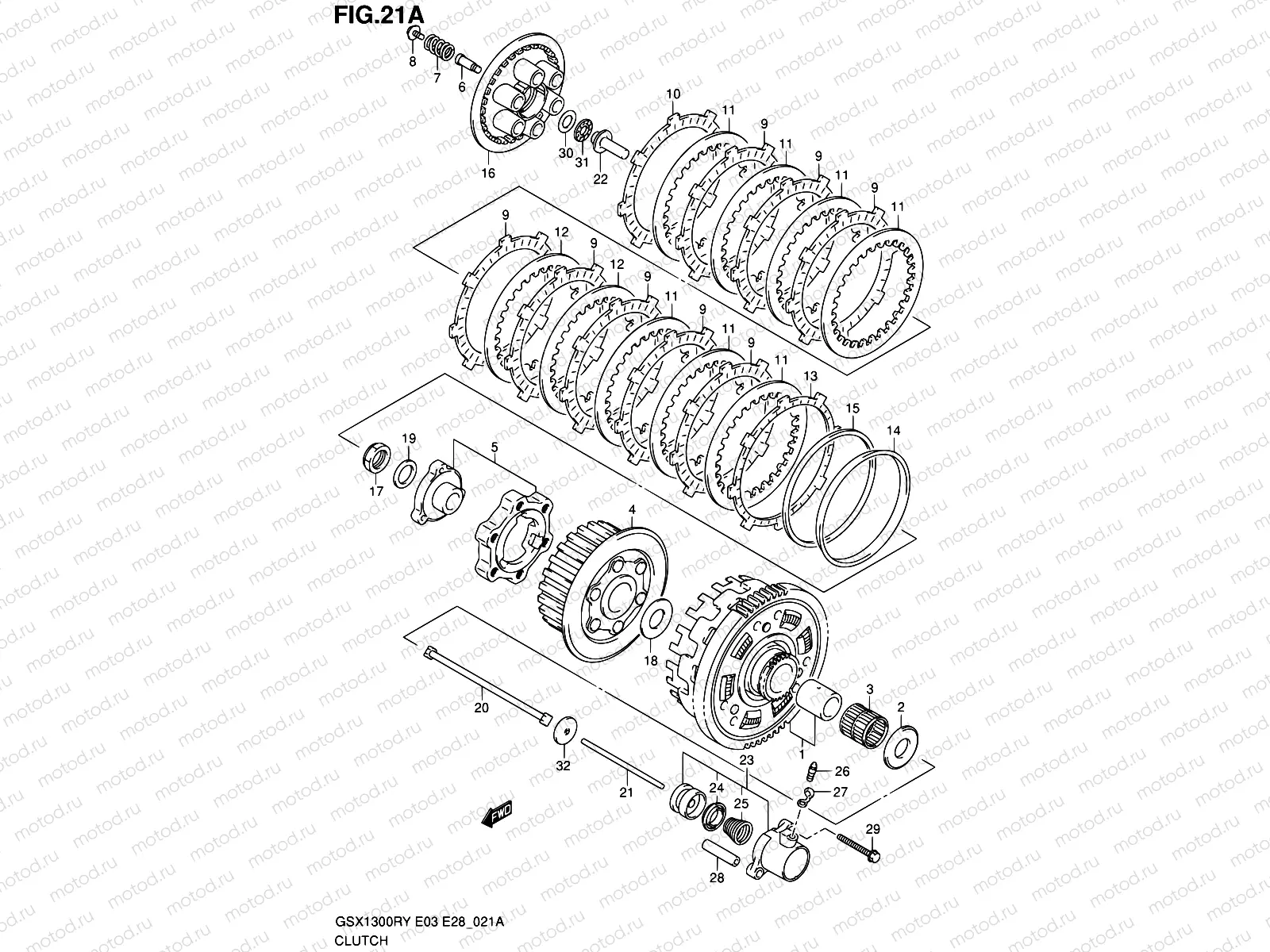

21A - CLUTCH (MODEL K2/K3)

21A - CLUTCH (MODEL K2/K3)

Например: 21200-24810

1

21200-24810

GEAR ASSY,PRI DRIVEN

47 430 ₽/шт

2

09160-25037

Шайба

5 870 ₽/шт

3

09263-35013

ПОДШИПНИК

2 584 ₽/шт

4

21410-24F00

HUB,CLUTCH SLEEVE

9 775 ₽/шт

5

21610-02F12

CAM SET,CLUTCH

15 895 ₽/шт

6

21481-02F12

BOLT,CLUTCH SPRING SUPPORT

833 ₽/шт

7

21413-24F10

Пружина

516 ₽/шт

8

21482-02F12

BOLT,CLUTCH SPRING

204 ₽/шт

9

21441-24F00

PLATE, CLUTCH DRIVE 1

4 603 ₽/шт

10

21441-24F10

ДИСК СЦЕПЛЕНИЯ АКПП

3 553 ₽/шт

11

21451-24F00

Диск сцепления стальной (T:2.0)

1 260 ₽/шт

12

21451-24F10

ДИСК КПП

1 260 ₽/шт

13

21442-24F00

ДИСК СЦЕПЛЕНИЯ АКПП

3 553 ₽/шт

14

21471-24F00

SEAT,WAVE WASHER

694 ₽/шт

15

21472-24F00

ШАЙБА

1 227 ₽/шт

16

21462-24F00

DISC,CLUTCH PRESSURE

4 457 ₽/шт

17

09159-24010

ШАЙБА

824 ₽/шт

18

09160-25056

WASHER

727 ₽/шт

19

09164-24006

ШАЙБА ФОРСУНКИ

226 ₽/шт

20

23110-24F00

Штанга муфты

2 100 ₽/шт

21

23111-26D00

ШТОК СЦЕПЛЕНИЯ

775 ₽/шт

22

23121-31E00

PIECE,CLUTCH PUSH

1 377 ₽/шт

23

23160-06B03

CYLINDER,CLUTCH RELEASE

14 591 ₽/шт

24

23163-06B00

CUP

505 ₽/шт

25

23164-05A00

Пружина

289 ₽/шт

26

59121-01A00

BLEEDER

1 226 ₽/шт

27

59122-01A00

CAP,BLEEDER

187 ₽/шт

28

04211-09129

Стопор

102 ₽/шт

29

07130-0625B

БОЛТ

97 ₽/шт

30

09160-15045

Шайба

211 ₽/шт

31

09263-15003

Подшипник 15X28X2

532 ₽/шт

32

09285-06015

САЛЬНИК УПЛОТНИТЕЛЬНЫЙ

840 ₽/шт
