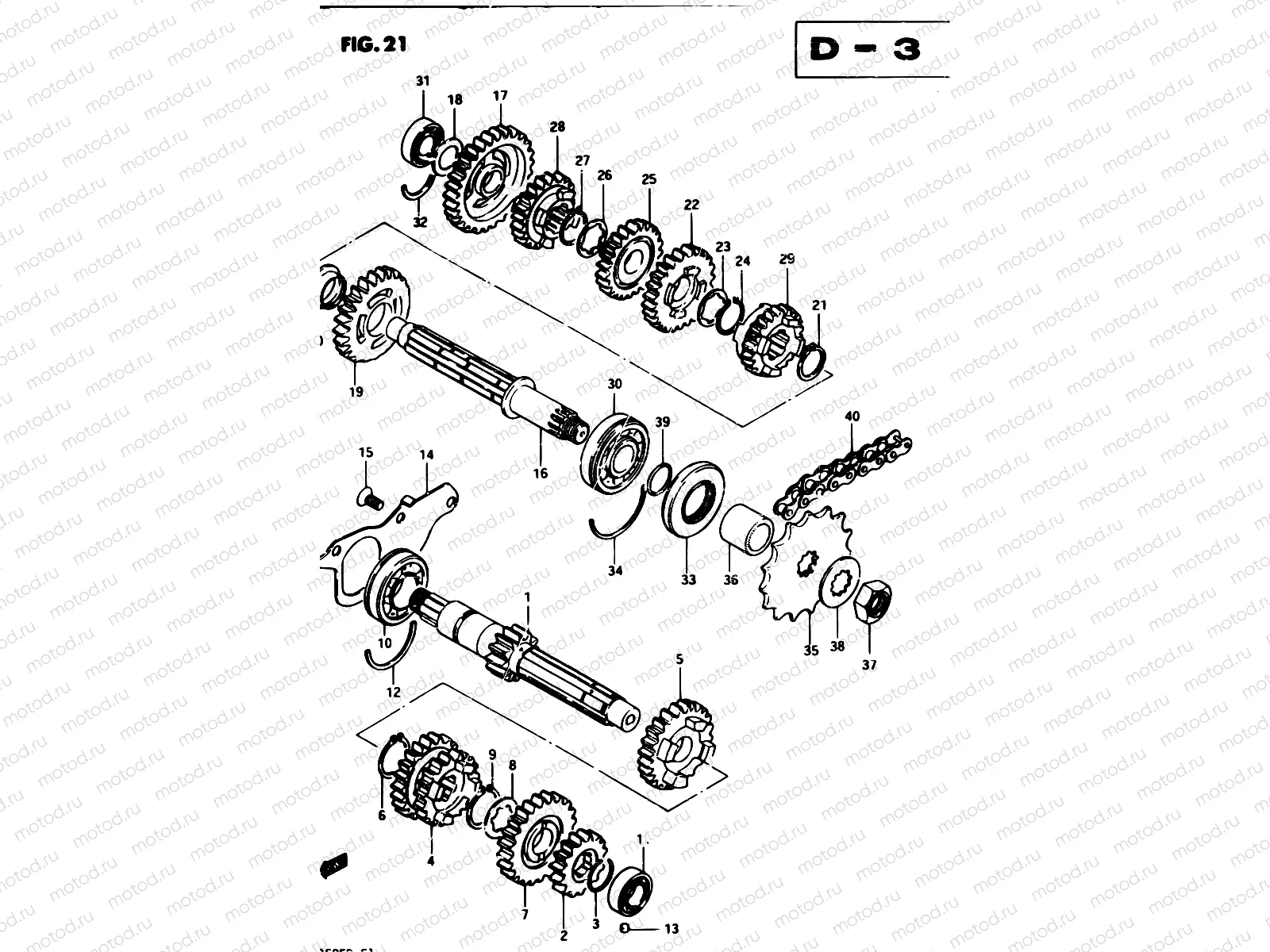

21 - TRANSMISSION

21 - TRANSMISSION

Например: 24121-11402

1

24121-11402

Countershaft (nt:12)

2

24221-11300

Gear, 2nd drive (nt:16)

3

09380-22009

Стопорное кольцо (пружинное)

1 490 ₽/шт

4

24231-11300

Gear, 3/4 drive (nt:19/21)

5

24251-11300

Gear, 5th drive (nt:22)

6

08331-31229

Зажимы

153 ₽/шт

7

24261-11300

Gear, 6th drive (nt:23)

8

09167-22011

Пластина замка

1 880 ₽/шт

9

08331-31229

Зажимы

153 ₽/шт

10

08160-62050

Подшипник B1 25X52X15

1 324 ₽/шт

11

09263-17015

Bearing, lh

12

09390-52002

C-ring

13

04221-07129

PIN

1 060 ₽/шт

14

24741-11401

15

02122-06127

Болт

85 ₽/шт

16

24131-11500

Driveshaft

17

24310-11300

Gear, 1st driven (nt:30)

18

09181-15166

SHIM(15X24X1)

179 ₽/шт

19

24321-11400

Gear, 2nd driven (nt:26)

20

09301-22002

Втулка

6 410 ₽/шт

21

08331-31229

Зажимы

153 ₽/шт

22

24331-11400

Gear, 3rd driven (nt:23)

23

09167-22011

Пластина замка

1 880 ₽/шт

24

08331-31229

Зажимы

153 ₽/шт

25

24341-11300

Gear, 4th driven (nt:21)

26

09167-22011

Пластина замка

1 880 ₽/шт

27

08331-31229

Зажимы

153 ₽/шт

28

24351-11300

Gear, 5th driven (nt:19)

29

24361-11300

Gear, 6th driven (nt:18)

30

08160-63040

Подшипник B1 20X52X15

1 438 ₽/шт

31

08123-6202B

Wheel bearing

32

09390-35001

C RING

33

09283-28012

Oil seal

34

09390-52002

C-ring

35

27511-11400

SPROCKET,ENGINE(NT:14)

2 776 ₽/шт

36

09180-20083

Spacer (20x28x21.6)

37

09159-16006

Nut

38

09167-20018

WASHER,LOCK

1 600 ₽/шт

39

09280-20001

O RING(D:1,ID:19.5)

179 ₽/шт

40

27600-43D02-116

CHAIN,DRIVE (DID520DMA4 SDH)

20 485 ₽/шт
