Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1300 R Hayabusa SUZUKI GSX1300R L0 Hayabusa (E19) SUZUKI (VIN: JS1CK211) 21 - RADIATOR HOSE

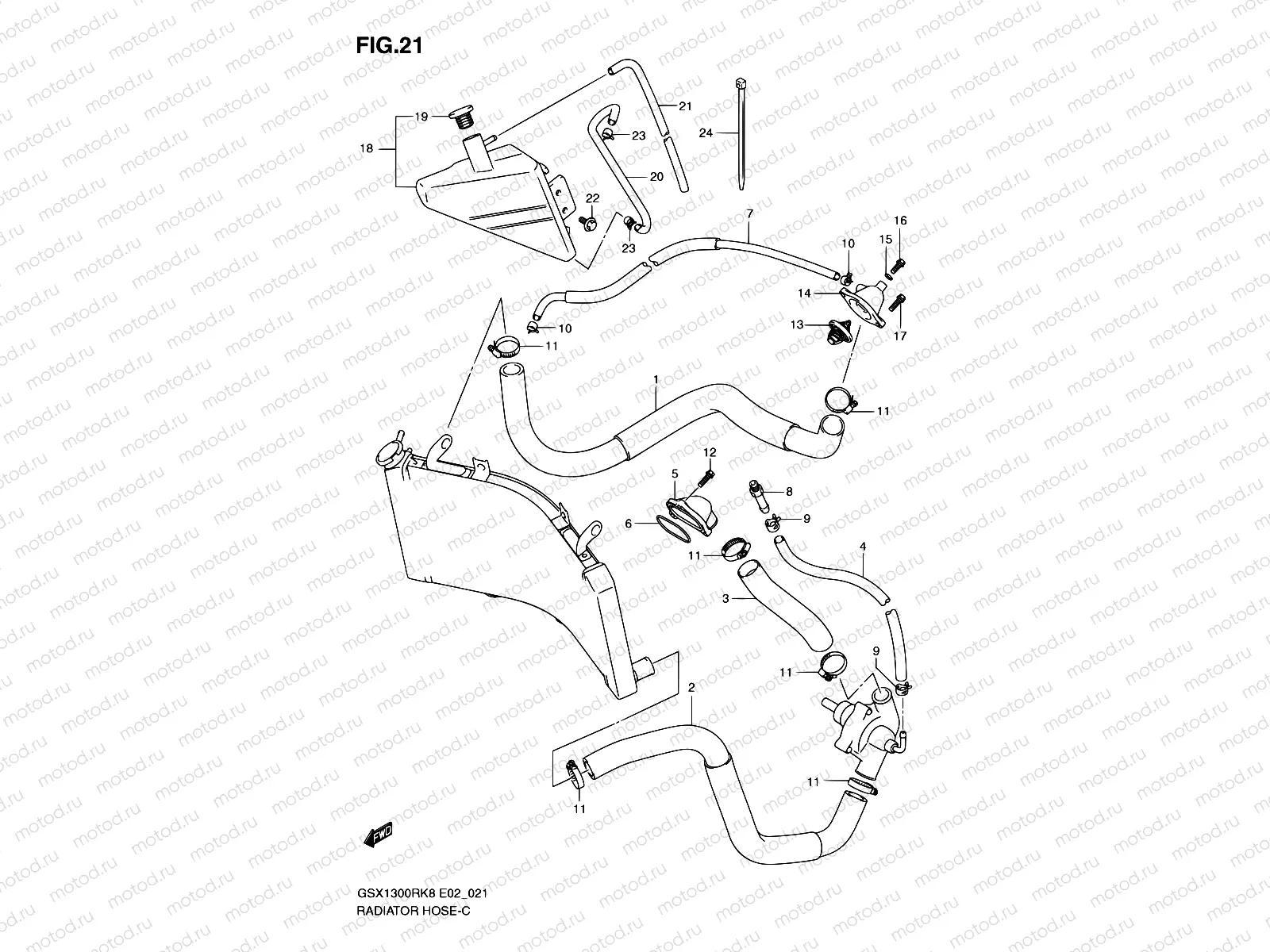

21 - RADIATOR HOSE

21 - RADIATOR HOSE

Например: 17851-15H00

1

17851-15H00

OSE,RADIATOR INLET

3 949 ₽/шт

2

17852-15H00

OSE,RADIATOR OUTLET

3 324 ₽/шт

3

17853-24F00

ПАТРУБОК

1 412 ₽/шт

4

17854-24F00

HOSE,WATER BYPASS NO.1

1 193 ₽/шт

5

17861-33E20

Коннектор

1 241 ₽/шт

6

17863-33E00

O-RING,CYL WATER CONNECTO

275 ₽/шт

7

17855-15H00

OSE,WATER AIR BLEED

1 928 ₽/шт

8

09362-09011

Болт соединяющий

4 850 ₽/шт

9

09401-12414

CLIP

170 ₽/шт

10

09401-10409

ХОМУТ МАЛЫЙ

119 ₽/шт

11

09402-38512

ХОМУТ РУЛ. НАК.

469 ₽/шт

12

01547-0620A

Болт

81 ₽/шт

13

17670-15H00

"""THERMOSTAT, WATER"""

3 400 ₽/шт

14

17661-35F00

Крышка термостата

2 639 ₽/шт

15

09168-06026

ШАЙБА ФОРСУНКИ

97 ₽/шт

16

17568-50F00

Болт крышки термостата

221 ₽/шт

17

01547-0620A

Болт

81 ₽/шт

18

17910-15H00

TANK ASSY,RESERVOIR

4 379 ₽/шт

19

17931-02FA0

КРЫШКА БАЧКА РАСШИРИТЕЛЬНОГО

630 ₽/шт

20

17981-15H00

OSE,RESERVOIR TANK INLET

915 ₽/шт

21

17982-15H00

OSE,RESERVOIR TANK OVFL

1 009 ₽/шт

21

17982-22H00

OSE,RESERVOIR TANK OVFL

704 ₽/шт

22

09111-06085

БОЛТ

255 ₽/шт

23

09401-08413

Collier

24

09407-14407

ЗАЖИМ

221 ₽/шт
