Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSX-R 600 SUZUKI GSX-R600Z K3 SUZUKI 21 - CLUTCH

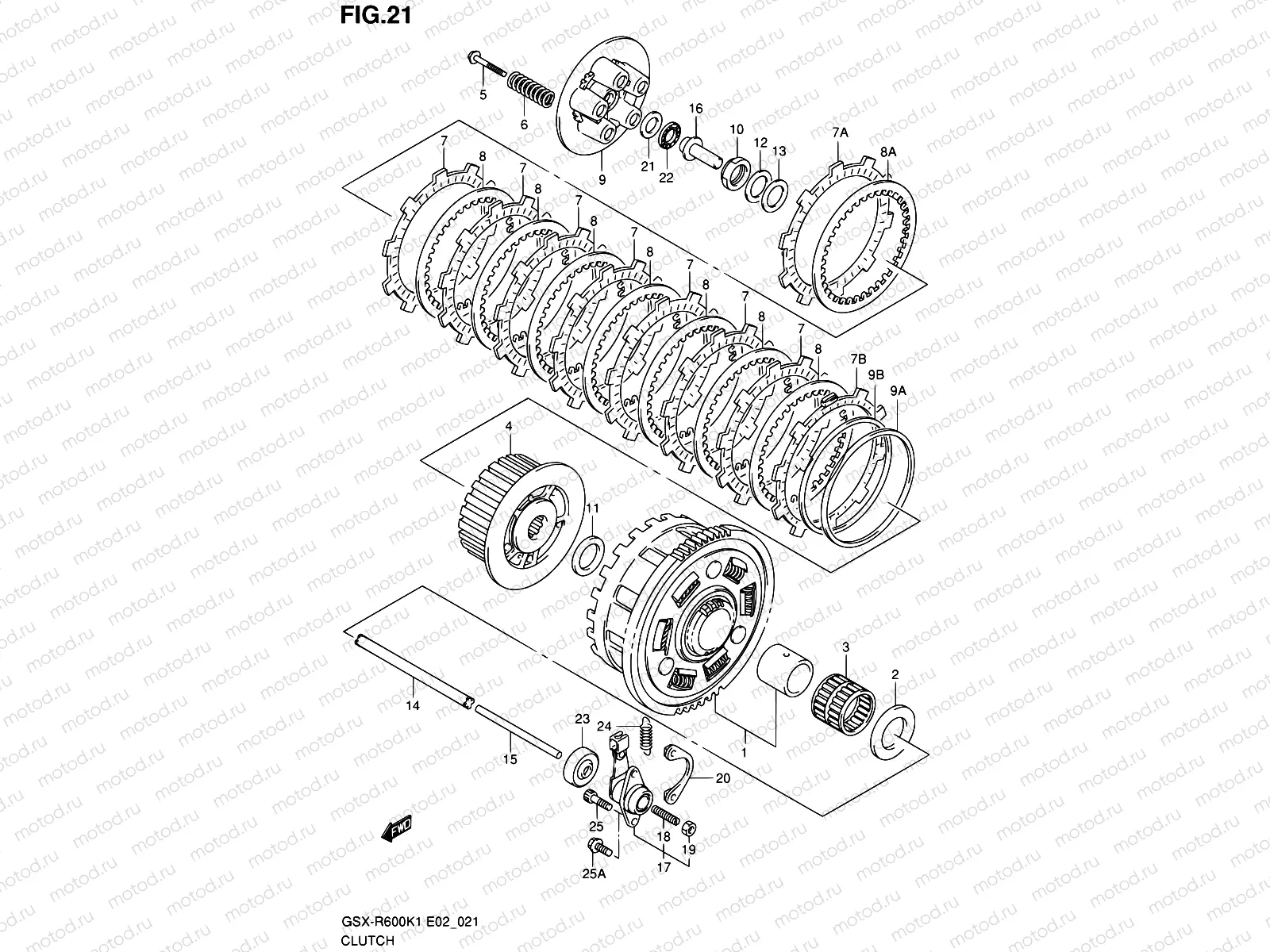

21 - CLUTCH

21 - CLUTCH

Например: 21200-39820

1

21200-39820

GEAR ASSY,PRI DRIVEN

44 540 ₽/шт

2

09160-25073

Шайба

7 230 ₽/шт

3

09263-35036

BEARING(35X40X29.8)

1 649 ₽/шт

4

21410-35F00

HUB,CLUTCH SLEEVE

10 244 ₽/шт

5

21412-35F00

BOLT,CLUTCH SPRING

187 ₽/шт

6

21413-35F00

Пружина

598 ₽/шт

7

21441-31E50

PLATE,CLUTCH DRIVE NO.1

2 229 ₽/шт

7

21441-31E60

PLATE,CLUTCH DRIVE

1 583 ₽/шт

7

21440-39F00

PLATE,CLUTCH DRIVE NO.3

5 044 ₽/шт

8

21451-31E30

PLATE,CLUTCH DRIVEN NO.2

915 ₽/шт

8

21451-31E20

PLATE,CLUTCH DRIVEN NO.1

915 ₽/шт

9

21462-35F00

DISC,CLUTCH PRESSURE

3 871 ₽/шт

9

21471-31E20

SEAT,CLUTCH PLATE WAVE WASHER

1 530 ₽/шт

9

21472-39F00

WASHER,CLUTCH PLATE

1 122 ₽/шт

10

09159-24010

ШАЙБА

824 ₽/шт

11

09160-25056

WASHER

727 ₽/шт

12

09164-24006

ШАЙБА ФОРСУНКИ

226 ₽/шт

13

09181-25223

SHIM(25X38X1)

194 ₽/шт

14

23110-27A00

ROD,CLUTCH

2 210 ₽/шт

15

23111-35F00

ROD,CLUTCH PUSH,L

840 ₽/шт

16

23121-31E00

PIECE,CLUTCH PUSH

1 377 ₽/шт

17

23200-35F01

SCREW ASSY,CLUTCH RELEASE

6 056 ₽/шт

18

09134-06010

Болт

1 880 ₽/шт

19

08310-00067

Гайка

81 ₽/шт

21

09160-15045

Шайба

211 ₽/шт

22

09263-15003

Подшипник 15X28X2

532 ₽/шт

23

09285-06011

САЛЬНИК

1 502 ₽/шт

24

09443-09044

Пружина

291 ₽/шт

25

01550-0616B

БОЛТ

81 ₽/шт
