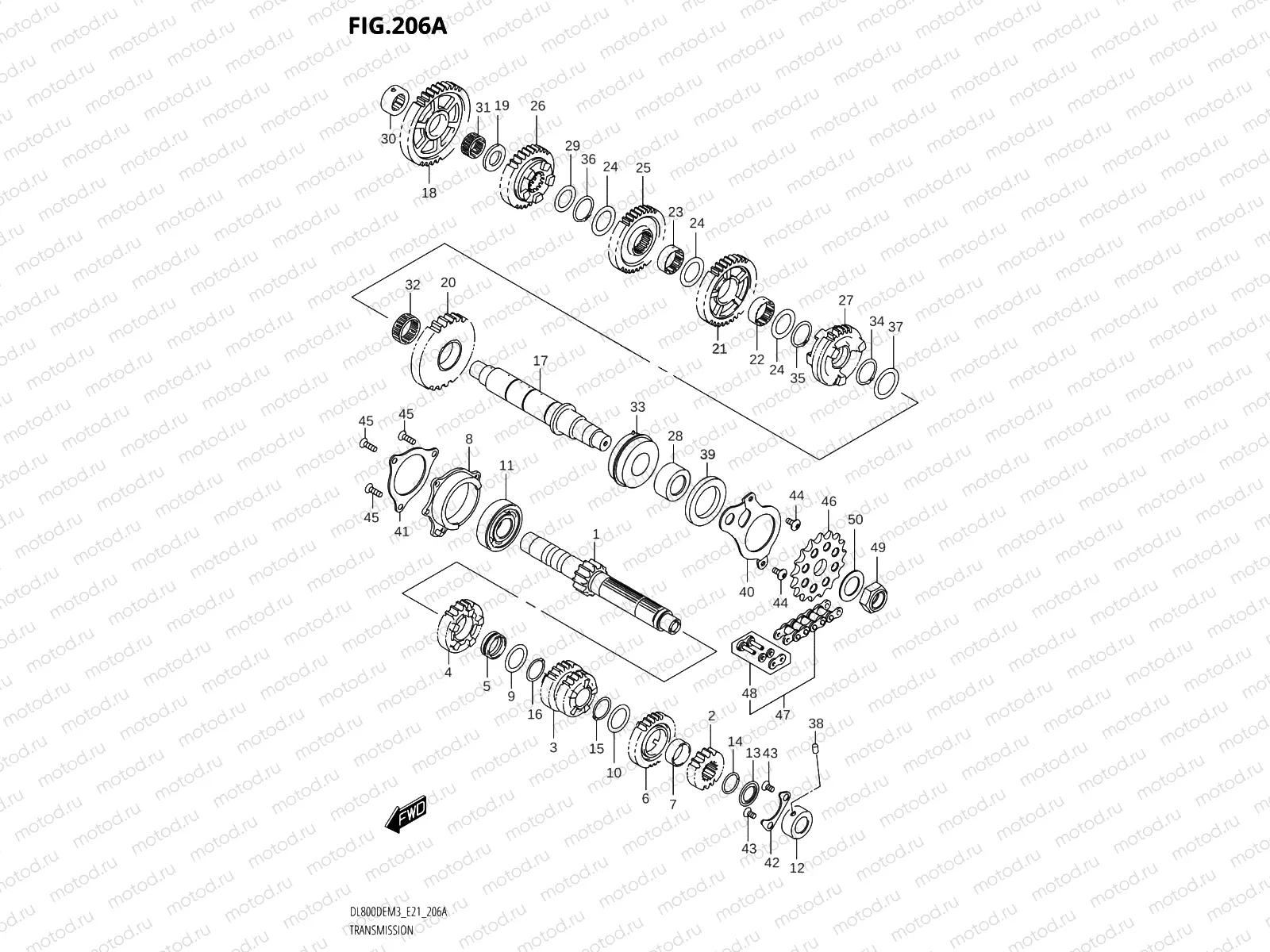

206A - TRANSMISSION

206A - TRANSMISSION

Например: 24120-25L00

1

24120-25L00

Shaft comp,cntr

2

24221-25L00

Gear,2nd drive

3

24231-25L00

Gear,3rd & 4th

4

24251-25L00

Gear,5th drive

5

24252-35F00

BUSH,5TH DRIVE GEAR

1 259 ₽/шт

6

24261-25L00

Gear,6th drive

7

24262-35F10

BUSH,6TH DRIVE GEAR

1 435 ₽/шт

8

24770-18H10

OUSING,CNTR SHAFT BRG,R

7 937 ₽/шт

9

09160-27008

Шайба

238 ₽/шт

10

09167-27001

ШАЙБА

204 ₽/шт

11

09262-25073

ПОДШИПНИК КАЧЕНИЯ

1 550 ₽/шт

12

09263-20123

Bearing,counter

13

09285-20006

Сальник

598 ₽/шт

14

09380-27004

КЛИПС

187 ₽/шт

15

09380-27006

КЛИПС

187 ₽/шт

16

09380-27006

КЛИПС

187 ₽/шт

17

24131-25L00

Shaft,drive

18

24311-25L00

Gear,1st driven

19

24315-25L00

Spacer,1st driv

20

24321-25L00

Gear,2nd driven

21

24331-25L00

Gear,3rd driven

22

24332-24F20

BUSH,3RD DRIVEN GEAR

1 842 ₽/шт

23

24332-24F20

BUSH,3RD DRIVEN GEAR

1 842 ₽/шт

24

24333-47H00

WASHER,3RD & 4TH DRIVEN GEAR

387 ₽/шт

25

24341-25L00

Gear,4th driven

26

24351-25L00

Gear,5th driven

27

24361-25L00

Gear,6th driven

28

27531-25L00

Spacer,engine s

29

09181-24005

ШАЙБА

204 ₽/шт

30

09263-20087

BEARING(20X34X13.5)

2 210 ₽/шт

31

09263-24030

BEARING(24X28X13)

1 220 ₽/шт

32

09263-30018

Bearing,30x35x1

33

09267-30011

BEARING(30X62X23.8)

6 970 ₽/шт

34

09380-30009

КЛИПС

204 ₽/шт

35

09380-30009

КЛИПС

204 ₽/шт

36

09380-30009

КЛИПС

204 ₽/шт

37

09181-30167

Шайба

194 ₽/шт

38

09261-06003

ШТИФТ

119 ₽/шт

39

09283-42018

Уплотнение вала

2 100 ₽/шт

40

24741-25L00

Retainer,cl pus

41

24751-18H00

RETAINER,CNTR SHAFT BEARING,R

1 075 ₽/шт

42

24751-25L00

Retainer,counte

43

09126-06011

SCREW,6X12

81 ₽/шт

44

09139-06153

БОЛТ

1 520 ₽/шт

45

09139-06159

SCREW(6X20)

129 ₽/шт

46

27511-20A21

Sprocket,engine

47

27600-17K00-126

CHAIN ASSY,DRIVE

31 960 ₽/шт

48

27620-17K00

JOINT SET (DID525HV3)

1 196 ₽/шт

49

09159-20004

Гайка

759 ₽/шт

50

09181-25268

Шайба

194 ₽/шт
