Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX-R 1000 SUZUKI GSX-R1000 L5 (E99) SUZUKI 206A - TRANSMISSION

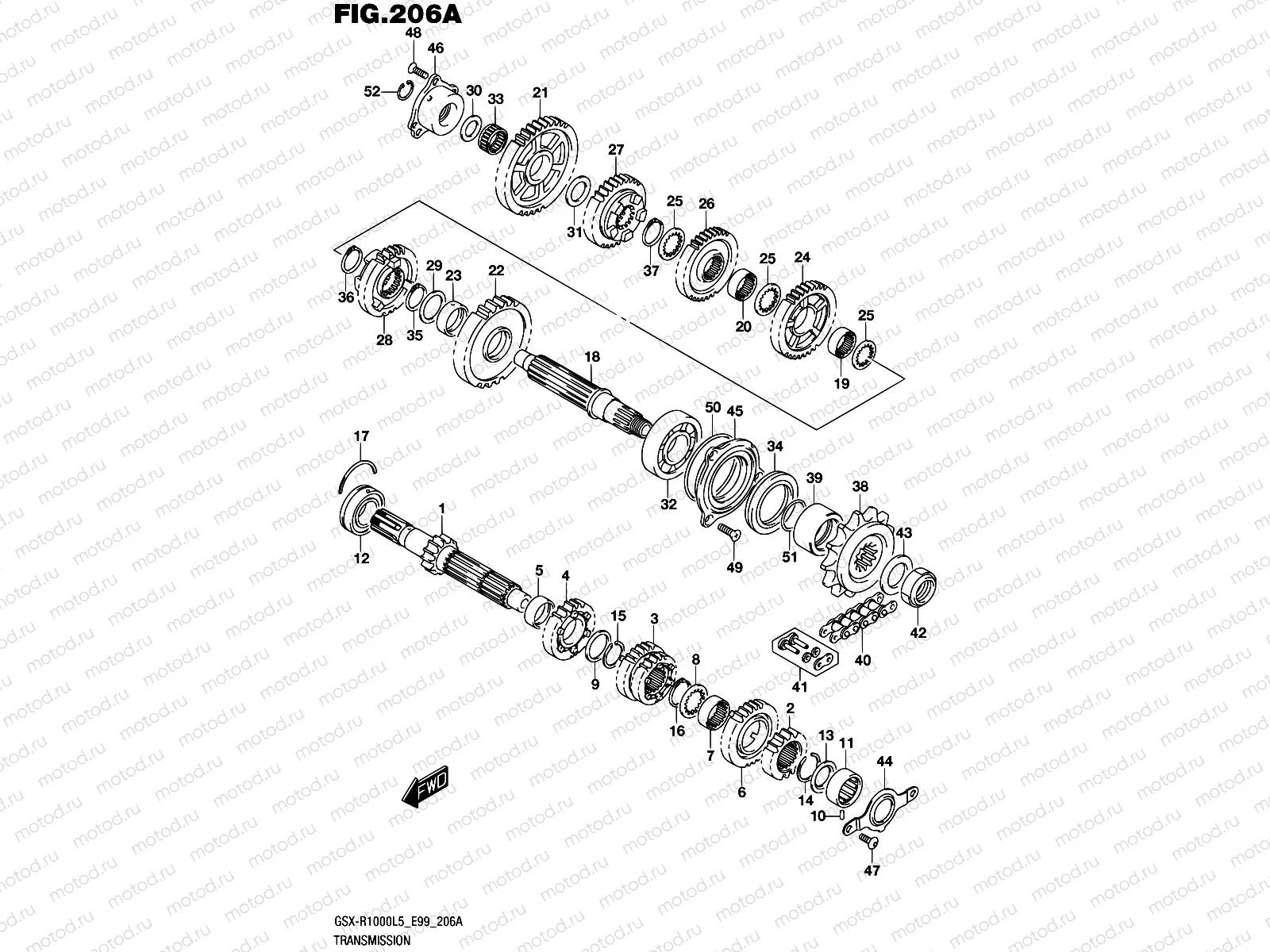

206A - TRANSMISSION

206A - TRANSMISSION

Например: 24120-47H10

1

24120-47H10

Shaft,cntr

2

24221-40F20

Gear,2nd drive

3

24231-47H00

GEAR,3RD & 4TH DRIVE

20 910 ₽/шт

4

24251-47H00

GEAR,5TH DRIVE

16 490 ₽/шт

5

24252-24F10

BUSH,5TH DRIVE GEAR

2 244 ₽/шт

6

24261-47H00

GEAR,6TH DRIVE

18 190 ₽/шт

7

24262-24F20

BUSH,6TH DRIVE GEAR

2 125 ₽/шт

8

09167-27001

ШАЙБА

204 ₽/шт

9

09160-27008

Шайба

238 ₽/шт

10

04221-07129

PIN

1 060 ₽/шт

11

09263-20103

BEARING(20X34X16)

4 848 ₽/шт

12

09267-25013

BEARING(25X52X20.6)

4 361 ₽/шт

13

09285-20006

Сальник

598 ₽/шт

14

09380-27004

КЛИПС

187 ₽/шт

15

09380-27006

КЛИПС

187 ₽/шт

16

09380-27006

КЛИПС

187 ₽/шт

17

09390-58001

ПОЛУКОЛЬЦО GV 2.0

1 720 ₽/шт

18

24131-47H00

Shaft,drive

19

24332-24F20

BUSH,3RD DRIVEN GEAR

1 842 ₽/шт

20

24332-24F20

BUSH,3RD DRIVEN GEAR

1 842 ₽/шт

21

24311-47H00

GEAR,1ST DRIVEN

8 837 ₽/шт

22

24321-47H00

GEAR,2ND DRIVEN

11 691 ₽/шт

23

24322-24F20

BUSH,2ND DRIVEN GEAR

3 400 ₽/шт

24

24331-47H10

GEAR,3RD DRIVEN

11 691 ₽/шт

25

24333-47H00

WASHER,3RD & 4TH DRIVEN GEAR

387 ₽/шт

26

24341-47H10

GEAR,4TH DRIVEN

9 690 ₽/шт

27

24351-47H00

GEAR,5TH DRIVEN

8 837 ₽/шт

28

24361-17K00

GEAR,6TH DRIVEN

9 032 ₽/шт

29

09181-30167

Шайба

194 ₽/шт

30

09181-22223

SHIM(22X34X1)

194 ₽/шт

31

09181-24005

ШАЙБА

204 ₽/шт

32

09267-30014

BEARING(30X62X23.8)

9 971 ₽/шт

33

09263-24030

BEARING(24X28X13)

1 220 ₽/шт

34

09283-38027

SEAL,OIL(38X56X7)

2 581 ₽/шт

35

09380-30009

КЛИПС

204 ₽/шт

36

09380-30009

КЛИПС

204 ₽/шт

37

09380-30009

КЛИПС

204 ₽/шт

38

27510-15H10

SPROCKET,ENGINE

10 166 ₽/шт

39

27531-47H00

SPACER,ENGINE SPROCKET

2 248 ₽/шт

40

27600-40F21-114

Chain,drive (Did50Va9)

28 220 ₽/шт

41

27620-40F21

Joint Set,drive Chain(Did)

1 584 ₽/шт

42

09159-22008

ШАЙБА ТРАНСМИССИИ, МЕТАЛЛ

18 460 ₽/шт

43

09181-27016

SHIM(27X42X1.5)

3 400 ₽/шт

44

24741-01H00

RETAINER,CL PUSH ROD OIL SEAL

446 ₽/шт

45

24751-47H00

RETAINER,DRIVE SHAFT BEARING,L

7 116 ₽/шт

46

24771-01820

HOUSING,DRIVE SHAFT SET

11 456 ₽/шт

47

09139-06153

БОЛТ

1 520 ₽/шт

48

09139-06159

SCREW(6X20)

129 ₽/шт

49

09139-06159

SCREW(6X20)

129 ₽/шт

50

09280-62004

O RING(D:1.9,ID:61.5)

13 330 ₽/шт

51

09280-26005

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

194 ₽/шт

52

08331-41349

CIRCLIP

1 370 ₽/шт
