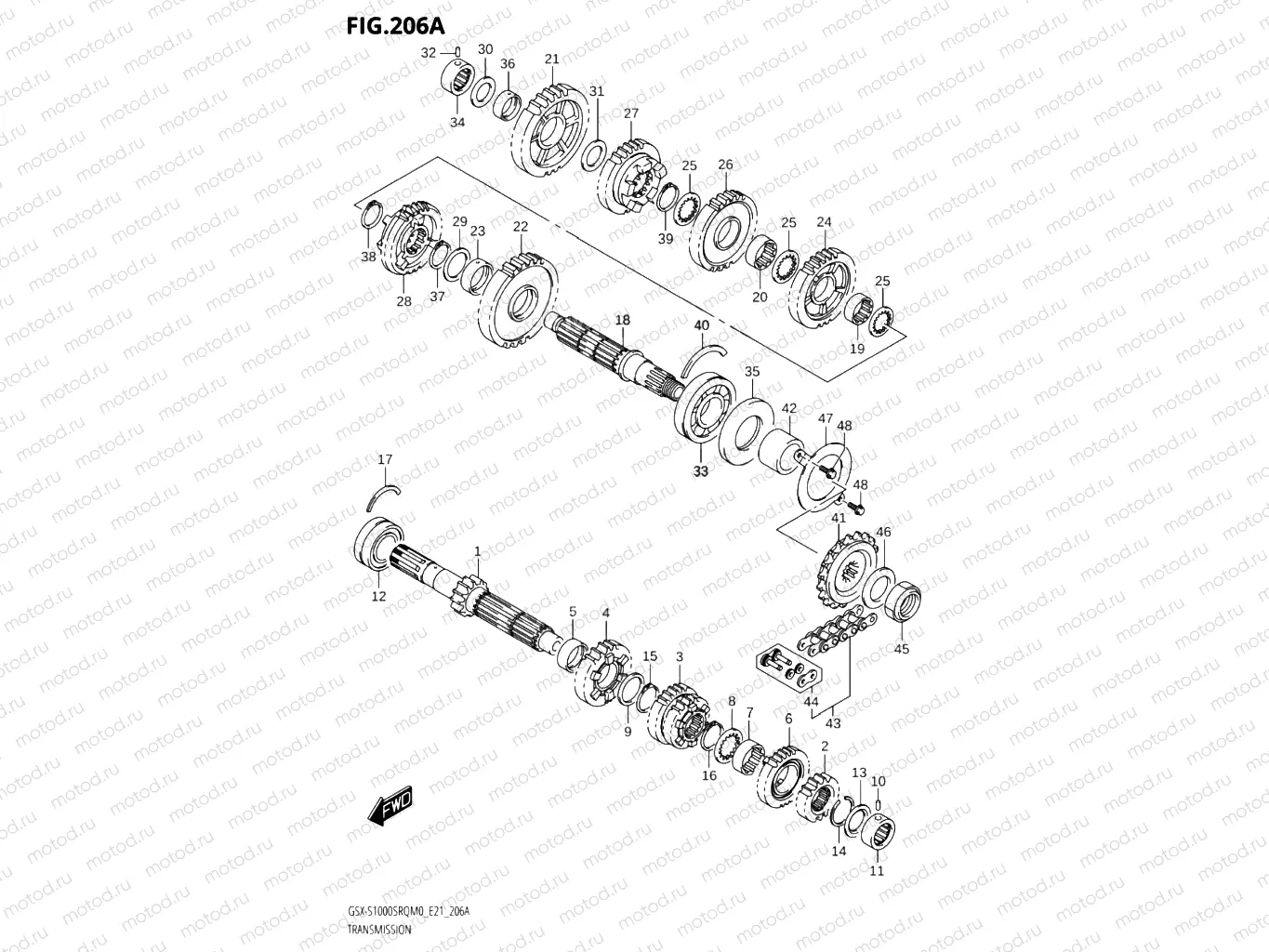

206A - TRANSMISSION

206A - TRANSMISSION

Например: 24120-40F40

1

24120-40F40

Shaft,cntr

2

24221-40F30

GEAR,2ND DRIVE

6 178 ₽/шт

3

24231-40F50

Gear,3rd.dr

4

24251-40F50

Gear,5th

5

24252-35F00

BUSH,5TH DRIVE GEAR

1 259 ₽/шт

6

24261-40F40

Gear,6th drive

7

24262-35F10

BUSH,6TH DRIVE GEAR

1 435 ₽/шт

8

09167-27003

ШАЙБА

255 ₽/шт

9

09181-27014

SHIM(27X36X2.5)

306 ₽/шт

10

09261-06003

ШТИФТ

119 ₽/шт

11

09263-20087

BEARING(20X34X13.5)

2 210 ₽/шт

12

09267-25013

BEARING(25X52X20.6)

4 361 ₽/шт

13

09285-20006

Сальник

598 ₽/шт

14

09380-27004

КЛИПС

187 ₽/шт

15

09380-27006

КЛИПС

187 ₽/шт

16

09380-27006

КЛИПС

187 ₽/шт

17

09390-58001

ПОЛУКОЛЬЦО GV 2.0

1 720 ₽/шт

18

24131-40F20

Shaft,drive

19

24332-46H00

BUSH,3RD DRIVEN GEAR

1 947 ₽/шт

20

24332-46H00

BUSH,3RD DRIVEN GEAR

1 947 ₽/шт

21

24311-40F30

GEAR,1ST DRIVEN

8 837 ₽/шт

22

24321-40F50

GEAR,2ND DRIVEN

7 468 ₽/шт

23

24322-02F01

BUSH,2ND DRIVEN GEAR

1 079 ₽/шт

24

24331-40F30

GEAR,3RD DRIVEN

8 837 ₽/шт

25

24333-02F00

ШАЙБА КПП

272 ₽/шт

26

24341-40F20

GEAR,4TH DRIVEN

9 032 ₽/шт

27

24351-40F40

GEAR,5TH DRIVEN

8 837 ₽/шт

28

24361-40F30

GEAR,6TH DRIVEN

9 032 ₽/шт

29

09160-27008

Шайба

238 ₽/шт

30

09181-20251

Шайба (T:1.0)

172 ₽/шт

31

09181-22223

SHIM(22X34X1)

194 ₽/шт

32

09261-06003

ШТИФТ

119 ₽/шт

33

09262-28025

ПОДШИПНИК

6 622 ₽/шт

34

09263-20087

BEARING(20X34X13.5)

2 210 ₽/шт

35

09283-36008

Сальник (36X70X6)

1 276 ₽/шт

36

09263-22068

BEARING(22X26X11)

590 ₽/шт

37

09380-27006

КЛИПС

187 ₽/шт

38

09380-27006

КЛИПС

187 ₽/шт

39

09380-27006

КЛИПС

187 ₽/шт

40

09390-70001

C RING

4 690 ₽/шт

41

27511-20A21

Sprocket,engine

42

27531-04K00

SPACER,ENGINE SPROCKET

1 623 ₽/шт

43

27600-33E50-116

CHAIN ASSY,DRIVE(RK525GSH)

27 370 ₽/шт

44

27620-33E50

JOINT SET,DRIVE CHAIN(RK)

1 099 ₽/шт

45

09159-20004

Гайка

759 ₽/шт

46

09160-25066

ШАЙБА

4 300 ₽/шт

47

24751-04K00

RETAINER,DRIVE SHAFT OIL SEAL

473 ₽/шт

48

09103-06236

БОЛТ

1 600 ₽/шт
