Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI DL 1000 V-Strom SUZUKI DL1000A L5 V-Strom (E99) SUZUKI 201A - CLUTCH

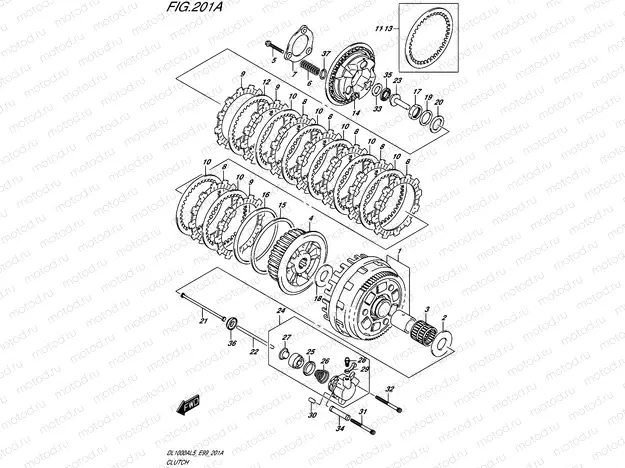

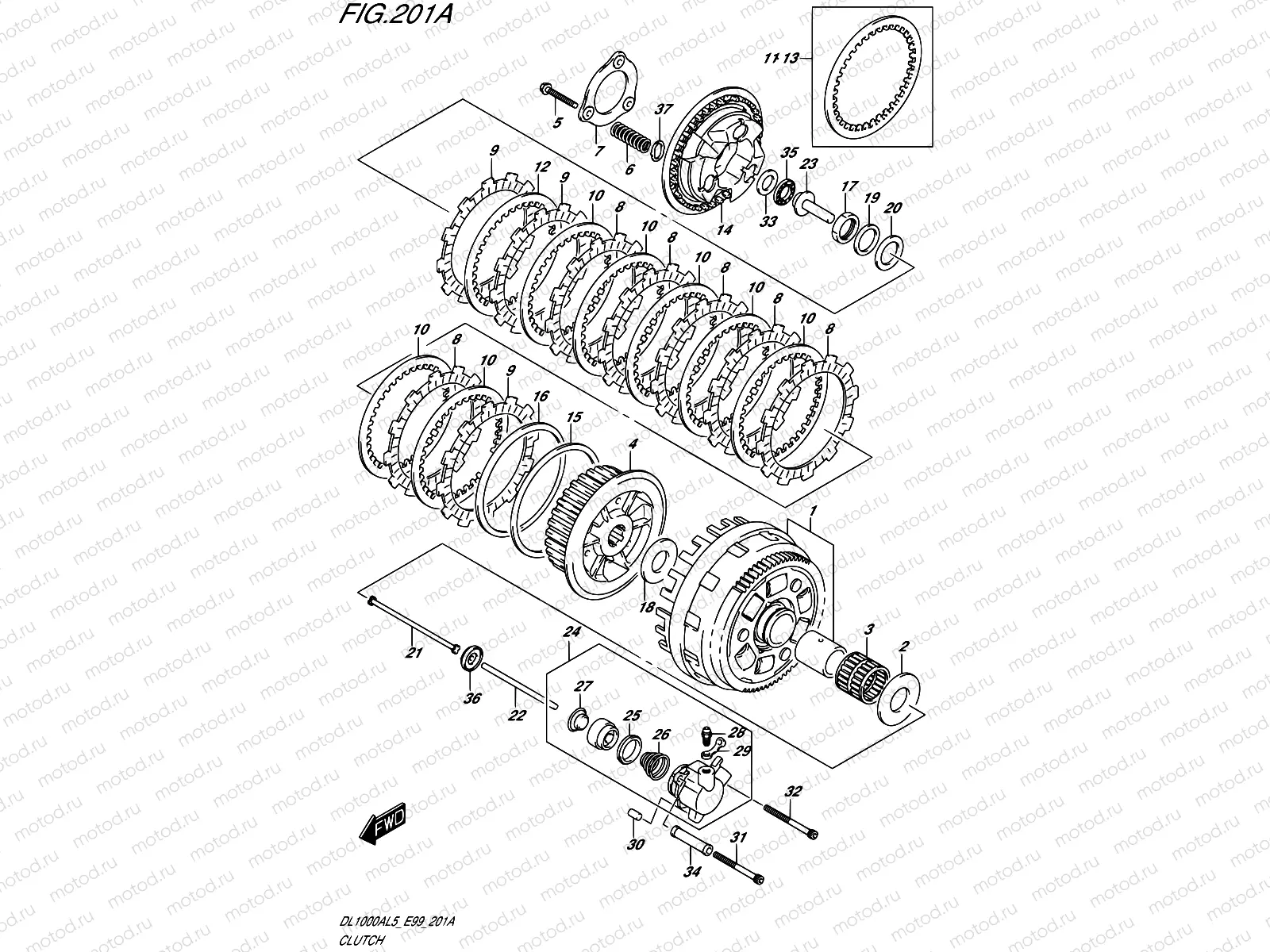

201A - CLUTCH

201A - CLUTCH

Например: 21200-31Y11

1

21200-31Y11

GEAR ASSY,PRIMARY DRIVEN

44 506 ₽/шт

2

09160-25074

Шайба

4 420 ₽/шт

3

09263-35013

ПОДШИПНИК

2 584 ₽/шт

4

21411-31J00

HUB,CLUTCH SLEEVE

11 339 ₽/шт

5

21412-31J00

BOLT,CLUTCH SPRING

170 ₽/шт

6

21413-31J00

SPRING,CLUTCH

473 ₽/шт

7

21414-31J00

PLATE,STOPPER

1 048 ₽/шт

8

21441-31J00

PLATE,CLUTCH DRIVE NO.1

1 767 ₽/шт

9

21442-31J00

PLATE,CLUTCH DRIVE NO.2

1 767 ₽/шт

10

21451-24F00

Диск сцепления стальной (T:2.0)

1 260 ₽/шт

11

21451-24F10

ДИСК КПП

1 260 ₽/шт

12

21452-31J00

ДИСК ФРИКЦИОННЫЙ

852 ₽/шт

13

21451-31J00

PLATE,CLUTCH DRIVEN NO.3

852 ₽/шт

14

21462-31J00

DISC,CLUTCH PRESSURE

7 077 ₽/шт

15

21471-24F00

SEAT,WAVE WASHER

694 ₽/шт

16

21472-24F00

ШАЙБА

1 227 ₽/шт

17

09159-24010

ШАЙБА

824 ₽/шт

18

09160-25056

WASHER

727 ₽/шт

19

09164-24008

ШАЙБА ФОРСУНКИ

2 310 ₽/шт

20

09181-25223

SHIM(25X38X1)

194 ₽/шт

21

23110-27A00

ROD,CLUTCH

2 210 ₽/шт

22

23111-26D00

ШТОК СЦЕПЛЕНИЯ

775 ₽/шт

23

23121-31E00

PIECE,CLUTCH PUSH

1 377 ₽/шт

24

23160-06G21

Cylinder,Clutch Release (dust cover excluded)

8 479 ₽/шт

25

23163-06B00

CUP

505 ₽/шт

26

23164-05A00

Пружина

289 ₽/шт

27

23166-06G00

Пыльник

1 190 ₽/шт

28

59121-01A00

BLEEDER

1 226 ₽/шт

29

59122-01A00

CAP,BLEEDER

187 ₽/шт

30

04221-08149

Стопор

1 170 ₽/шт

31

07130-0665A

BOLT

2 070 ₽/шт

32

07130-0670A

BOLT

2 070 ₽/шт

33

09160-15045

Шайба

211 ₽/шт

34

23171-06G00

SPACER,CL RLSE CYL

476 ₽/шт

35

09263-15003

Подшипник 15X28X2

532 ₽/шт

36

09283-06008

SEAL,OIL(6X34X10.5)

1 227 ₽/шт

37

21415-31J00

SEAT,CLUTCH SPRING

837 ₽/шт
