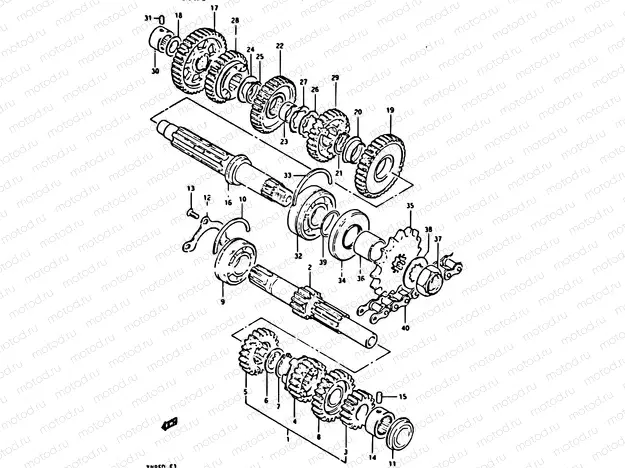

20 - TRANSMISSION

20 - TRANSMISSION

Например: 24120-09302

1

24120-09302

Countershaft assy

2

24121-09302

.countershaft (nt:12)

3

24221-09301

.gear, 2nd drive (nt:16)

4

24231-09304

.gear, 3rd drive (nt:19)

5

24240-09302

.gear, 4th drive (nt:21)

6

09167-25012

Шайба

1 840 ₽/шт

7

09380-25010

КЛИПС

210 ₽/шт

8

24250-09304

.gear, 5th drive (nt:23)

9

09262-25051

Подшипник

4 441 ₽/шт

10

09390-62012

C RING

4 460 ₽/шт

11

09241-34003

Plug, countershaft lh

12

24741-45000

RETAINER,CNTR SHAFT BEARING

567 ₽/шт

13

02122-0616B

Болт

85 ₽/шт

14

09263-20044

Bearing, lh

15

04221-07129

PIN

1 060 ₽/шт

16

24131-09301

Driveshaft

17

24310-09301

Gear, 1st driven (nt:38)

18

09181-20223

SHIM(20X32X1)

1 720 ₽/шт

19

24321-09301

Gear, 2nd driven (nt:35)

20

09301-28001

BUSH(28X32X2)

14 700 ₽/шт

21

08331-31289

CIRCLIP

1 250 ₽/шт

22

24331-09302

Gear, 3rd driven (nt:32)

23

24332-49000

BUSH,3RD DRIVEN GEAR

1 189 ₽/шт

24

09167-28001

WASHER,LOCK

2 310 ₽/шт

25

08331-31289

CIRCLIP

1 250 ₽/шт

26

09167-28002

Пластина замка

2 310 ₽/шт

27

09169-28001

Пластина замка

1 840 ₽/шт

28

24341-09300

Gear, 4th driven (nt:29)

29

24351-09302

Gear, 5th driven (nt:27)

30

09263-20040

ПОДШИПНИК ШАРИКОВЫЙ

4 505 ₽/шт

31

04221-07129

PIN

1 060 ₽/шт

32

09262-25105

Подшипник

5 653 ₽/шт

33

09390-62012

C RING

4 460 ₽/шт

34

09283-32012

SEAL,OIL(32X62X7)

3 796 ₽/шт

35

27511-44000

Sprocket,engine

36

09180-25060

Spacer

37

09159-20004

Гайка

759 ₽/шт

38

09167-25019

Шайба

194 ₽/шт

39

09280-25001

O RING(D:1,ID:24.5)

1 250 ₽/шт

40

27600-09330

Chain, drive (112le)
