Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSF 650 Bandit SUZUKI GSF650 K6 Bandit SUZUKI (VIN: JS1B51121) 20 - TRANSMISSION

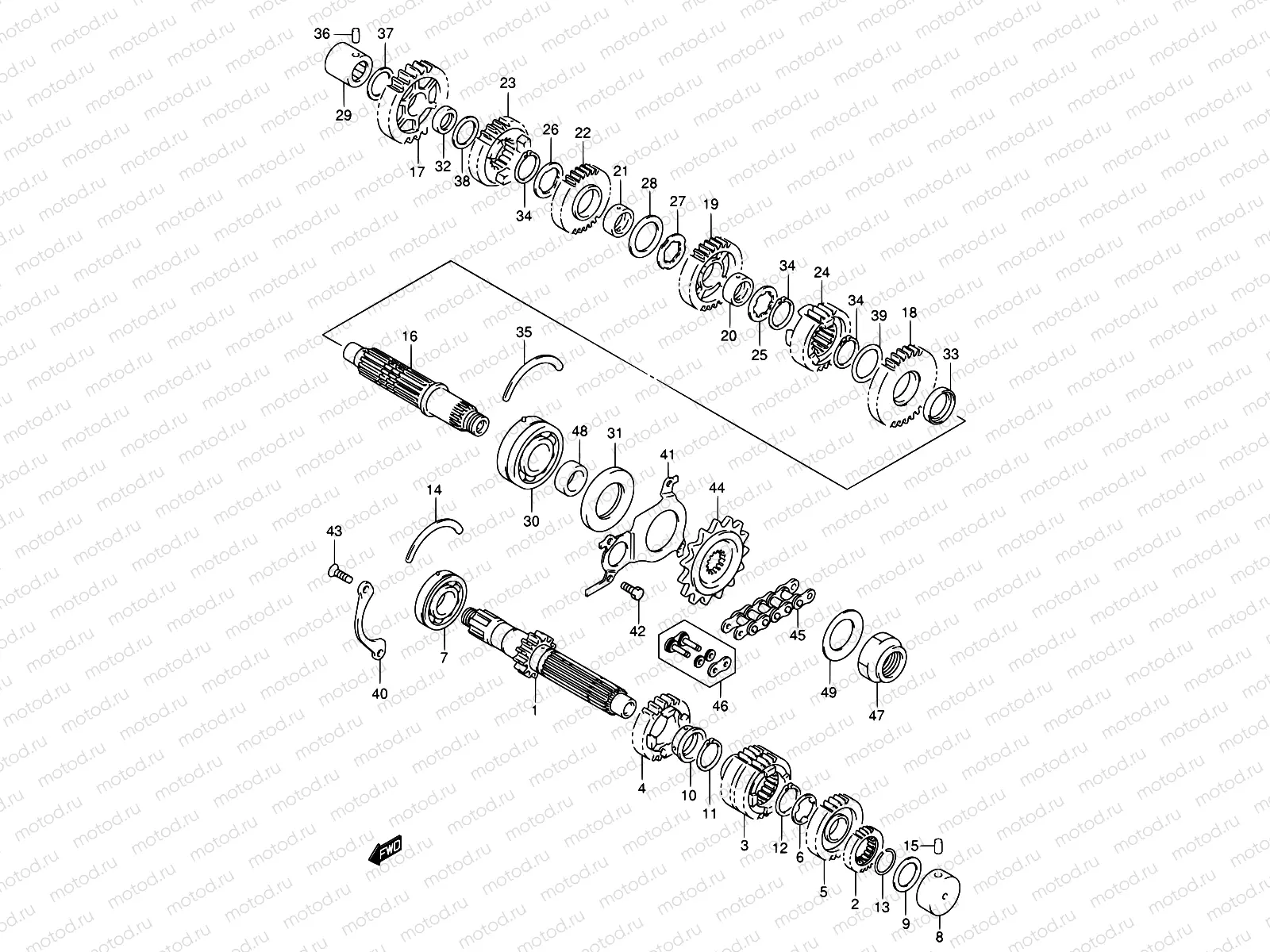

20 - TRANSMISSION

20 - TRANSMISSION

Например: 24121-19C01

1

24121-19C01

SHAFT,COUNTER(NT:12)

16 657 ₽/шт

2

24221-27A01

GEAR,2ND DRIVE(NT:16)

14 280 ₽/шт

3

24231-27A00

GEAR,3RD & 4TH DRIVE(NT:17/20)

12 629 ₽/шт

4

24251-27A01

Gear,5th drive

5

24261-17C02

GEAR,6TH DRIVE(NT:21)

17 170 ₽/шт

6

09167-25012

Шайба

1 840 ₽/шт

7

09262-25105

Подшипник

5 653 ₽/шт

8

09263-20119

Bearing(20X34X17.5)

5 474 ₽/шт

9

09285-20006

Сальник

598 ₽/шт

10

24322-19F00

Втулка

1 193 ₽/шт

11

09380-25003

КЛИПС

291 ₽/шт

12

09380-25003

КЛИПС

291 ₽/шт

13

09380-25013

CIRCLIP

2 070 ₽/шт

14

09390-62012

C RING

4 460 ₽/шт

15

04221-07129

PIN

1 060 ₽/шт

16

24100-20811

SHAFT SET,DRIVE

17

24311-19C10

GEAR,1ST DRIVEN(NT:37)

8 524 ₽/шт

18

24321-20C00

GEAR,2ND DRIVEN(NT:33)

9 071 ₽/шт

19

24331-27A00

GEAR,3RD DRIVEN(NT:28)

18 700 ₽/шт

20

24332-27A00

BUSH

1 189 ₽/шт

21

24332-27A00

BUSH

1 189 ₽/шт

22

24341-27A01

GEAR,4TH DRIVEN(NT:28)

15 710 ₽/шт

23

24351-27A00

GEAR,5TH DRIVEN(NT:27)

9 384 ₽/шт

24

24361-20C01

GEAR,6TH DRIVEN(NT:23)

9 775 ₽/шт

25

09167-28001

WASHER,LOCK

2 310 ₽/шт

26

09167-28001

WASHER,LOCK

2 310 ₽/шт

27

09167-28002

Пластина замка

2 310 ₽/шт

28

09169-28001

Пластина замка

1 840 ₽/шт

29

09263-20040

ПОДШИПНИК ШАРИКОВЫЙ

4 505 ₽/шт

30

09267-25011

BEARING(25X62X21.6)

12 356 ₽/шт

31

09283-34005

Уплотнение вала

2 720 ₽/шт

32

09300-22008

Втулка

791 ₽/шт

33

09300-28003

BUSH(28X32X9.5)

12 630 ₽/шт

34

08331-31289

CIRCLIP

1 250 ₽/шт

35

09390-62012

C RING

4 460 ₽/шт

36

04221-07209

ШТИФТ

102 ₽/шт

37

09181-20251

Шайба (T:1.0)

172 ₽/шт

38

09181-22223

SHIM(22X34X1)

194 ₽/шт

39

09181-28195

Шайба

2 310 ₽/шт

40

24741-27A00

RETAINER,CNTR SHAFT BEARING

782 ₽/шт

41

24751-40C01

RETAINER,DRIVE SHAFT OIL SEAL

587 ₽/шт

42

01500-0612B

Болт

1 210 ₽/шт

43

09126-06011

SCREW,6X12

81 ₽/шт

44

27510-17C10

SPROCKET,ENGINE(NT:15)

8 993 ₽/шт

45

27600-16G20-112

CHAIN,DRIVE(112LE)

31 671 ₽/шт

45

27600-16G20-116

CHAIN,DRIVE(112LE)

33 235 ₽/шт

46

27620-16G20

JOINT SET,CHAIN

1 455 ₽/шт

47

09159-20004

Гайка

759 ₽/шт

48

09180-25091

Прокладка

12 630 ₽/шт

49

09181-25268

Шайба

194 ₽/шт
