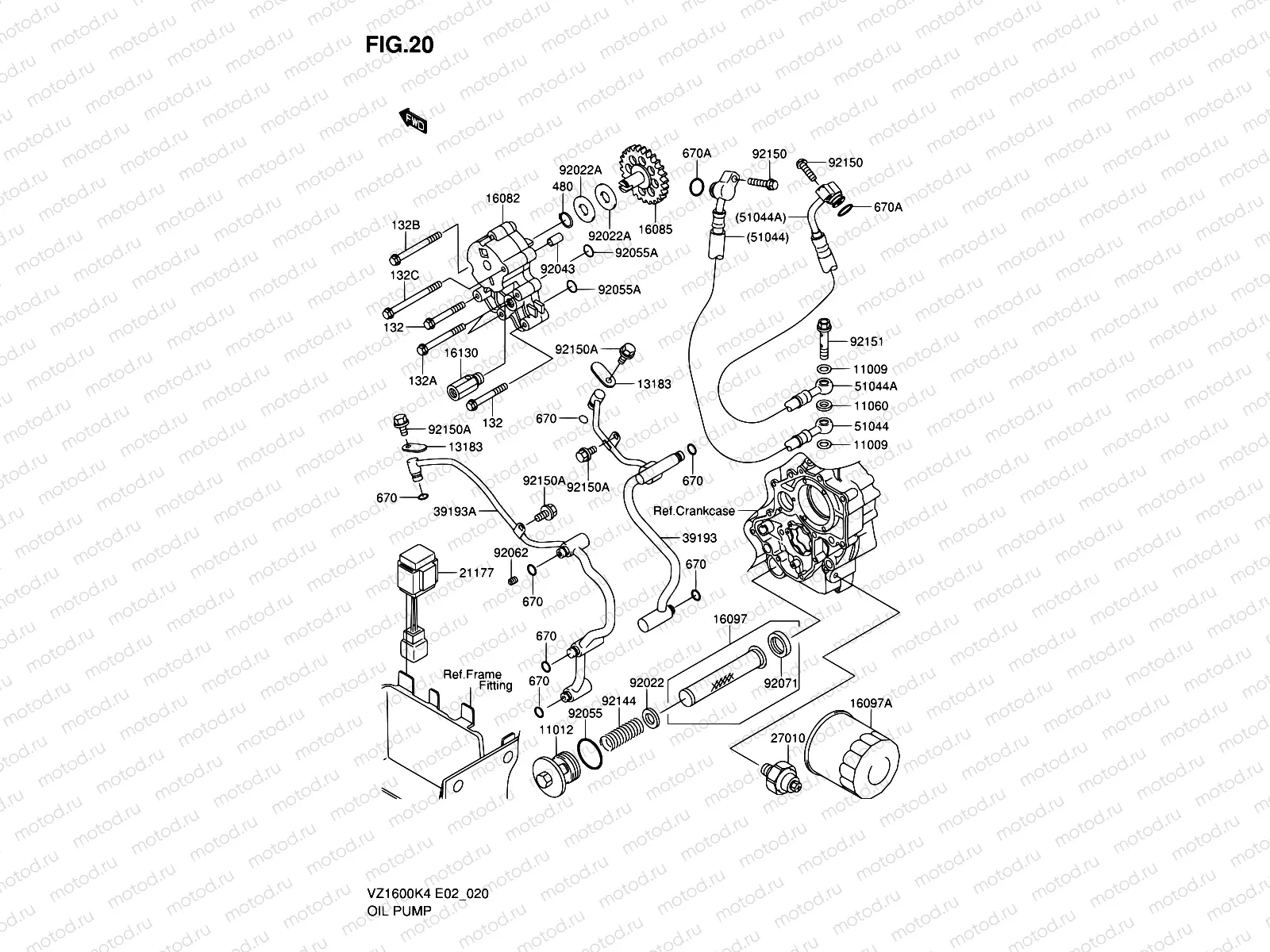

20 - OIL PUMP

20 - OIL PUMP
Например: KK132-G0645
132
KK132-G0645
BOLT-FLANGED-SMALL
132
K132B-A0655
Vis
132
K132B-A0660
Болт малый
203 ₽/шт
132
K132B-A0670
480
KK480-J1200
Circlip,type c
670
KK670-D1508
O-Ring (8 mm)
670
KK670-D2010
O RING
4 220 ₽/шт
11009
K1100-91344
Прокладка маслянной трубы,8.2X14X1.0
2 110 ₽/шт
11012
K1101-21461
CAP,OIL FILTER
5 196 ₽/шт
11060
K1106-01739
Gasket,pipe joi
13183
K1318-31071
Plate
16082
K1608-21155
Pompe à huile
16085
K1608-51345
Gear,oil pump,3
16097
K1609-70008
FILTER ASSY,OIL
2 796 ₽/шт
16097
K1609-71058
Фильтр масляный
2 170 ₽/шт
16130
K1613-01059
Valve-assy-reli
21177
K2117-71058
CONTROLLER,OIL LAMP
7 898 ₽/шт
27010
K2701-01360
Switch,oil pres
39193
K3919-31072
Pipe-oil
39193
K3919-31071
Pipe-oil
51044
K5104-40012
Tube-assy,rr
51044
K5104-40011
Tube-assy,fr
92022
K9202-21852
Washer,12x27.5x
92022
K9202-21547
Washer,20.1x28x
92043
K9204-31263
Штифт,6.2X8X14
900 ₽/шт
92055
K9205-51358
Ring-o,35.2x2.4
92055
K9205-51373
Ring-o,13.2x2.4
92062
K9206-21078
Nozzle,6x8,gree
92071
KK920-71100
Grommet,oil str
92144
K9214-41106
Spring
92150
K9215-01779
Болт 6X25
352 ₽/шт
92150
KK132-Y0612
BOLT-FLANGED-SMALL
92151
K9215-11355
Bolt,8x35
