Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX-R 1000 SUZUKI GSX-R1000Z L4 (E03,E28) SUZUKI 20 - MUFFLER (GSX-R1000ZL4 E28)

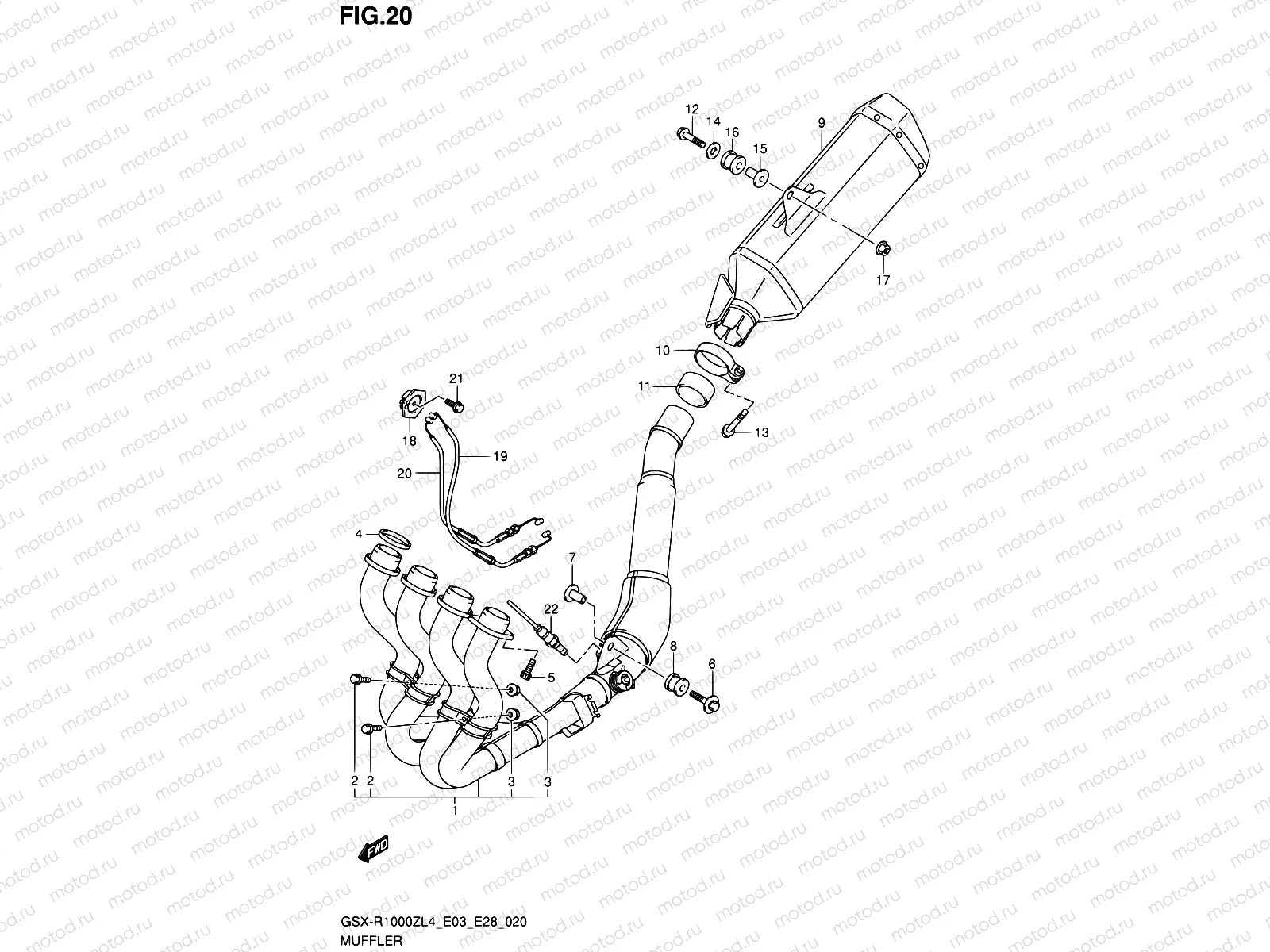

20 - MUFFLER (GSX-R1000ZL4 E28)

20 - MUFFLER (GSX-R1000ZL4 E28)

Например: 14100-47H20

1

14100-47H20

Pipe, exhaust

2

01547-0635A

БОЛТ

97 ₽/шт

3

08316-1006A

Гайка

85 ₽/шт

4

14181-22D01

Прокладка трубы

646 ₽/шт

5

07130-0825A

БОЛТ

1 840 ₽/шт

6

09118-08152-A05

BOLT(8X45)

3 170 ₽/шт

7

09180-08152

SPACER(8.6X12X24.2)

291 ₽/шт

8

09320-12077

CUSHION

6 920 ₽/шт

9

14310-47H70-H01

Body, muffler

10

14459-47H00

CLAMP,MUFFLER CONNECTOR

1 236 ₽/шт

11

14771-24F01

КОЛЬЦО СОЕДЕНИТЕЛЬНОЕ КОЛЛЕКТОРА ВЫПУСКНОГО, МЕТАЛ

1 541 ₽/шт

12

09103-08358

БОЛТ

605 ₽/шт

13

09103-08392

BOLT(8X40)

146 ₽/шт

14

09160-08142

Шайба

1 600 ₽/шт

15

09180-08152

SPACER(8.6X12X24.2)

291 ₽/шт

16

09320-12048

САЙЛЕНТБЛОК

469 ₽/шт

17

08361-2508A

Гайка

337 ₽/шт

18

11269-18G01

PULLEY,CONTROLLER

1 020 ₽/шт

19

11276-47H10

CABLE,EXHAUST VALVE NO.1

6 545 ₽/шт

20

11277-47H10

CABLE,EXHAUST VALVE NO.2

6 545 ₽/шт

21

01547-0516A

Болт

1 250 ₽/шт

22

18213-18H10

SENSOR,OXYGEN

25 806 ₽/шт
