Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI LS 650 Savage SUZUKI LS650F G Savage (E02,E04,E15,E16,E17,E18,E21,E22,E24,E25,E34,E39) SUZUKI 20 - ELECTRICAL

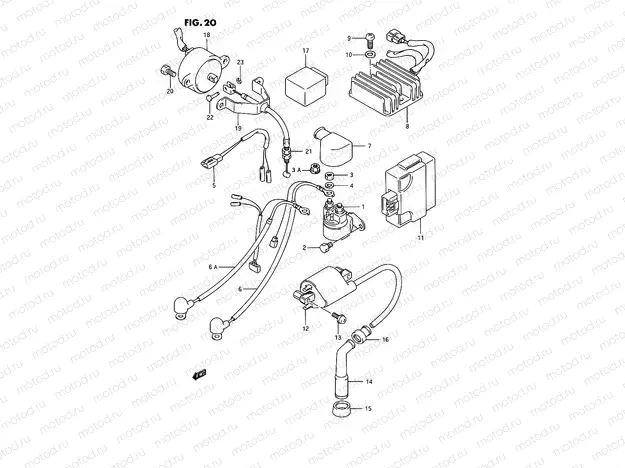

20 - ELECTRICAL

20 - ELECTRICAL

Например: 31800-49100

1

31800-49100

Реле стартера

8 245 ₽/шт

2

01500-0610B

Болт

85 ₽/шт

3

08310-0006B

Гайка

81 ₽/шт

3

08361-3506A

ГАЙКА

82 ₽/шт

4

08321-0106A

Шайба

81 ₽/шт

5

36852-24B00

Wire, starter relay lead

6

33850-24B00

Wire, starting motor

7

33624-49401

CAP,STARTER RELAY TERMINAL

360 ₽/шт

8

02162-0620C

Болт

85 ₽/шт

9

02112-0616A

Болт

81 ₽/шт

10

08322-0106A

Шайба

81 ₽/шт

11

32900-24B00

Igniter assy

12

33410-24B00

Катушка зажигания

8 758 ₽/шт

13

02112-0512A

Болт

85 ₽/шт

14

33510-45010

Колпачок свечи зажигания

2 988 ₽/шт

15

33541-47D00

Уплотнение

452 ₽/шт

16

33542-38B00

Уплотнение

162 ₽/шт

17

32910-24B01

Control unit

18

33970-24B00

SOLENOID ASSY,DECOMP

20 528 ₽/шт

19

33971-24B00

RACKET,DECOMP SOLENOID

708 ₽/шт

20

01500-0616B

Болт

1 330 ₽/шт

21

58900-24B01

CABLE ASSY,DECOMP

1 208 ₽/шт

22

09209-04020

PIN(4X12.5)

3 440 ₽/шт

23

08332-1103A

E RING

1 060 ₽/шт
