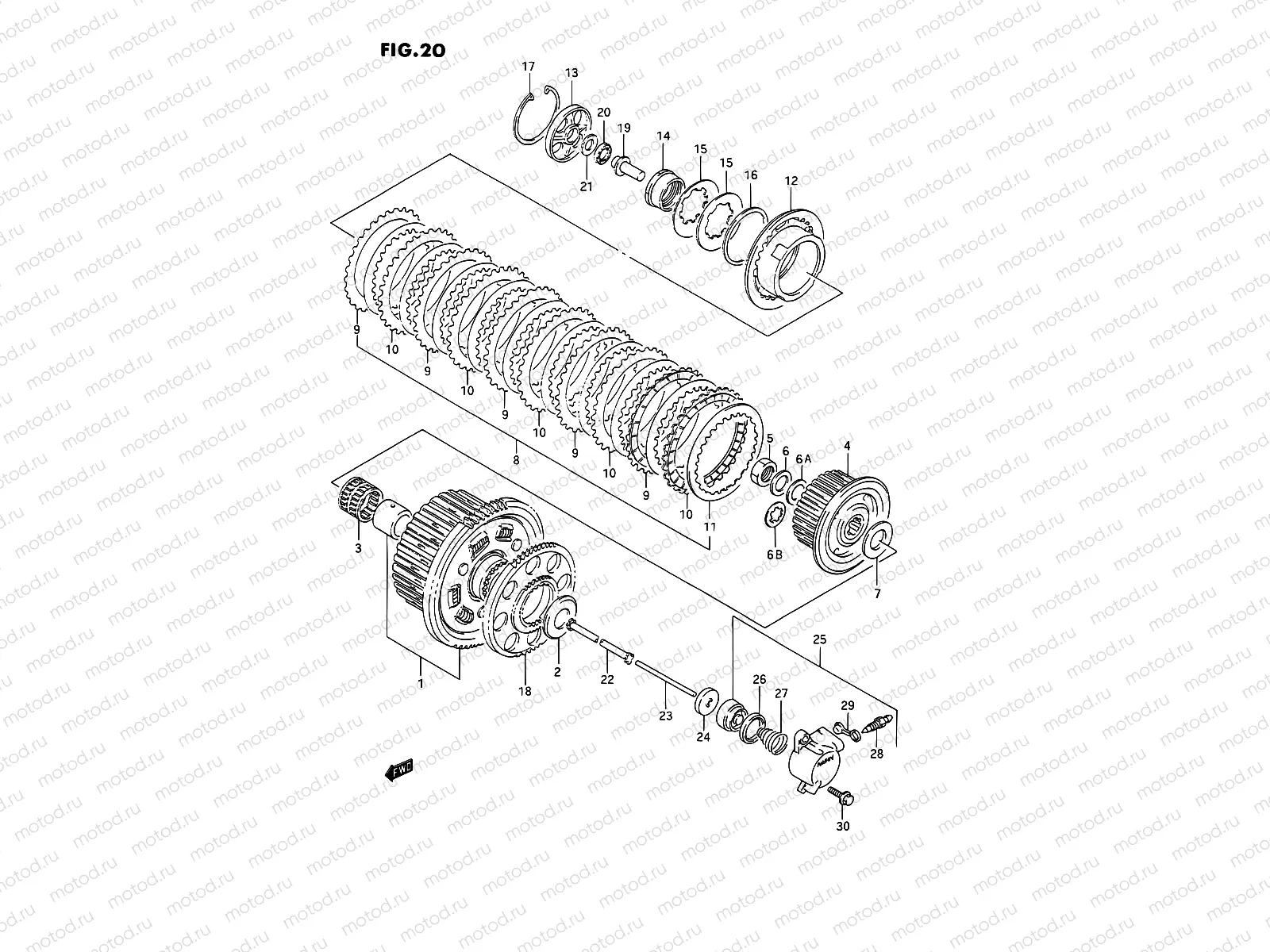

20 - CLUTCH

20 - CLUTCH

Например: 21200-26820

1

21200-26820

Gear, primary driven (nt:74)

2

09160-25071

Шайба

8 090 ₽/шт

3

09263-35017

BEARING(35X40X35.8)

10 030 ₽/шт

4

21410-40C01

Hub,clutch slee

5

09140-24014

Гайка

264 ₽/шт

6

09164-24006

ШАЙБА ФОРСУНКИ

226 ₽/шт

6

09167-25024

Rondelle (25.5x36x0.5)

7

09160-25056

WASHER

727 ₽/шт

8

21441-48B00

PLATE,CLUTCH DRIVE NO.1

7 480 ₽/шт

8

21441-06B01

PLATE,CLUTCH DRIVE

2 072 ₽/шт

8

21451-48B00

Диск сцепления

1 071 ₽/шт

9

21441-06B01

PLATE,CLUTCH DRIVE

2 072 ₽/шт

10

21441-48B00

PLATE,CLUTCH DRIVE NO.1

7 480 ₽/шт

11

21451-48B00

Диск сцепления

1 071 ₽/шт

12

21462-40C02

Disc,clpress

13

21463-40C01

LIFTER,CLUTCH PRESSURE DISC

7 395 ₽/шт

14

21611-40C01

Holder clutch

15

09164-47001

Шайба

2 261 ₽/шт

16

21623-40C00

SEAT,CLUTCH SPRING

571 ₽/шт

17

09381-84003

КЛИПС

6 530 ₽/шт

18

22721-26D01

Gear, alternator drive (nt:37/69)

19

23121-31E00

PIECE,CLUTCH PUSH

1 377 ₽/шт

20

09263-15003

Подшипник 15X28X2

532 ₽/шт

21

09160-15045

Шайба

211 ₽/шт

22

23110-38B00

Штанга муфты

2 100 ₽/шт

23

23111-26D00

ШТОК СЦЕПЛЕНИЯ

775 ₽/шт

24

09285-06015

САЛЬНИК УПЛОТНИТЕЛЬНЫЙ

840 ₽/шт

25

23160-26D01

CYLINDER,CLUTCH RELEASE

12 973 ₽/шт

26

23163-06B00

CUP

505 ₽/шт

27

23164-05A00

Пружина

289 ₽/шт

28

59121-01A00

BLEEDER

1 226 ₽/шт

29

59122-01A00

CAP,BLEEDER

187 ₽/шт

30

01550-08257

БОЛТ

101 ₽/шт
